Product Description

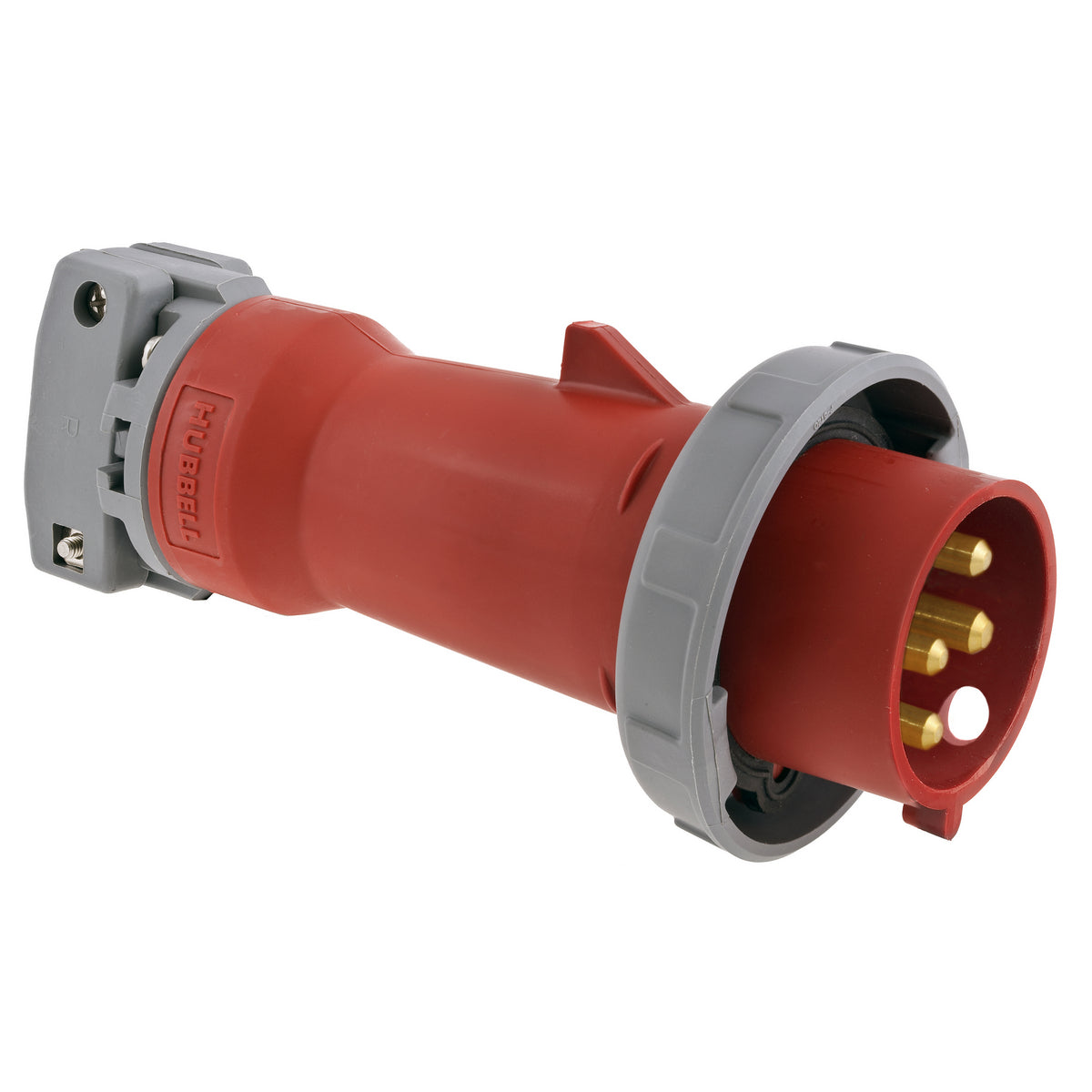

The Hubbell HBL420P7W is a wiring device designed for industrial applications. This product is a three-phase grounding male non-NEMA portable standard watertight cord mount pin and sleeve plug. It operates at four hundred eighty volts and supports a current of twenty amps. The device is suitable for applications that require high ampacity connections.
- Rated for 480 VAC and 20 A
- Features durable composite construction
- Wide temperature range of -40 to 75 degrees Celsius
Product Highlights
This plug is ideal for use in commercial and industrial settings where reliable power connections are necessary.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
UPC: 78358540437
Technical Specifications
-
Type: 3-Phase Grounding Male Non-NEMA Portable Standard Watertight Cord Mount
-
Voltage Rating: 480 VAC
-
Amperage Rating: 20 A
-
Number of Poles: 3
-
Number of Wires: 4
-
Temperature Rating: -40 to 75 degrees Celsius
-
Material: Composite
-
Dimensions: 3.19 inches Diameter x 7 inches Length
-
Standards/Approvals: RoHS Compliant, IEC 309-1/309-2, UL 498 File No. E146032, CSA C22.2 File No. 182.1, IEC 60309-1
