Hubbell HBL420C7W Hub 3p4w 20a3ph 480v Body

Product Description

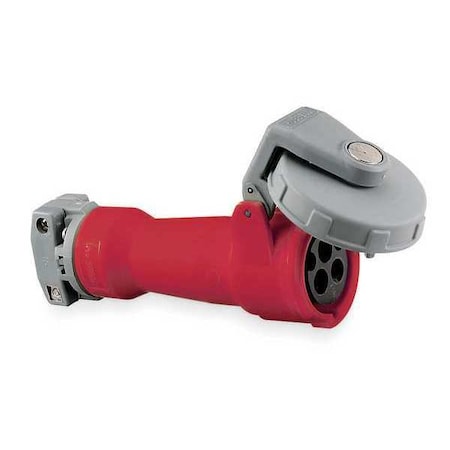

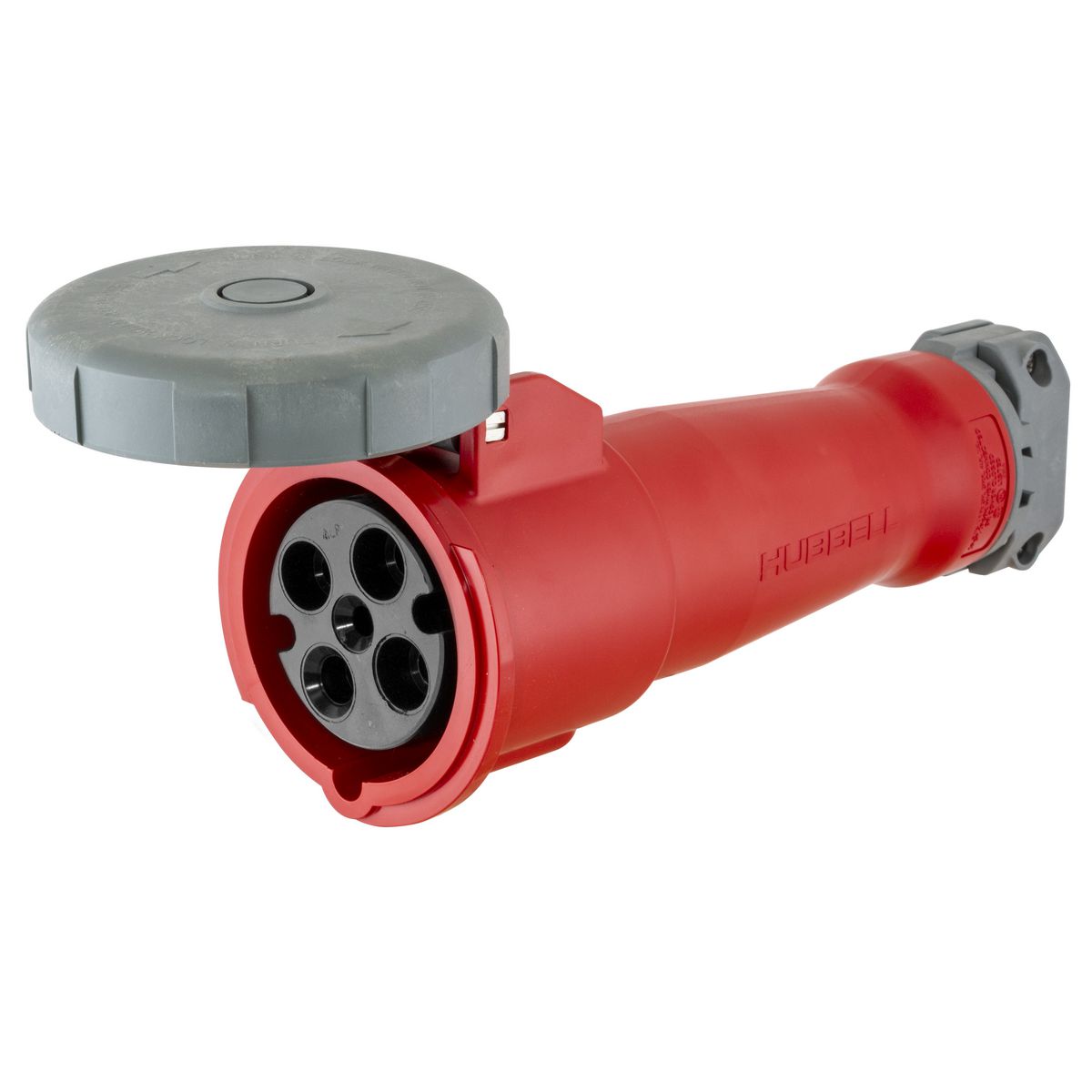

The HUBBELL HBL420C7W is a 3-pole, 4-wire, 20A, 480V watertight IEC pin and sleeve connector body. Constructed with a super tough insulated non-metallic housing and a self-closing gasketed cover. Designed with a watertight neoprene glad seal to prevent water ingress at the cable entrance.

• Color Coded Housings for Easy Identification
• Corrosion-Resistant Self-Closing Gasketed Cover
• Insulated Non-Metallic Housing

Product Highlights

This pin and sleeve connector features sequential contact engagement to prevent momentary over-voltage and a multi-contact spring to maintain high unit pressure on mating pins.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: HBL420C7W
• Country of Origin: United States

Technical Specifications

• Current Rating: 20 A
• Grounding Style: IEC
• Horsepower Rating: 10 hp
• IP Rating: IP68, IP69K
• Number of Poles: 3
• Number of Wires: 4
• Phase: Three
• Voltage Rating: 480V AC
• Cap Type: Spring-Loaded Cap
• Connection Orientation: Straight
• For Maximum Cable Diameter: 0.83 in
• For Minimum Cable Diameter: 0.33 in
• Grounding: Grounded
• Resistance Properties: Corrosion Resistant, Impact Resistant, Moisture Resistant, Watertight
• Switch Rated: No
• Body Material: Zytel 801 Nylon
• Housing Color: Red
• Overall Length: 7.57 in
• Reverse Service: No
• Housing Material: PBT
• Outside Diameter: 3.43 in
• Maximum Wire Size: 10 AWG
• Minimum Wire Size: 14 AWG
• Wire Connection Type: Screw Terminals
• Housing Material Type: Non-Metallic
• NEMA Enclosure Rating: 4X
• Compatible with Series: HBL Heavy Duty
• Housing Material Grade: Zytel 801
• Pin & Sleeve Standards: IEC 60309
• Power Indicating Light: No
• UL 94 Flammability Rating: V-0
• Maximum Operating Temperature: 75 Degrees C
• Minimum Operating Temperature: -40 Degrees C
• Body Material - Pin and Sleeve: Zytel 801 Nylon
• Amperage Rating: 20 A
• Application: High Ampacity Connections
• Brand: Hubbell Wiring Device-Kellems
• Conductor Range: #14AWG to #10AWG
• Connection: Pressure Screw Terminal
• Environmental Conditions: Watertight
• Insulation: Insulated Body
• Material: Composite
• Mounting: Cord Mounted
• NEMA Rating: Non-NEMA
• Number Of Conductors: 4-Wire Grounding
• Series: HBL Heavy Duty
• Size: Standard
• Special Features: Watertight
• Standard: UL 498, IEC 309-1 and 309-2
• Sub-Brand: Pin and Sleeve
• Temperature Rating: Maximum Continuous: 75 C; Minimum Continuous: -40 C w/o impact, -25 with impact
• Type: Watertight Connector Body
• Voltage: 480 Volt
• Enclosure: IP67
• Grade: Industrial
• Terminal Type: Pressure Screw
• OEM Brand Name: Hubbell Wiring Device-Kellems
• EU RoHS Indicator: Yes
• Style: Standard Service
• Connectivity: Pressure Terminal Screws
• Voltage Rating Description: 3 Phase 480 VAC
• Number Of Poles: 3-Pole
• Number Of Wires: 4-Wire
• Industry Standard(s): CSA Certified File LR280C UL Classified to IEC 60309-1 IEC 60309-2 UL Listed, File E146033
• Current: 20 Amp
• Operating Temperature: -40 degrees C
• Wire Count: 4
• Product Series: HBL Heavy Duty
• TC Connection: Pressure Screw Terminal
• Applications: High Ampacity Connections
• Conductor Size: 14-10 AWG
