Hubbell HBL420 RCPT 20A125V NEMA5-20R

Product Description

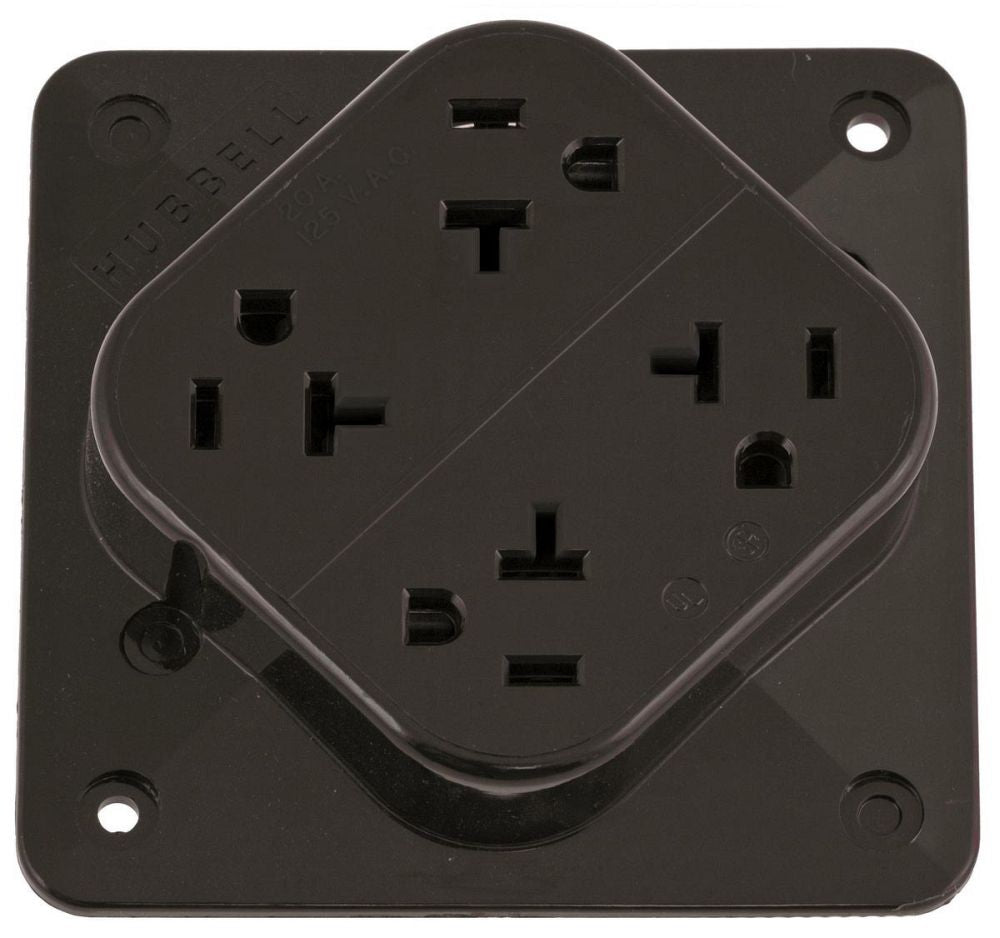

The Hubbell HBL420 is a straight blade receptacle designed for commercial and industrial use. This wiring device features a one-phase, four-in-one grounding standard screw mount with a voltage rating of one hundred twenty-five volts and a current rating of twenty amperes. It supports two poles and three wires, providing versatility for various applications.

• Durable polycarbonate construction
• Compatible with NEMA five-twenty R standards
• Temperature rating between negative forty to seventy-five degrees Celsius

Product Highlights

The Hubbell HBL420 is an essential component for indoor electrical connections, ensuring reliability and safety in operation.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78358501409

Technical Specifications

• Amperage Rating: 20 A
• Application: Dry Location and Indoor Applications
• Color: Brown
• Dimensions: 4.3 x 0.92 x 4.3 inches
• Grade: Commercial/Industrial
• Horsepower: 1 hp
• Manufacturer Part Number: HBL420
• Material: Polycarbonate
• NEMA Rating: 5-20R
• Number of Poles: 2
• Number of Wires: 3
• Standards/Approvals: RoHS Compliant, CSA Certified, NEMA WD1/WD5, UL 498, UL 94 V-2 Flammability Rating
• Temperature Rating: -40 to 75 deg C
• Terminal Type: Screw
• Type: 1-Phase 4-in-1 Grounding Standard Screw Mount
• Voltage Rating: 125 VAC
