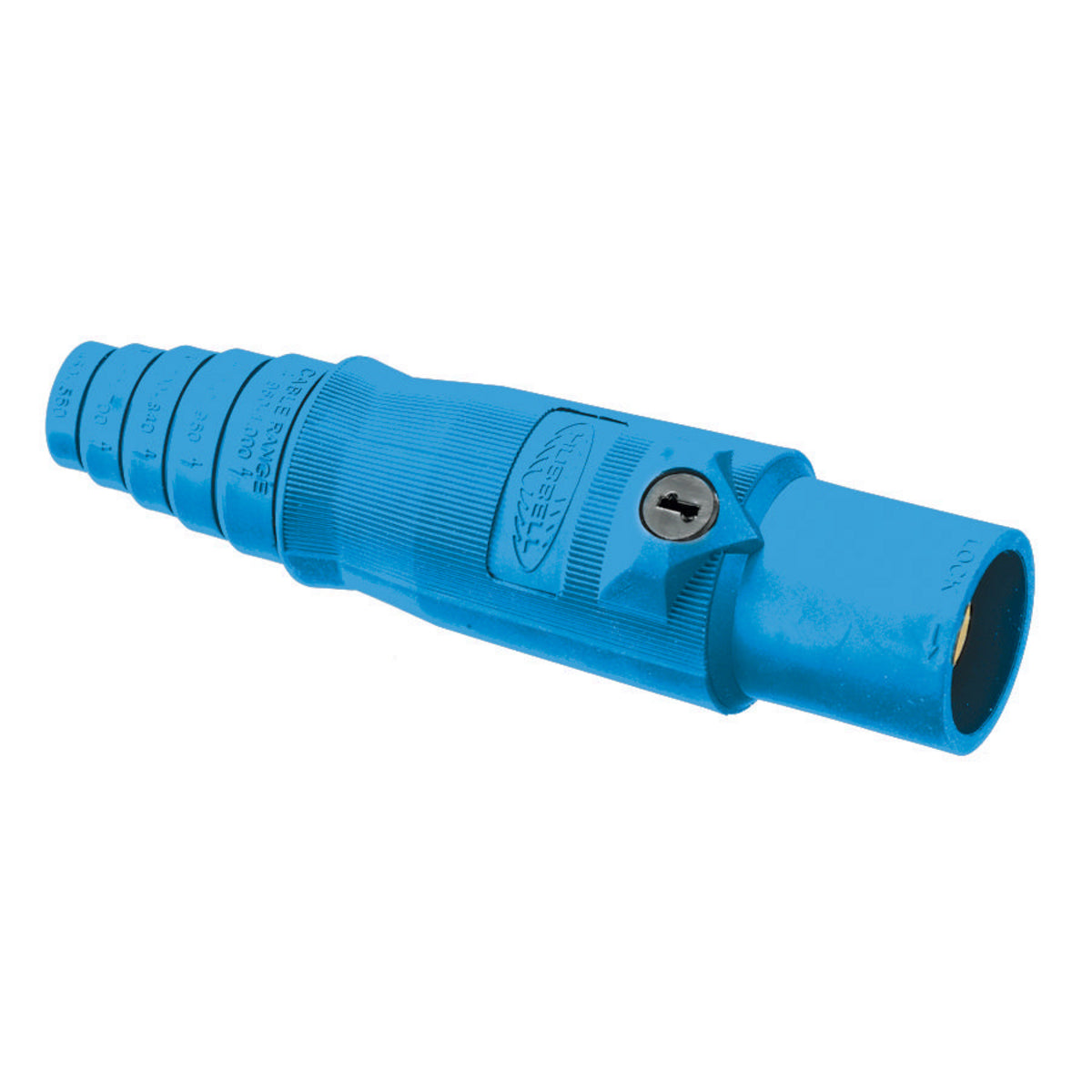

Hubbell HBL400MBL Single Pole Male Plug 400A 600V AC/DC

Product Description

The Hubbell HBL400MBL is a single pole male plug designed for heavy-duty applications. This device is capable of handling up to 400 amps and operates at 600 volts AC and 250 volts DC. It features a single conductor and double set screws to ensure a secure connection. The plug is made from composite material, providing durability in demanding environments.

• Insulgrip Style housing for better grip
• Non-Conductive Retaining Screw locks contacts securely
• Large Raised Alignment Arrow for easy mating

Product Highlights

This plug is suitable for industrial-grade connections in various high ampacity applications. It's ideal for temporary power distribution in entertainment settings, theme parks, and concert venues.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Manufacturer: Hubbell Wiring Device

Technical Specifications

• Catalog Number: HBL400MBL
• Amperage Rating: 400 Amps
• Voltage Rating: 600 VAC, 250 VDC
• Wattage: 240000 Watts
• Material: Composite
• Color: Blue
• Environmental Conditions: Indoor dry unless protected
• Connection Type: Pressure Screw Terminal
• Wire Size: 00-0000 AWG
• Standard Compliance: National Electric Code (NEC), UL, ANSI
• Size: Standard Sized
