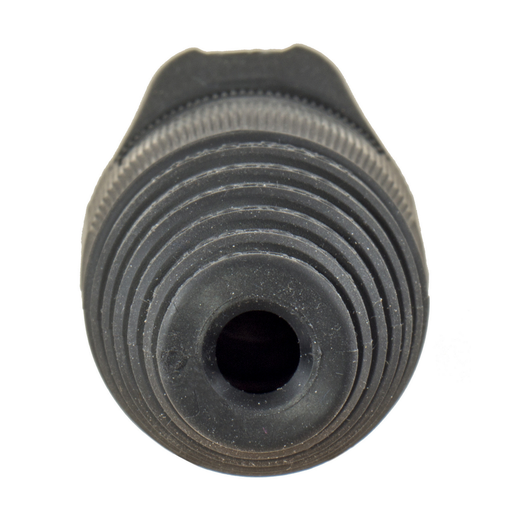

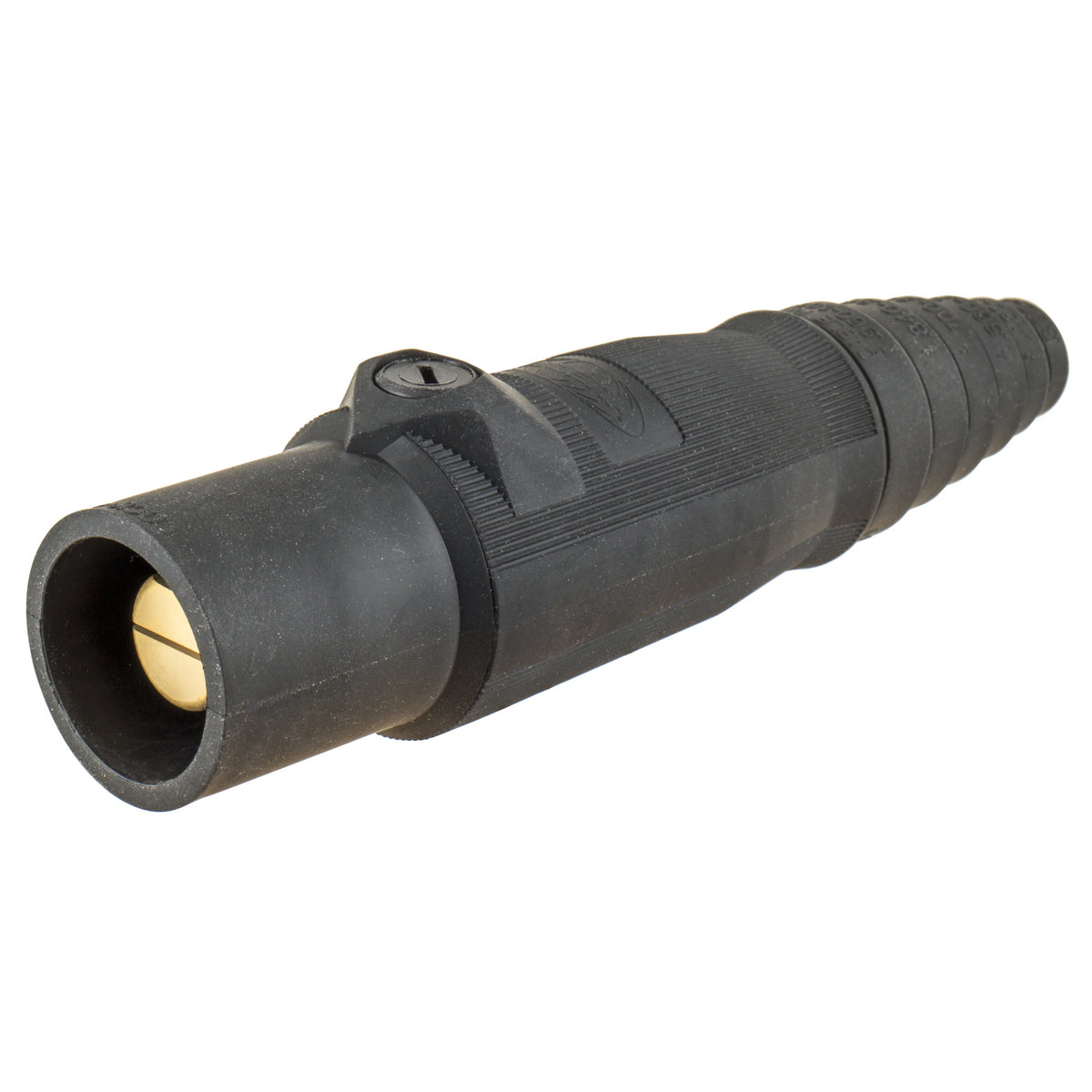

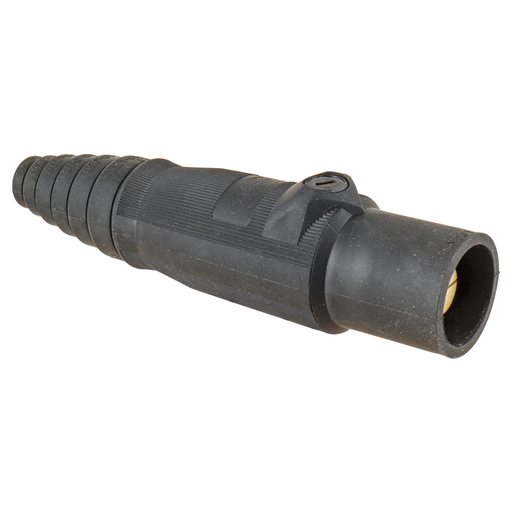

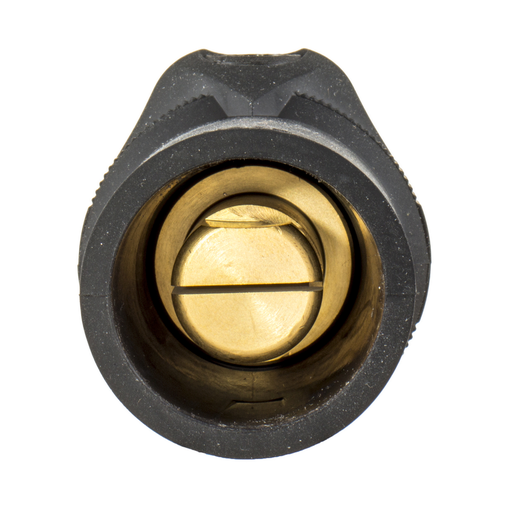

Hubbell HBL400MBK 400 Amp 600 VAC 250 VDC 1-Pole Black Male Plug

Product Description

The Hubbell HBL400MBK is a 400 Amp, 600 VAC, 250 VDC, 1-pole black male plug designed for industrial applications. This plug is suitable for heavy-duty usage and is designed to provide reliable electrical connections. It features double set screws to secure the connection and an Insulgrip style housing for firm gripping.

• High ampacity connections for demanding environments.
• Non-conductive retaining screw locks contacts securely.
• Compatible with various conductor sizes, ensuring flexibility.

Product Highlights

This plug is ideal for temporary power distribution in various settings such as entertainment, construction sites, and industrial applications.

Product Information

Standard Information

• MPN: HBL400MBK
• Brand: Hubbell Wiring Device-Kellems

Technical Specifications

• Current Rating: 400 Amp
• Voltage Rating: 600 VAC / 250 VDC
• Material: Composite
• Color: Black
• Dimensions: Length 6.8 inches, Width 4.960 inches, Height 1.8 inches
• Conductor Size: 2/0-4/0 AWG
• Number of Poles: 1
• Environmental Conditions: Indoor dry unless protected
• Standard Compliance: NEC, ANSI, UL
