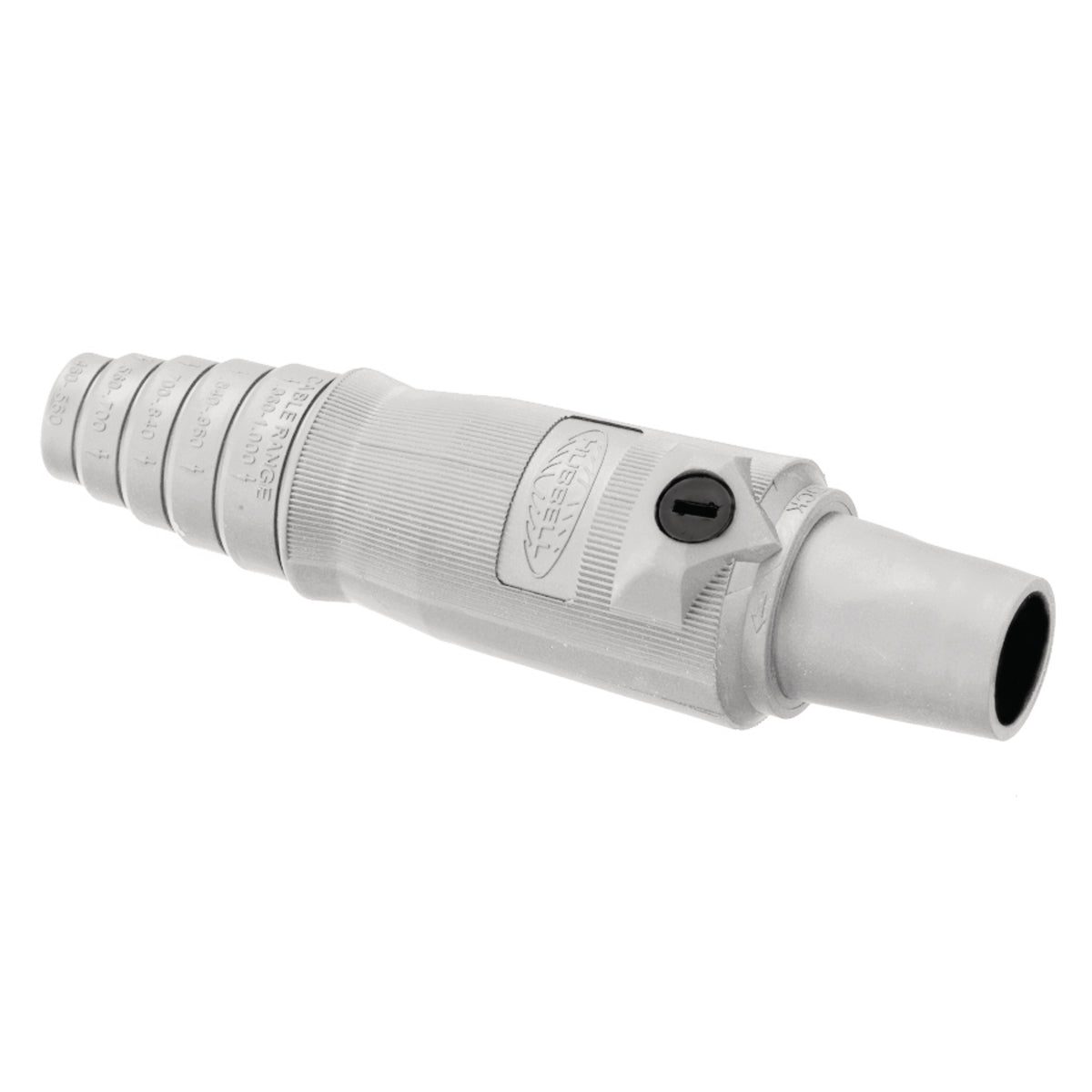

Hubbell HBL400FW HWD 400 Amp 600 VAC/250 VDC Female Plug

Product Description

The Hubbell Wiring Device-Kellems HBL400FW is a 400 Amp 600 VAC/250 VDC 1-Pole female heavy-duty plug for high ampacity connections. This plug is designed for applications requiring temporary power distribution, making it ideal for use in entertainment, theme parks, and industrial settings.

• Compatible with wire sizes of 2/0 to 4/0 AWG
• Features Taper Nose and Pressure Screw Terminal Connection
• Rated NEMA 3R/4X/12K for versatile indoor and outdoor usage

Product Highlights

This industrial-grade plug is made from durable composite materials and features brass contacts for reliable conductivity. Its design allows for easy installation without special tools, providing convenience for quick setups.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• MPN: HBL400FW

Technical Specifications

• Voltage Rating: 600 VAC, 250 VDC
• Amperage Rating: 400 A
• Wire Size: 2/0 to 4/0 AWG
• Connection Type: Pressure Screw Terminal
• Contact Material: Brass
• Housing Material: Composite
• Electrical Rating: 240,000 W
• Dimensions: 1.06 inches Diameter x 6.84 inches Length
