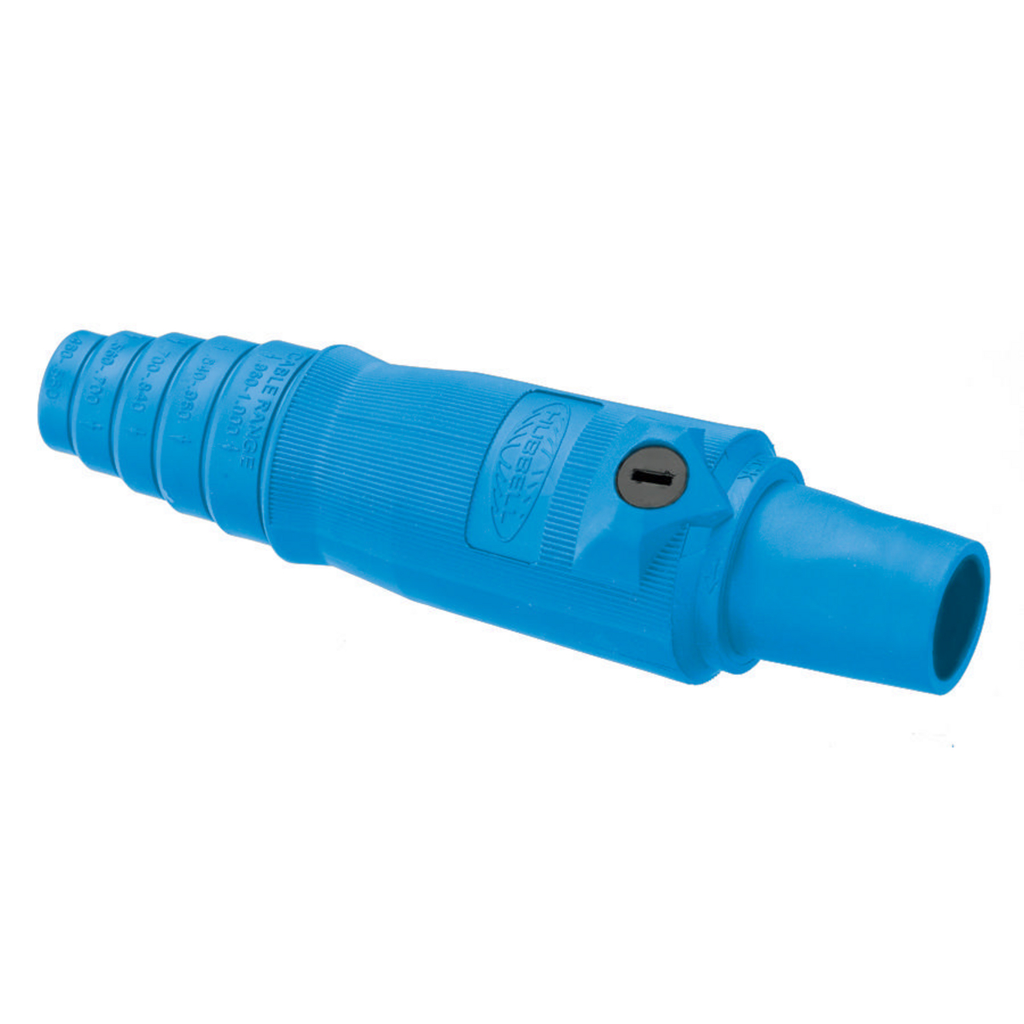

Hubbell HBL400FBL 400 Amp 600 VAC 250 VDC 1-Pole Blue Female Plug

Product Description

The Hubbell HBL400FBL is a 400 amp, 600 volt alternating current and 250 volt direct current female plug. It is suitable for heavy-duty applications and designed to handle high ampacity connections. This single-pole plug is constructed from a composite material, ensuring durability and reliability in industrial settings.

• Rated for 400 amps and 600 volts AC/DC
• Equipped with double set screws for secure wire connections
• Features an extra-long non-conductive inner sleeve

Product Highlights

This industrial-grade female plug is ideal for high amp applications. It offers a secure connection with pressure terminal screws, ensuring optimal performance in challenging environments.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Country of Origin: China

Technical Specifications

• Catalog Number: HBL400FBL
• Current Rating: 400 Amps
• Voltage Rating: 600 VAC / 250 VDC
• Number of Poles: 1 Pole
• Connection Type: Pressure Terminal Screws
• Wire Size Compatibility: 00-0000 AWG
• Environmental Conditions: Indoor dry unless protected by additional means
• Standard Compliance: ANSI, NFPA 70, UL, National Electric Code (NEC)
