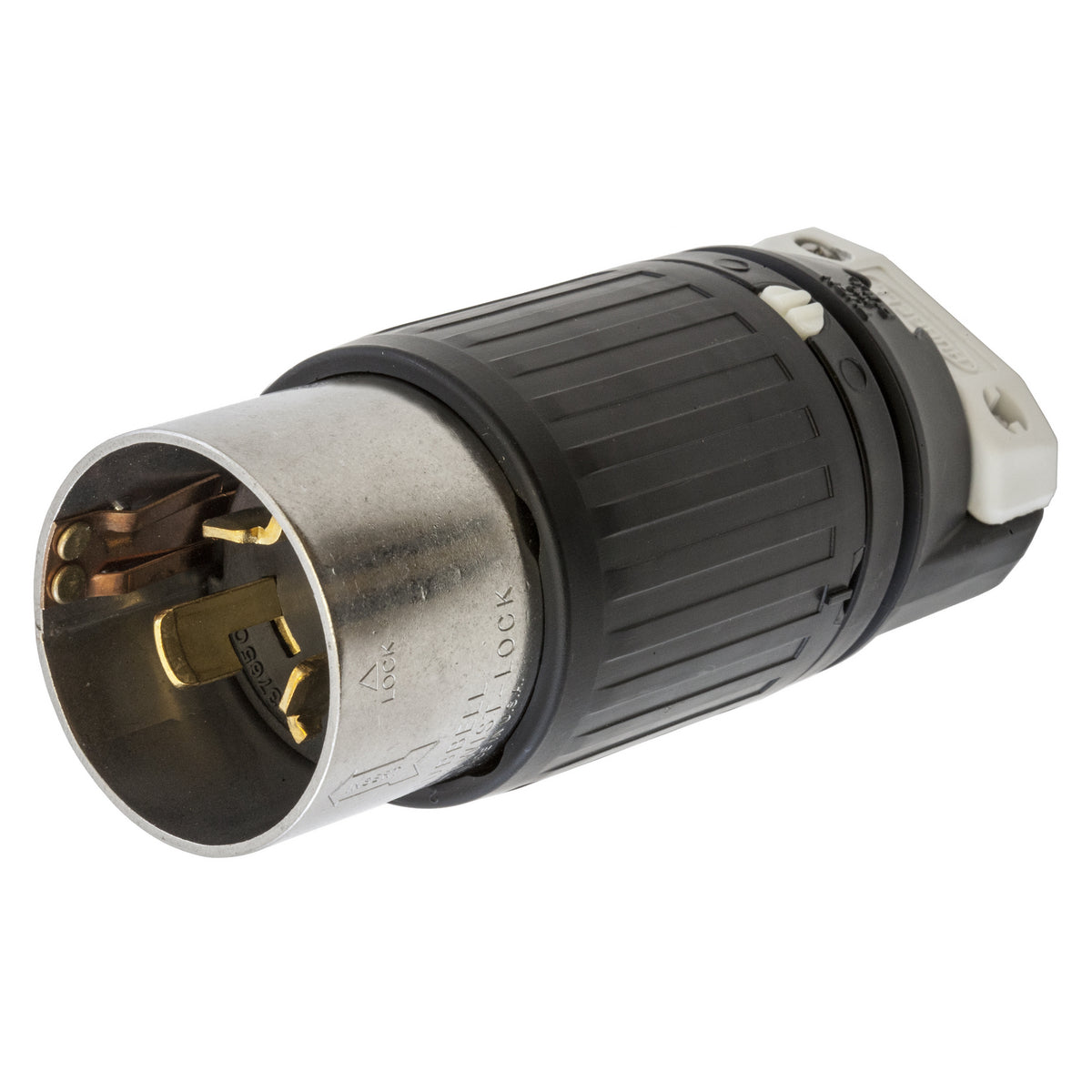

Hubbell HBL3765C HUB 4W TW-LOCK CAP

Product Description

The Hubbell HBL3765C is a twist-lock locking plug suitable for a variety of power connection applications. This is a male non-NEMA standard cord mount designed for use in industrial environments. It operates at a voltage rating of six hundred VAC or two hundred fifty VDC and can handle an amperage rating of fifty A. The plug is designed to accommodate three poles and four wires.

• Durable thermoplastic polyester interior.
• IP20 enclosure suitable for indoor use.
• Fits cord diameters from three fourths to one and one eighth inches.

Product Highlights

Designed for reliable power connections, this plug is ideal for situations requiring a secure and safe connection.

Product Information

Standard Information

• Manufacturer: Hubbell
• MPN: HBL3765C

Technical Specifications

• Application: Power Connection and Indoor Environment Applications
• Color: Black/White
• Cord Diameter: 3/4 to 1-1/8 inches
• Dimensions: 2.56 x 2.56 x 6.37 inches
• Grade: Industrial
• Material: Nylon
• Number of Poles: 3
• Number of Wires: 4
• Standards/Approvals: RoHS Compliant, UL 498, UL94 V-0, CSA C22.2 No. 42
• Temperature Rating: -40 to 75 degrees C
• Terminal Type: Screw
• Type: 1-Phase Grounding Male Non-NEMA Standard Cord Mount
• Voltage Rating: 600 VAC/250 VDC
• Amperage Rating: 50 A
