Hubbell HBL3765C 50 Amp 600 Vac and 250 Vdc 3-Pole 4-Wire Nylon Locking Plug

Product Description

The Hubbell HBL3765C is a locking device designed for industrial use. This plug operates at fifty Amps and accommodates both six hundred Volts AC and two hundred fifty Volts DC. It features three poles and four wires for grounding. The nylon housing and thermoplastic polyester interior ensure durability in tough conditions.

• Designed for extra heavy-duty industrial applications
• Compatible with 8-4 AWG wire sizes
• Meets CSA and UL standards

Product Highlights

Stainless steel protects contacts and prevents mismating. The tough nylon housing provides impact resistance, while a heavy-duty external cord clamp ensures maximum strain relief.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• MPN: HBL3765C

Technical Specifications

• Current Rating: 50 Amp
• Voltage Rating: 250 VDC / 600 VAC
• Number of Poles: 3 Pole
• Number of Wires: 4 Wire
• Weight: 1.25 lb

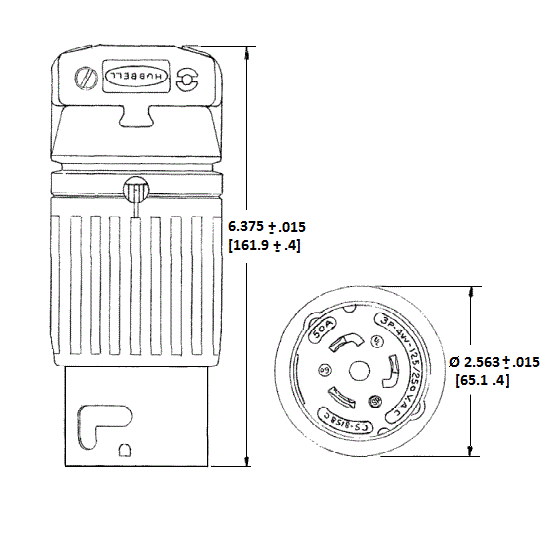

• Dimensions: 2.56 in x 2.56 in x 6.37 in
• Material: Nylon
• Applications: Extra Heavy Duty Industrial Application
