Product Description

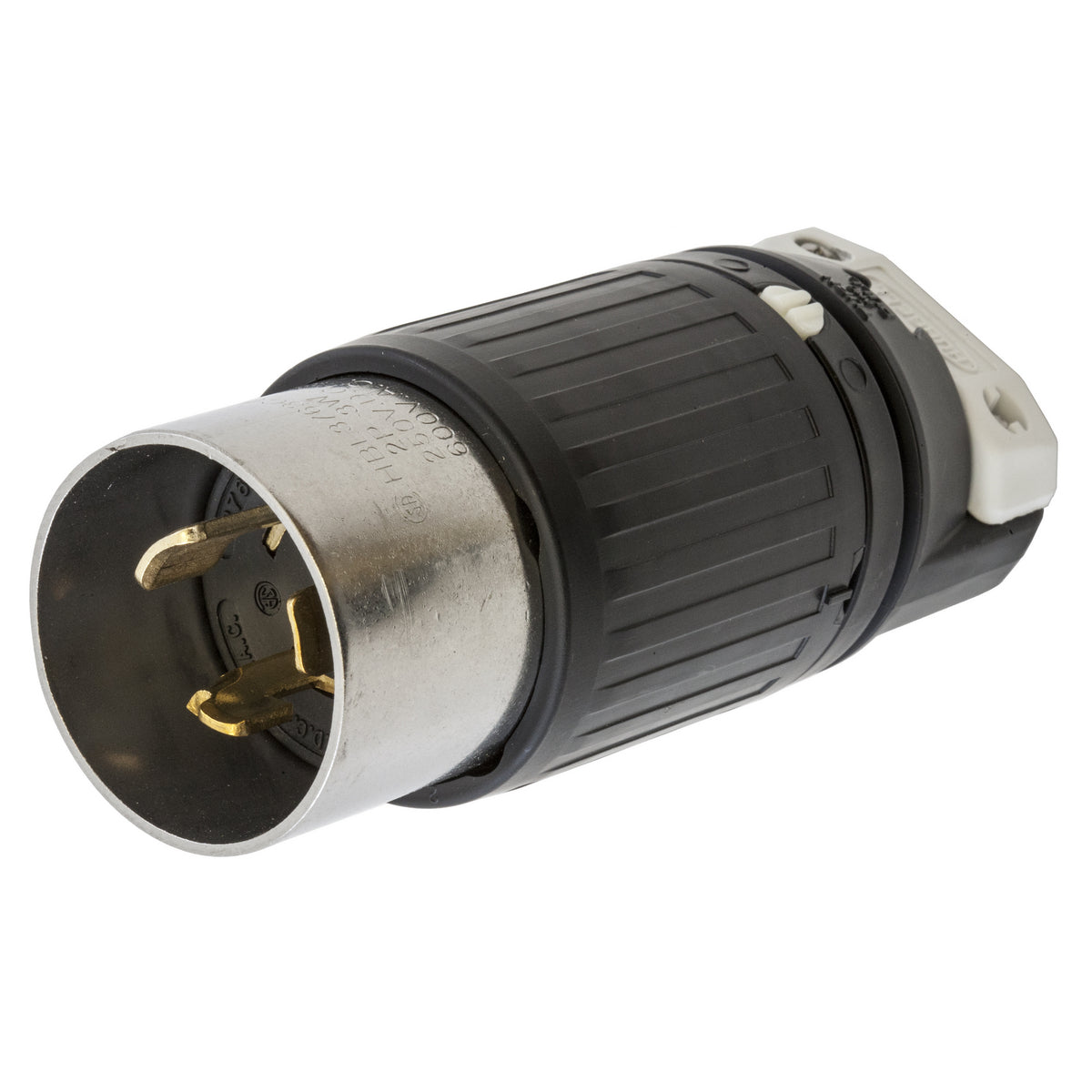

The Hubbell HBL3763C is a locking plug designed for demanding applications. It operates on one phase and is suitable for industrial environments. It supports a voltage rating of six hundred VAC and two hundred fifty VDC. The plug is built with an IP20 enclosure, ensuring protection against objects larger than twelve millimeters. It is made of nylon, making it resistant to impact. The HBL3763C is rated for fifty amps and designed for dry locations and indoor use.
- Durable nylon construction for high impact resistance
- Compatible with cords ranging from zero point eight three to one point two five inches in diameter
- Temperature range of negative forty to seventy-five degrees Celsius
Product Highlights
This plug features a pressure screw terminal for secure connections and complies with RoHS and UL standards, ensuring safety and reliability.
Product Information
Standard Information
-
Application: Dry Locations and Indoor Applications
-
Material: Nylon
Technical Specifications
-
Amperage Rating: 50 A
-
Voltage Rating: 600 VAC / 250 VDC
-
Number of Poles: 2
-
Number of Wires: 3
-
Cord Diameter: 0.83 to 1.25 inches
-
Enclosure: IP20
-
Temperature Rating: -40 to 75 degrees Celsius
-
Dimensions: 2.56 x 2.56 x 6.37 inches
