Product Description

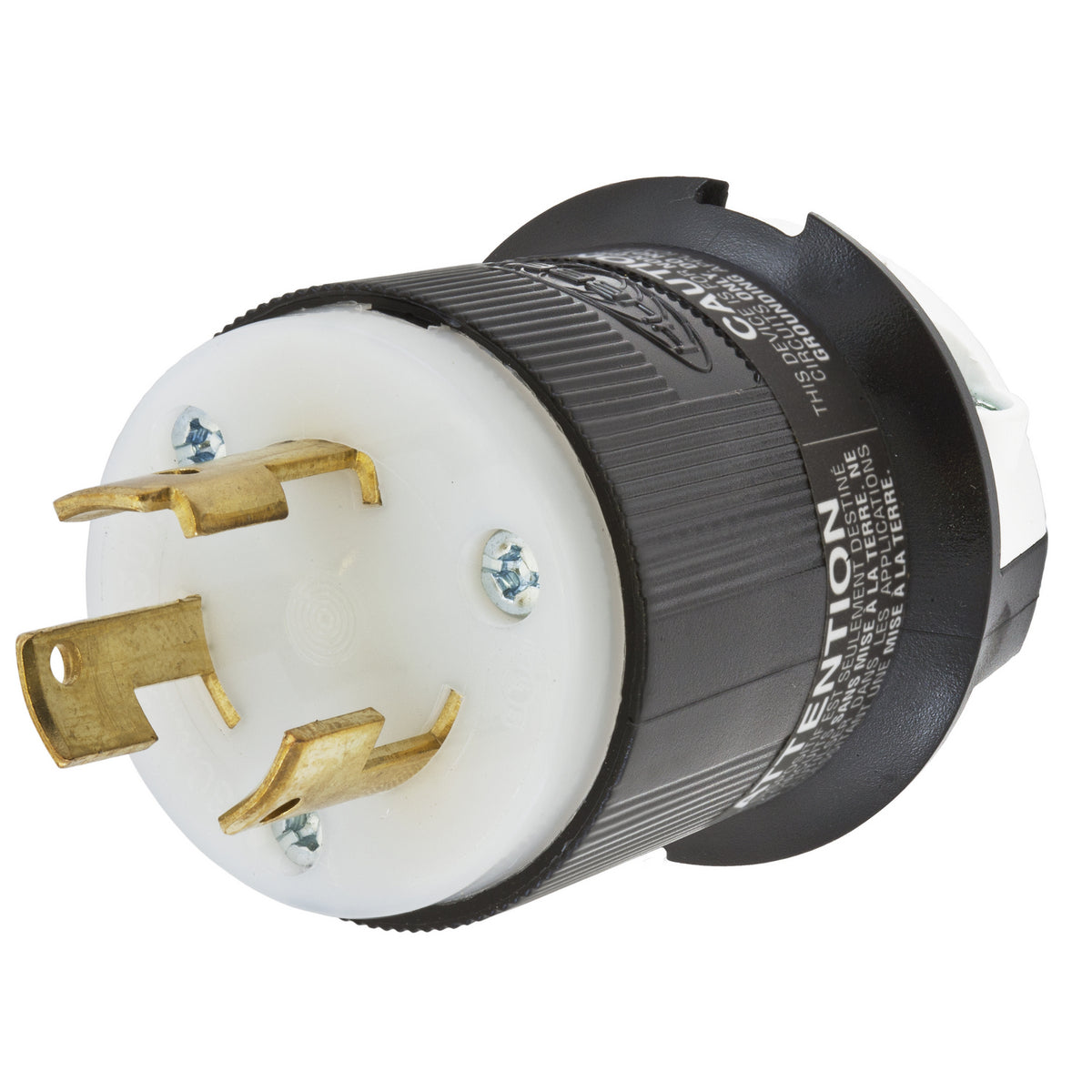

The Hubbell HBL3331C is a wiring device for power connections. It is a three-pole, three-wire, 30 amp locking plug designed for 125/250 volt circuits. This plug features a twist-lock mechanism, ensuring a secure connection. The nylon housing is suitable for industrial applications. This product is rated for use in indoor environments where dust protection is necessary.
- Compatible with cords from zero point three six to zero point nine three inches in diameter.
- Can withstand temperatures from negative forty to seventy-five degrees Celsius.
- Meets UL 94 flammability ratings and is RoHS compliant.
Product Highlights
This locking plug features a ribbed design for a secure grip and includes an integral dust shield.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
MPN: HBL3331C
Technical Specifications
-
Amperage Rating: 30 A
-
Voltage Rating: 125/250 VAC
-
Number of Poles: 3
-
Number of Wires: 3
-
Grade: Industrial
-
Material: Nylon
-
Cord Diameter: 0.36 to 0.93 in
-
Dimensions: 2.33 x 2.33 x 2.75 in
-
Temperature Rating: -40 to 75 deg C
-
Enclosure Type: IP20
-
Terminal Type: Screw
-
Standards/Approvals: UL 94 Flammability Rating, CSA 22.2 No. 0.6 Certified, RoHS Compliant
