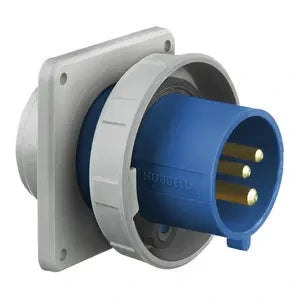

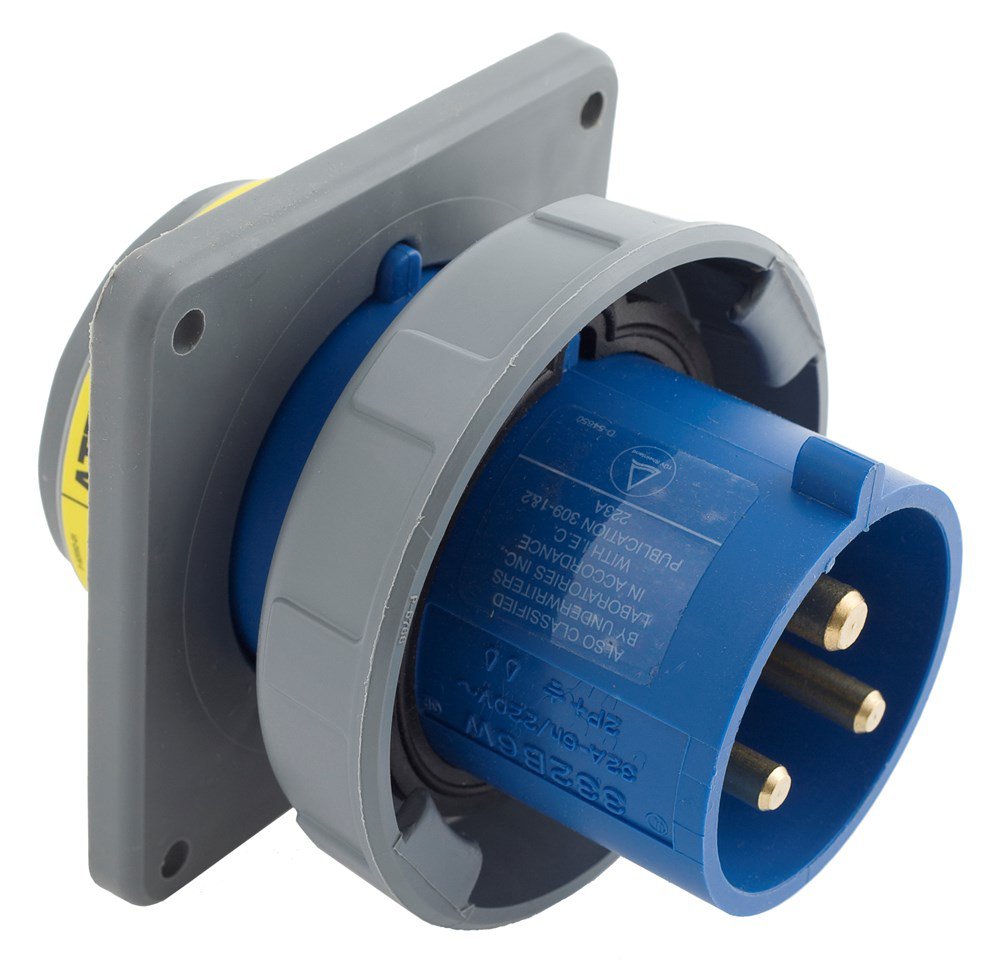

Hubbell HBL332B6W IEC pin and sleeve flanged inlet 32A 220-240V (2-pole 3-wire) replaced by HBL330B6W

Product Description

Hubbell HBL332B6W is a heavy-duty IEC 60309 pin and sleeve flanged inlet rated 32 A at 220–240 VAC in a 2-pole, 3-wire configuration. The watertight IP67 inlet features brass phase pins, a thermoset polyester contact carrier, solid neoprene gaskets, and a heavy-duty external cord grip. It mounts as a flanged inlet with pressure terminal screws and is certified to UL and CSA standards for industrial applications.

• Rated 32 A, 220–240 VAC (7680 W); 2-pole, 3-wire configuration with #12 to #10 AWG capacity
• Watertight IP67 enclosure with brass phase pins, thermoset contact carrier, and solid neoprene gaskets
• Flanged inlet with pressure terminal screws, heavy-duty external cord grip; operating temperature -40 to 75 deg C

Product Highlights

Industrial-grade IEC 60309 watertight flanged inlet, panel-mountable, UL and CSA certified

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: HBL332B6W
• Country of Origin: United States
