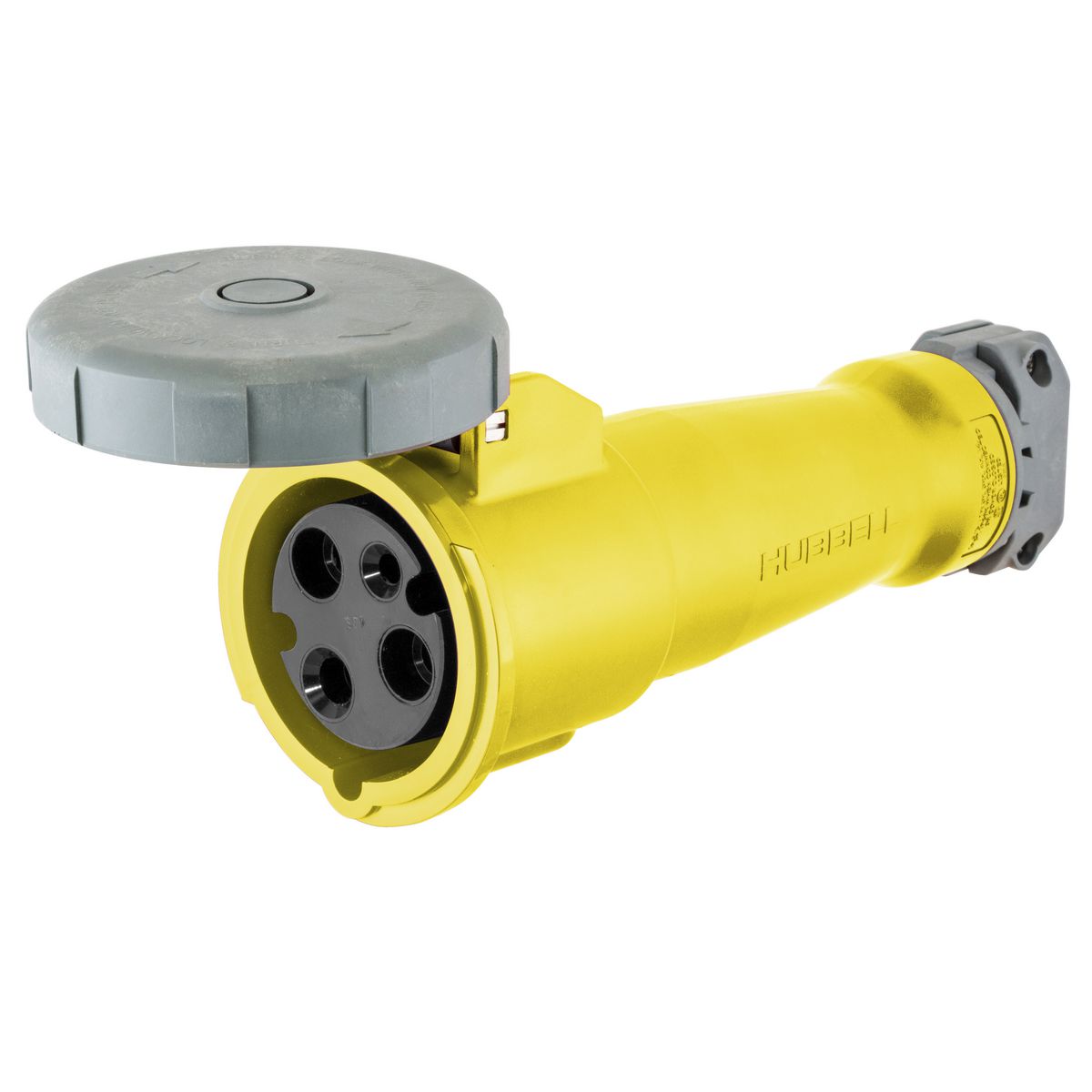

Hubbell HBL320C4W HUB 2P-3W 20A-125V CONN BODY

Product Description

The Hubbell HBL320C4W is a pin and sleeve connector designed for reliable electrical connections in demanding environments. This female grounding model supports voltage up to one hundred twenty-five volts and a current rating of twenty amps. It's built with a watertight cord mount and an industrial-grade IP67 enclosure, ensuring protection against water and dust ingress.

• Supports high ampacity connections
• Withstands extreme temperatures from minus forty to seventy-five degrees Celsius
• Compliant with multiple safety standards including UL and IEC certifications

Product Highlights

This connector features a self-closing gasketed cover to minimize environmental exposure. It also includes a pressure screw terminal for reliable connections and has a multi-contact spring that aids in maintaining high pressure on mating pins, reducing temperature rise.

Product Information

Standard Information

• Product Name: HBL320C4W HUB 2P-3W 20A-125V CONN BODY
• Manufacturer: Hubbell

Technical Specifications

• Amperage Rating: 20 A
• Voltage Rating: 125 VAC
• Number of Poles: 2
• Number of Wires: 3
• Color: Yellow
• Dimensions: 3.33 inches Diameter x 7.49 inches Length
• Enclosure: IP67
• Temperature Rating: -40 to 75 degrees Celsius
• Material: Composite
• Standards/Approvals: UL 498 | UL 1682 | IEC 309-1/309-2 | RoHS Compliant
