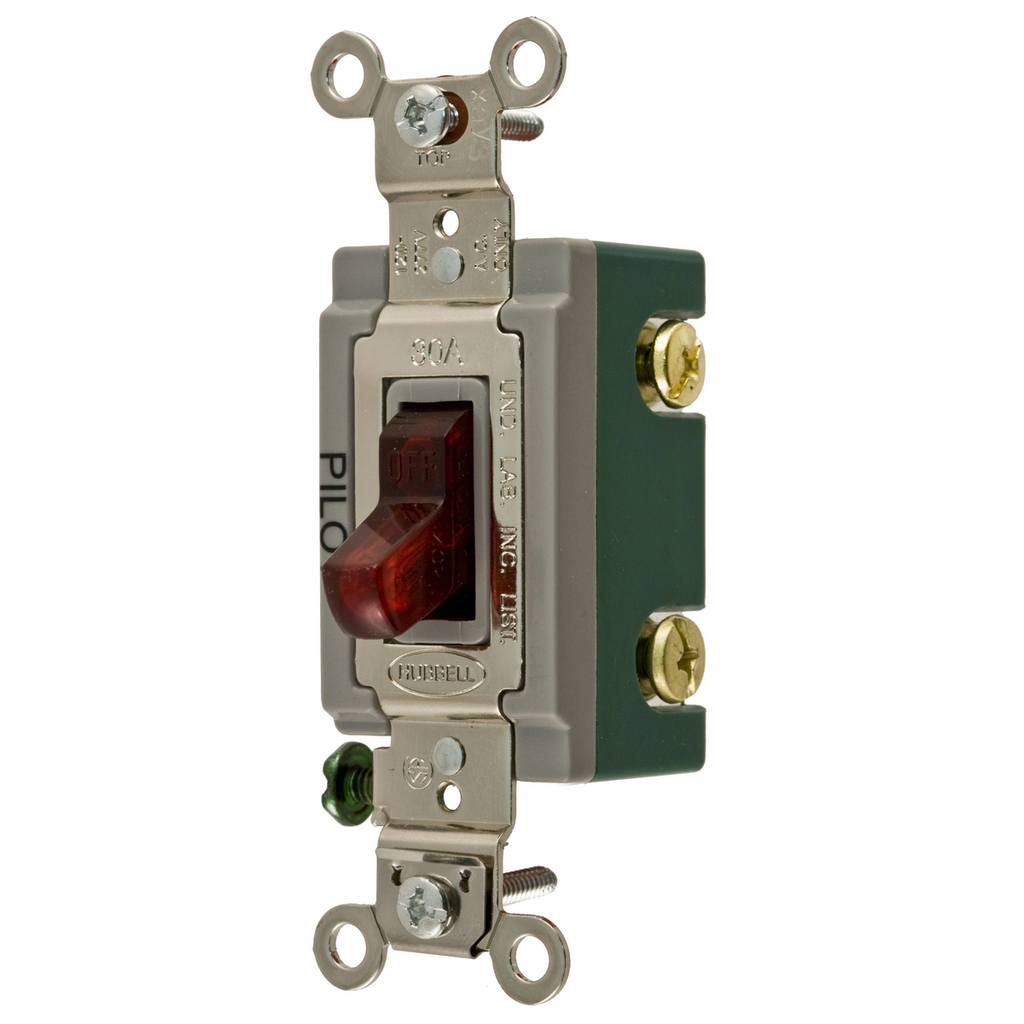

Hubbell HBL3032PL 30 Amp 120/277 VAC 2-Pole Red Toggle Switch

Product Description

The Hubbell HBL3032PL is a 30 Amp toggle switch designed for 120/277 volt applications. This red toggle switch is suitable for industrial use, featuring a double pole design. The switch can be wired from the back or side, making installation flexible and efficient.

• High amperage rating of 30 Amps
• Rated for both 120 and 277 Volts
• Durable thermoset material for lasting performance

Product Highlights

This toggle switch is ideal for lighting controls and general-purpose AC applications.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• MPN: HBL3032PL

Technical Specifications

• Current: 30 Amp
• Voltage: 120-277 Volt
• Wattage: 8310 Watt
• Actuator: Toggle
• Material: Thermoset

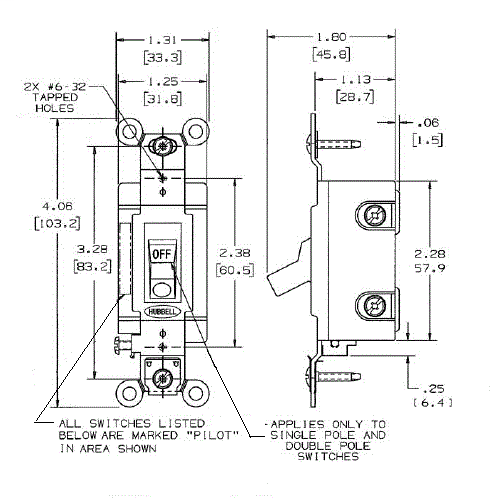

• Width: 1.9 inches
• Height: 1.86 inches
• Length: 4.06 inches
• Weight: 0.2 lb
• Applications: Extra Heavy Duty Industrial
• Operating Temperature: -40 degrees C
• Number of Poles: 2 Pole
• Operating Cycles: 50000
• Environmental Conditions: Indoor Dry
