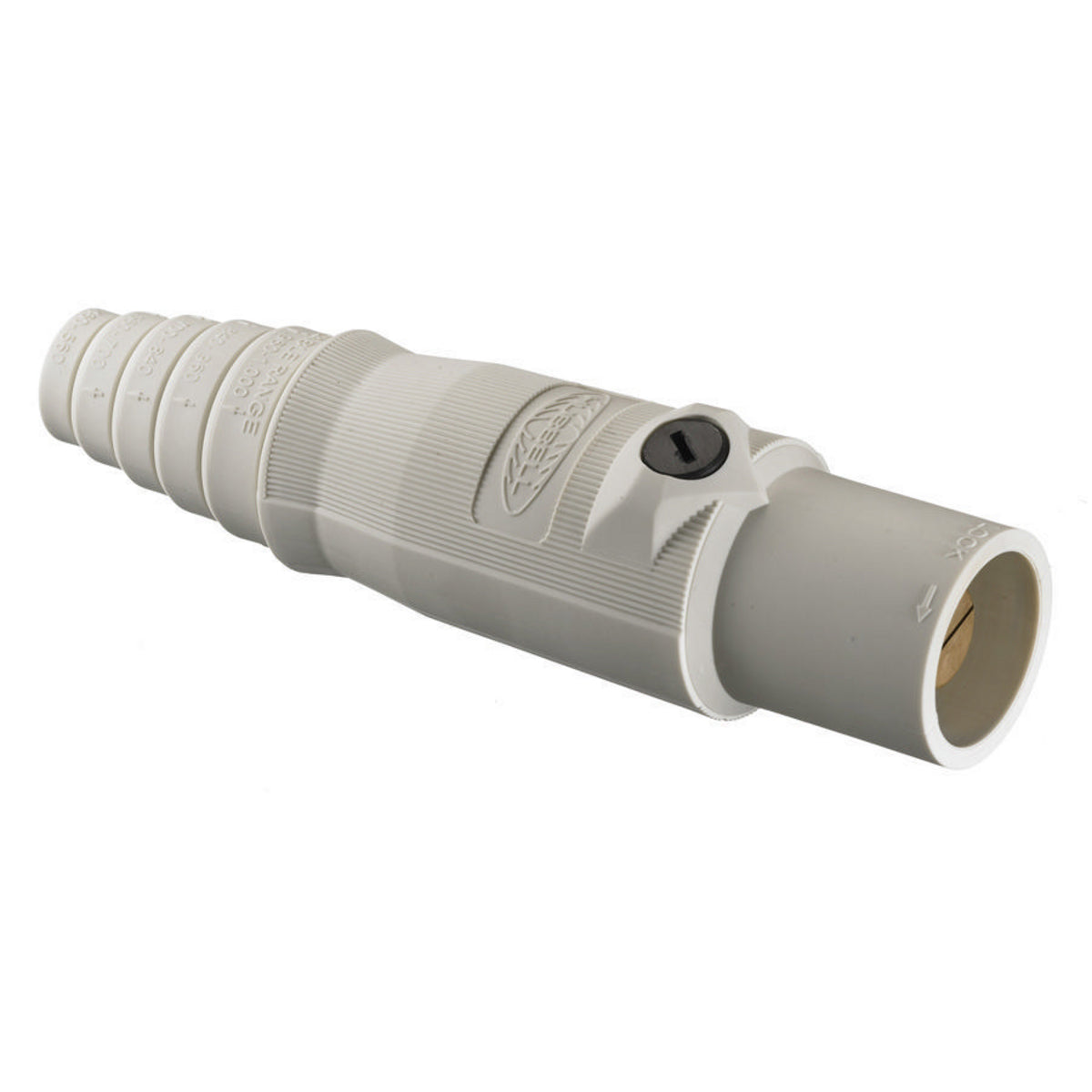

Hubbell HBL300MW Male Plug 300 Amp 600 VAC 250 VDC

Product Description

The Hubbell HBL300MW is a male plug designed for high ampacity connections. With a current rating of three hundred amps and a voltage rating of six hundred volts AC and two hundred fifty volts DC, this plug is ideal for temporary electrical power distribution in various industrial applications.

• Insulgrip® style housing for secure gripping
• Non-conductive retaining screw locks contacts in place
• Pressure terminal screws for reliable connections

Product Highlights

This plug features a sturdy composite construction. It includes a single conductor with double set screws for secure installation, making it suitable for use in demanding environments like theme parks and concerts.

Product Information

Standard Information

• Catalog Number: HBL300MW
• Brand: Hubbell Wiring Device-Kellems

Technical Specifications

• Current Rating: 300 Amp
• Voltage Rating: 600 VAC, 250 VDC
• Wattage: 240000 Watt
• Material: Composite
• Mounting Type: Cord
• Conductor Size: 4-2/0 AWG
• Number of Poles: 1 Pole
• Number of Wires: 1 Wire
