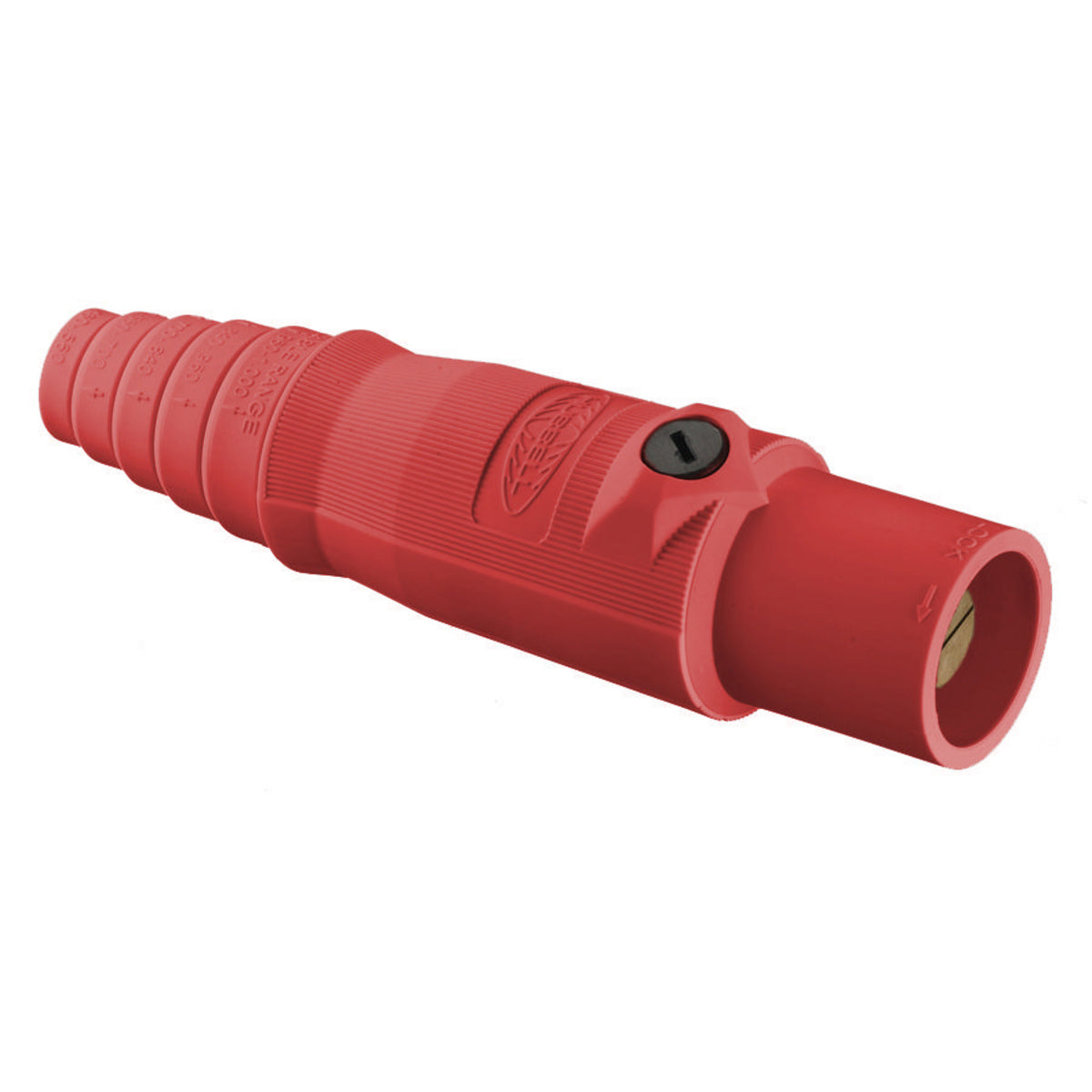

Hubbell HBL300MR Male Plug 600 VAC/250 VDC 300 Amp 1-Pole 4 to 2/0 AWG Cable Size

Product Description

The Hubbell HBL300MR is a male plug designed for high ampacity connections. This industrial-grade product has a current rating of three hundred Amps and works with voltages up to six hundred VAC and two hundred fifty VDC. It accommodates wire sizes ranging from four to two/0 AWG, making it suitable for various applications.

• Heavy-duty construction for durability and reliability.
• Insulgrip® style housing provides superior grip during connections.
• Pressure terminal screws ensure a secure connection.

Product Highlights

Ideal for use in temporary power distribution for events, the Hubbell HBL300MR meets the standards set by the National Electric Code and is UL/cUL listed.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Catalog Number: HBL300MR

Technical Specifications

• Current: 300 Amp
• Voltage Rating: 600 VAC/250 VDC
• Material: Composite
• Size: Standard Sized
• Number of Poles: 1
• Environmental Conditions: Indoor Dry unless protected by additional means
• Wire Size: 4-2/0 AWG
• Connection Type: Pressure Terminal Screws
