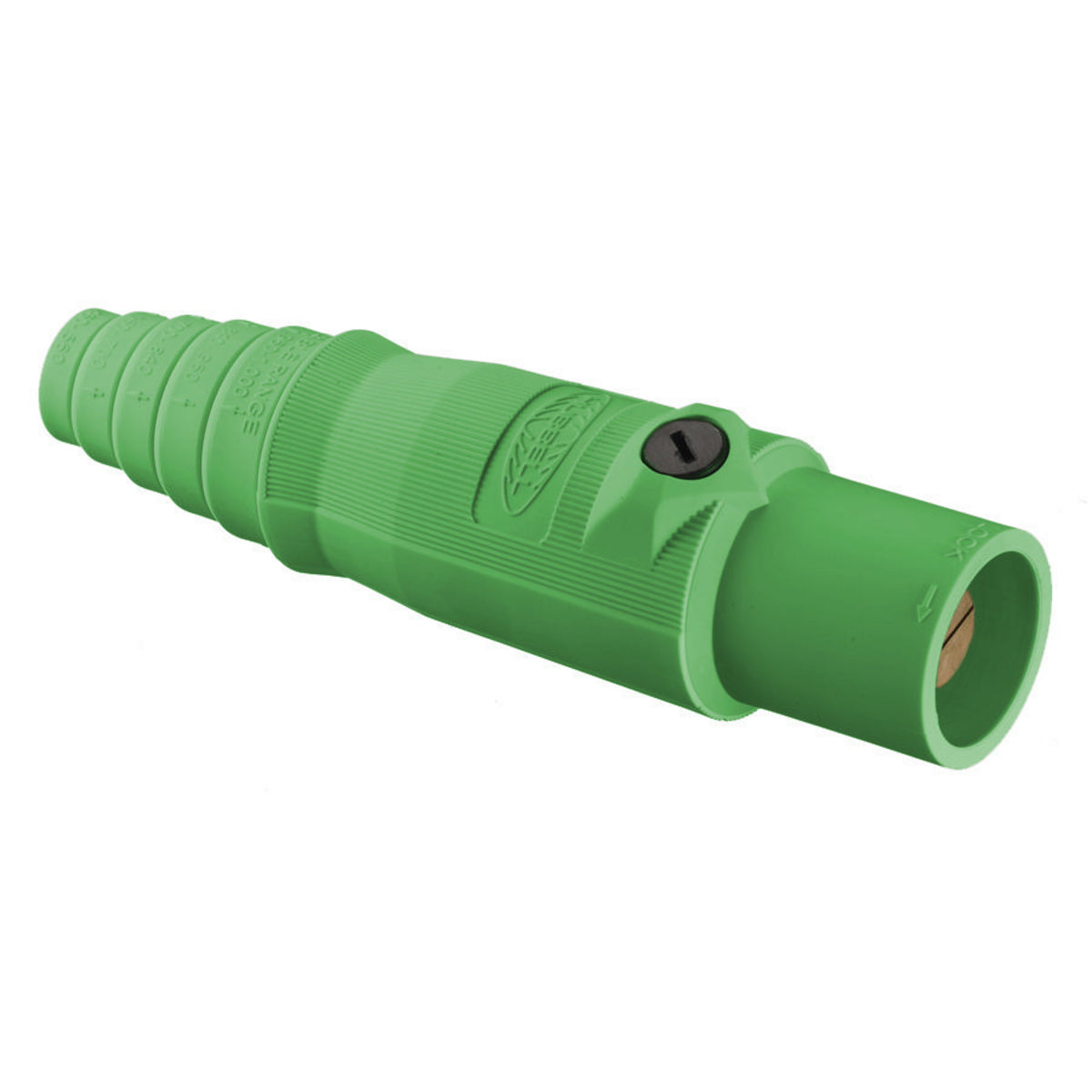

Hubbell HBL300MGN Green Male Plug 300 Amp 600 VAC 250 VDC 1-Pole

Product Description

The Hubbell HBL300MGN is a green male plug designed for high ampacity connections. This industrial grade plug is capable of handling up to 300 amps at 600 volts AC or 250 volts DC. It features a single pole design and a durable construction suitable for demanding environments.

• Insulgrip style housing provides a firm grip.
• Non-conductive retaining screw secures contacts in place.
• Compatible with 4 to 2/0 AWG wire sizes.

Product Highlights

This plug is ideal for applications such as entertainment, theme parks, and other temporary power setups. It is designed for easy assembly and disassembly without the need for special tools.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Catalog Number: HBL300MGN

Technical Specifications

• Amperage Rating: 300 Amp
• Voltage Rating: 600 VAC/250 VDC
• Wattage: 240000 W
• Material: Composite
• Size: Standard Sized
• Style: Male
• Number of Poles: 1
• Environmental Conditions: Indoor Dry unless protected
