Hubbell HBL300MBL 300 Amp Blue Male Plug

Product Description

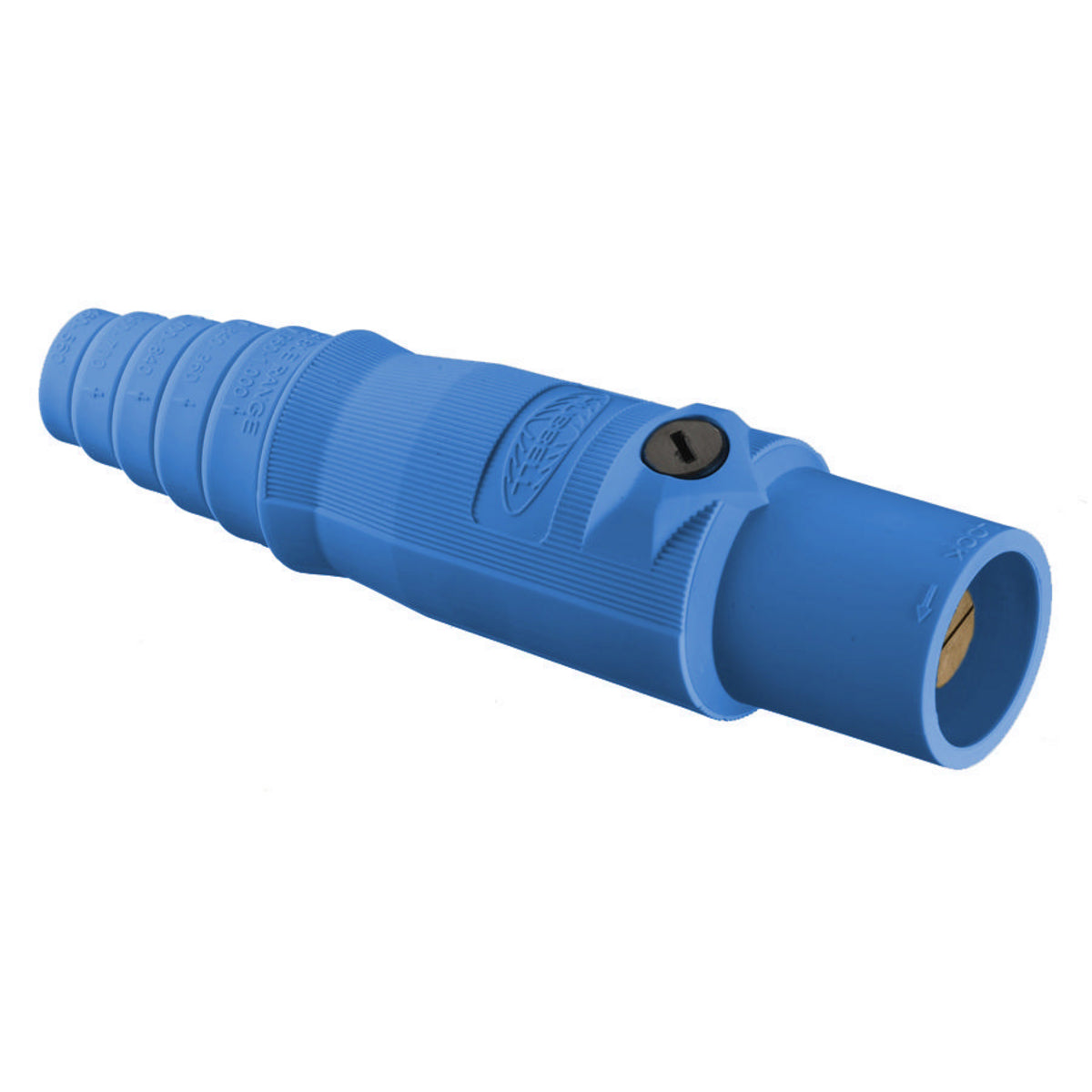

The Hubbell HBL300MBL is a male plug designed to handle 300 amps and is rated for use with 600 volts alternating current or 250 volts direct current. This plug is made for industrial environments and is suitable for high ampacity connections. Its configuration includes a single conductor and double set screws, ensuring reliable connections in demanding settings.

• Insulgrip style housing for superior gripping.
• Non-conductive retaining screw locks contacts in place.
• Designed for ease of assembly and disassembly without special tools.

Product Highlights

This single pole device provides safe and efficient power distribution in temporary installations, such as events and construction sites.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Sub Brand: Single Pin

Technical Specifications

• Catalog Number: HBL300MBL
• Amperage Rating: 300 Amps
• Voltage Rating: 600 VAC/250 VDC
• Wattage: 240000 Watts
• Wire Size: 4-2/0 AWG
• Color: Blue
• Material: Composite
• Height: 2.4 inches
• Width: 2.75 inches
• Length: 6.8 inches
• Environmental Conditions: Indoor Dry unless protected by additional means
• Standard: UL, ANSI/NFPA 70, National Electric Code (NEC)
