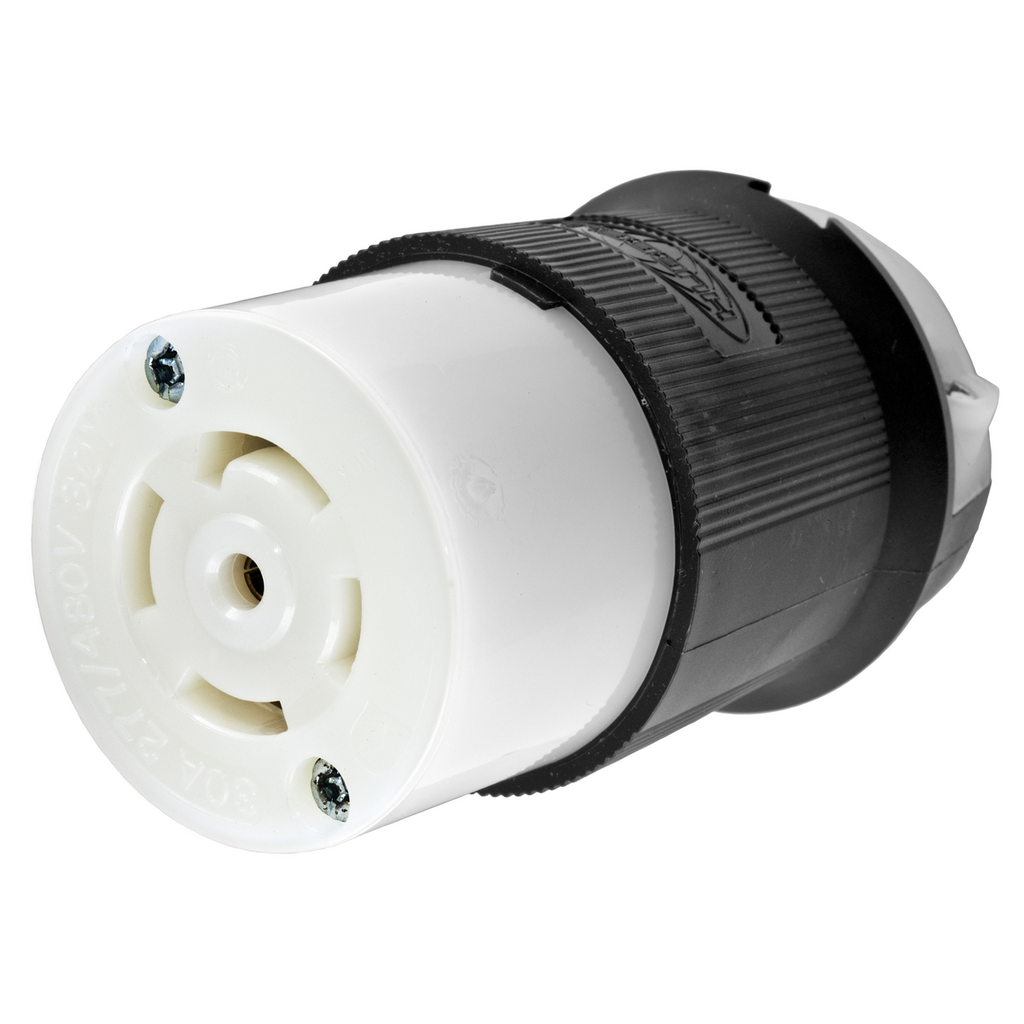

Hubbell HBL2823 HWD 30 Amp 277/480 VAC 4-Pole 5-Wire NEMA L22-30R

Product Description

The Hubbell Wiring Device-Kellems HBL2823 is a reliable twist-lock insulated connector designed for heavy-duty industrial applications. Operating at 30 Amps and rated for 277/480 VAC, this connector features a four-pole, five-wire configuration suitable for various electrical setups.

• Robust nylon housing for secure grip
• Integrated dust shield to prevent contaminants
• Clear wire entry for easy termination

Product Highlights

This connector is ideal for environments requiring high durability and safety standards. It meets UL 498, CSA C22.2 No. 42, and Federal Specification WC596 standards, ensuring compliance with industry regulations.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Voltage Rating: 277/480 VAC

Technical Specifications

• Amperage Rating: 30 A
• Number of Poles: 4
• Number of Wires: 5
• NEMA Rating: L22-30R
• Dimensions: 2.22 inches Diameter x 3.84 inches Length
• Temperature Rating: -40 to 75 degrees C
• Material: Composite
• IP Rating: IP20
