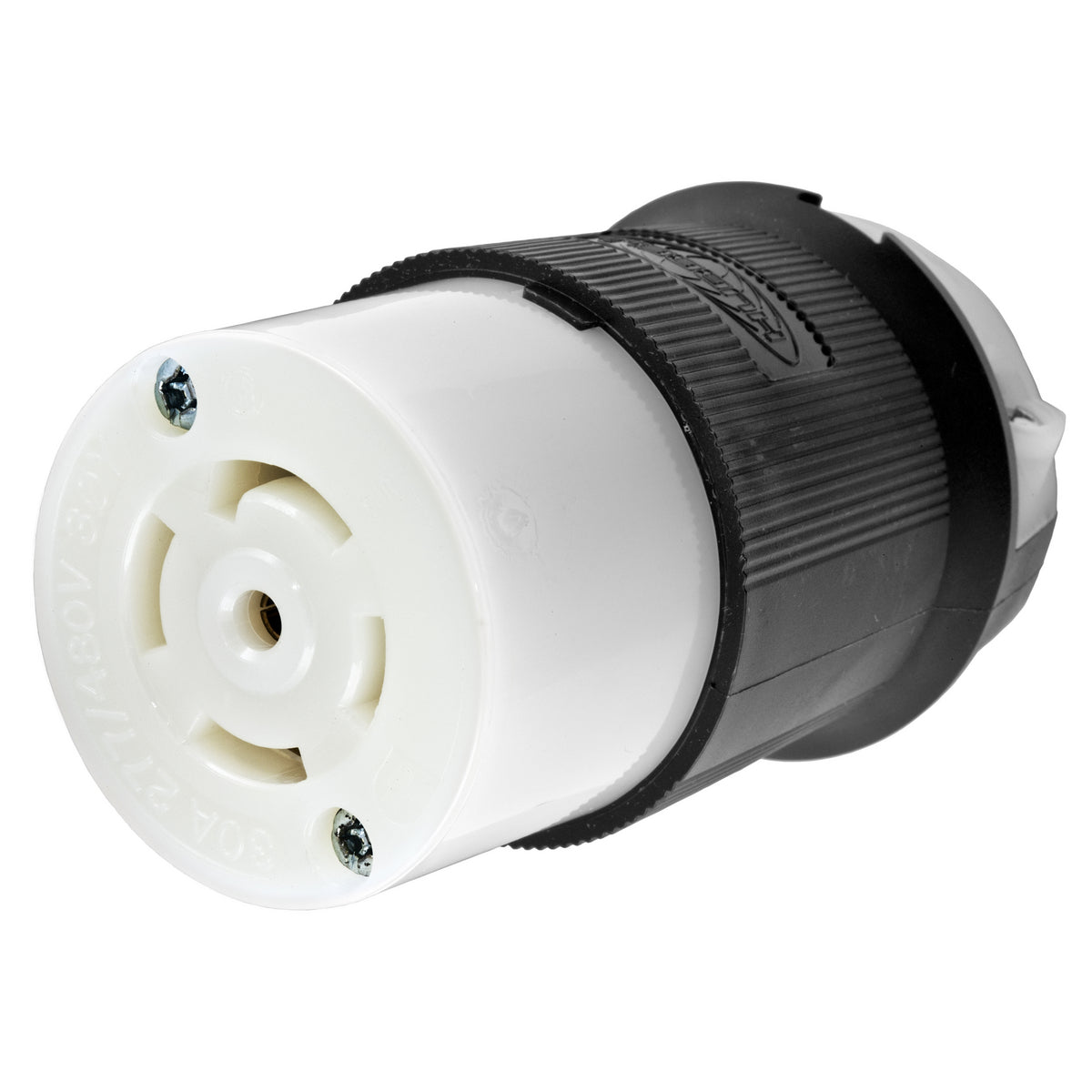

Hubbell HBL2823 HUB Locking Female Conn Nema L22-30R

Product Description

The Hubbell HBL2823 is a HUB locking female connection designed for industrial applications. It operates at 277/480Y VAC with a thirty amp rating. This connector is suitable for use in heavy-duty non-grounding applications, making it ideal for various electrical setups.

• Heavy-duty non-grounding cord mount
• 4 poles and 5 wires
• Temperature range from -40 to 75 degrees Celsius

Product Highlights

This locking connector is built for durability and reliability in demanding environments.

Product Information

Standard Information

• Manufacturer: Hubbell
• MPN: HBL2823

Technical Specifications

• Amperage Rating: 30 A
• Voltage Rating: 277/480Y VAC
• Horsepower: 10 hp
• NEMA Rating: L22-30R
• Material: Nylon
• Dimensions: 2.33 x 2.33 x 3.86 inches
• Cord Diameter: 0.63 to 1.2 inches
• Number of Poles: 4
• Number of Wires: 5
• Temperature Rating: -40 to 75 degrees Celsius
• Enclosure: IP20
• Standards/Approvals: UL 498, Federal Specification W-C-596, CSA C22.2 No. 42, NEMA WD1/WD5, RoHS Compliant
