Product Description

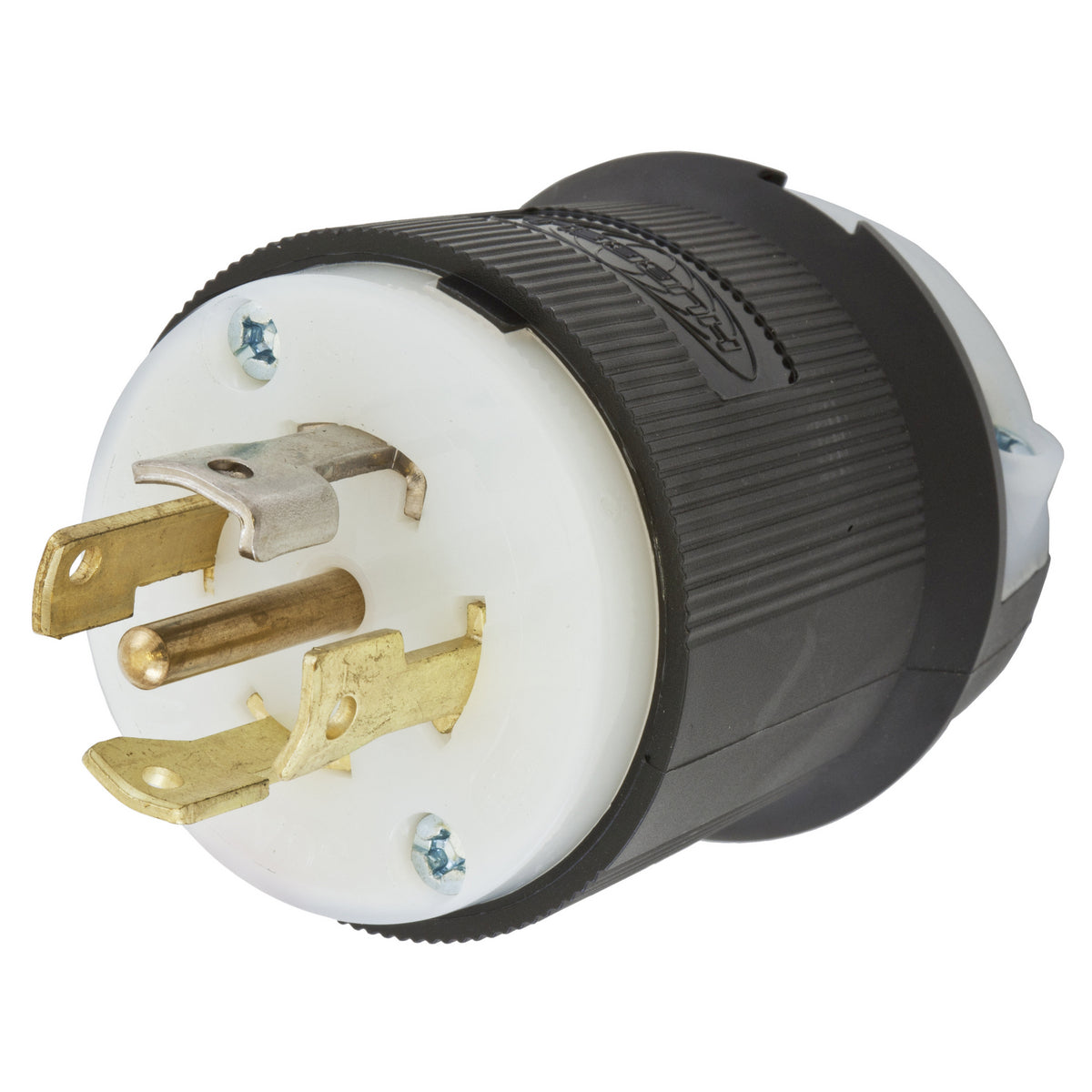

The Hubbell HBL2821 is a wiring device featuring a twist-lock Insulgrip design. This locking plug is suitable for 3-phase grounding cord mount applications, delivering a voltage rating of 277/480 VAC and an amperage rating of 30 A. It supports various wire configurations and is designed for industrial-grade performance.
- Integral dust shield protects wiring chamber from contaminants.
- Designed for indoor use unless additional protection is applied.
- Withstands dielectric voltage of 2000 VAC.
Product Highlights
The HBL2821 is ideal for use in demanding environments where reliable power connections are required. Its robust construction and high-performance ratings make it suitable for various industrial applications.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
Product Name: HBL2821 GRD LKG-IN L22-30P HUB
Technical Specifications
-
Voltage Rating: 277/480 VAC
-
Amperage Rating: 30 A
-
Horsepower: 10 hp
-
NEMA Rating: L22-30P
-
Number of Poles: 4
-
Number of Wires: 5
-
Material: Nylon
-
Temperature Rating: -40 to 75 deg C
-
Dimensions: 2.33 x 2.33 x 2.75 inches
