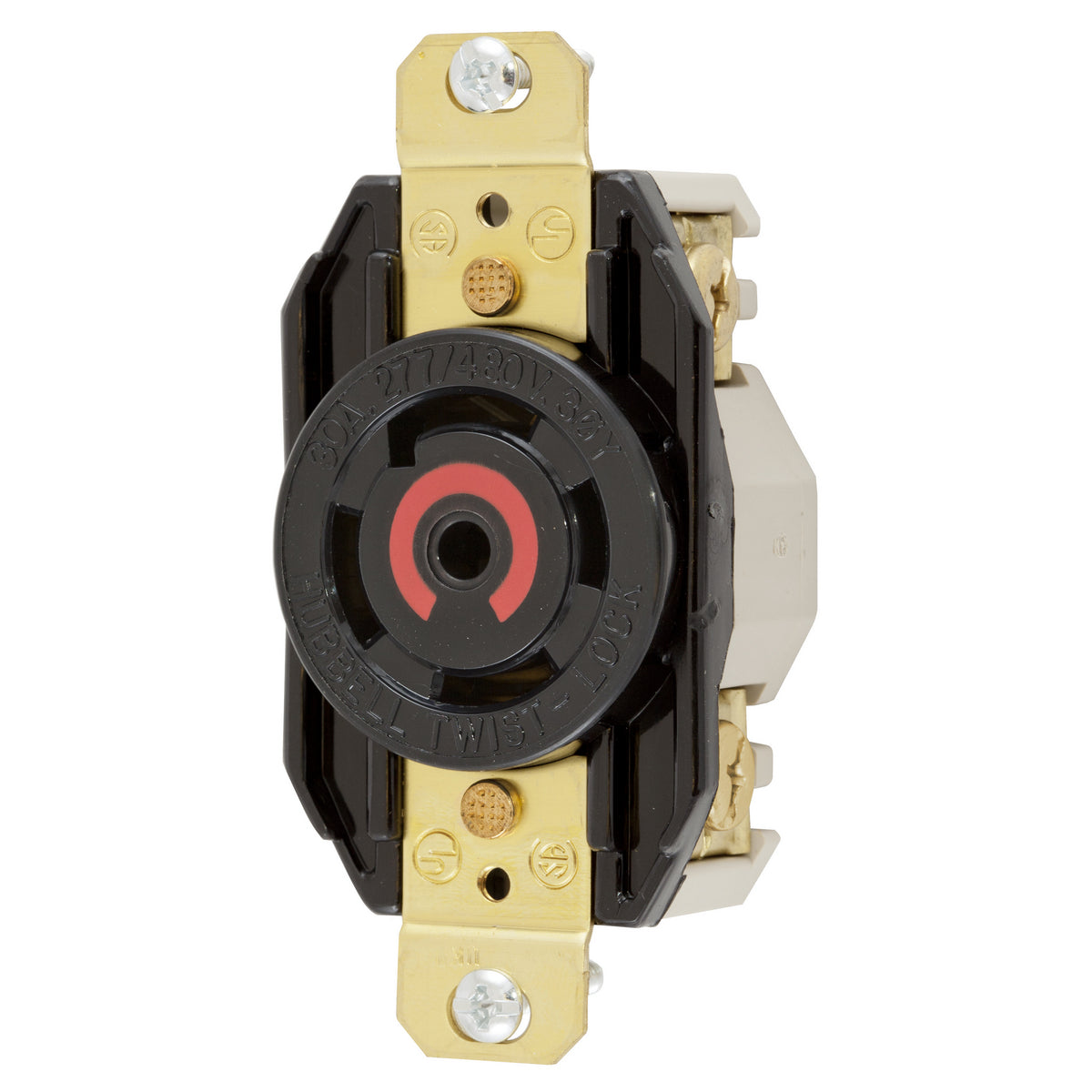

Hubbell HBL2820 HUB Locking SGL RCPT NEMA L22-30R

Product Description

The Hubbell HBL2820 is a twist-lock locking receptacle designed for heavy-duty applications. This device supports 3-phase grounding and is suitable for use in industrial environments. It operates at 277/480Y VAC and has a current rating of 30 A. With a four-pole and five-wire configuration, this receptacle is built to handle 10 hp loads.

• Voltage rating: 277/480Y VAC
• Temperature range: -40 to 75 degrees Celsius
• NEMA rating: L22-30R

Product Highlights

The HBL2820 is ideal for heavy-duty industrial applications. Its durable design ensures reliability in demanding environments.

Product Information

Standard Information

• Manufacturer: Hubbell
• Manufacturer Part Number: HBL2820

Technical Specifications

• Amperage Rating: 30 A
• Color: Gray/White
• Dimensions: 3.28 x 1.7 x 1.23 inches
• Grade: Industrial
• Horsepower: 10 hp
• Material: Nylon
• NEMA Rating: L22-30R
• Number of Poles: 4
• Number of Wires: 5
• Standards/Approvals: UL 498, CSA C22.2 No. 42
• Temperature Rating: -40 to 75 degrees Celsius
• Terminal Type: Screw
• Type: 3-Phase Grounding Heavy Duty Single Screw Mount
• Voltage Rating: 277/480Y VAC
