Product Description

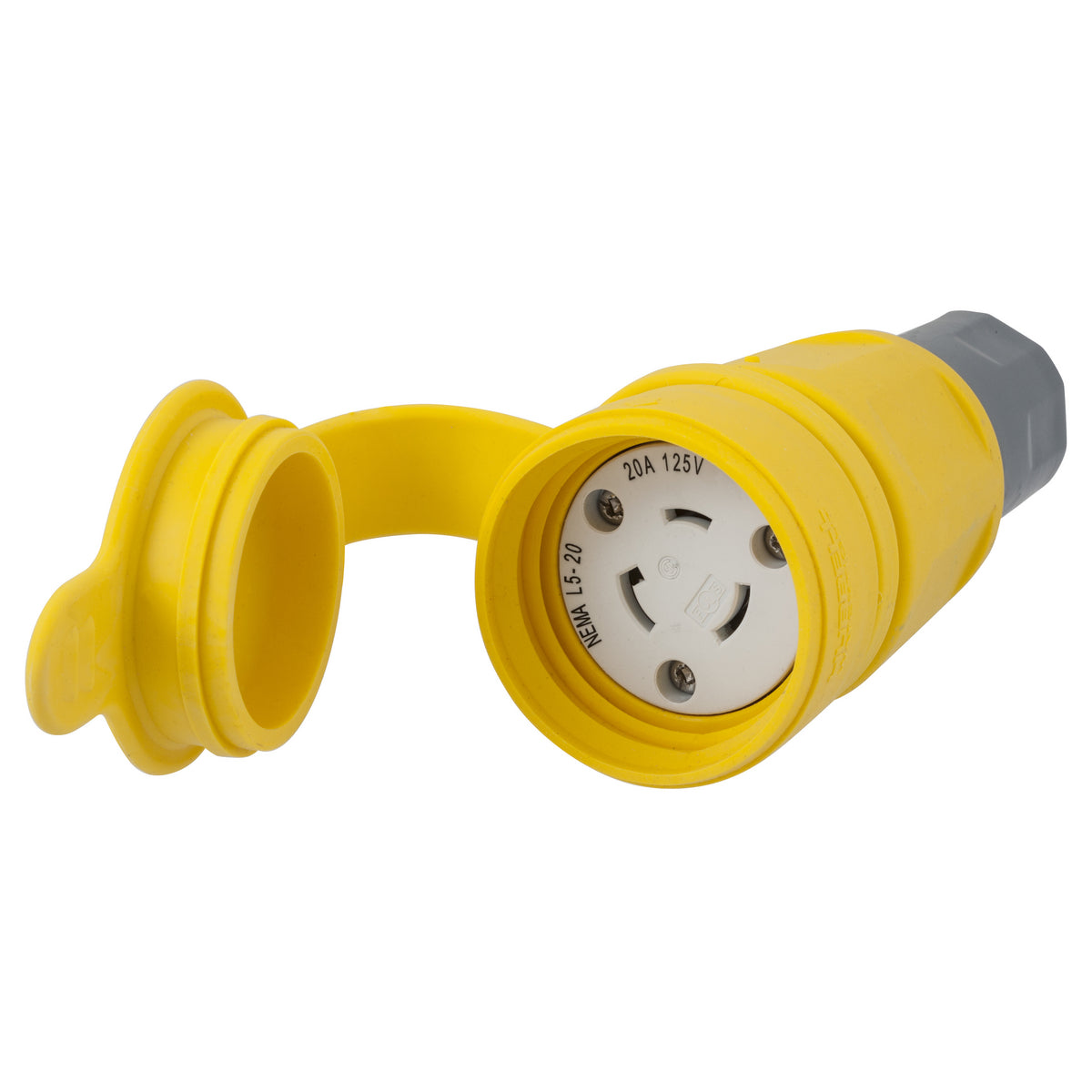

The Hubbell HBL27W47 is a NEMA L5-20R locking connector designed for reliable connections in demanding environments. This connector is rated for twenty amperes at one hundred twenty-five volts, making it suitable for various commercial and industrial applications. It features a dust and watertight design, ensuring protection in challenging conditions.
- Amperage rating: 20 A
- Dust/watertight sealing
- NEMA 4/4X/6/6P/12/IP65/IP66/IP67 enclosure rating
Product Highlights
This connector is ideal for use in wet or harsh environments, providing safe, isolated, and insulated connections.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
Product Name: HBL27W47 HUBBELL CONN, NEMA L5-20R, 20A 125V, YL
Technical Specifications
-
Voltage Rating: 125 VAC
-
Number of Poles: 2
-
Number of Wires: 3
-
Cord Diameter: 3/8 to 7/8 in
-
Temperature Rating: -40 to 75 deg C
-
Material: Elastomer/Composite
-
Dimensions: 2.51 x 2.51 x 5.69 in
-
Standards/Approvals: RoHS Compliant, UL 498, CSA C22.2 File No. 42
