Hubbell HBL2753 Locking Devices, Twist-Lock, Industrial, 30A 3-Phase Wye 120/208V AC Connector Body

Product Description

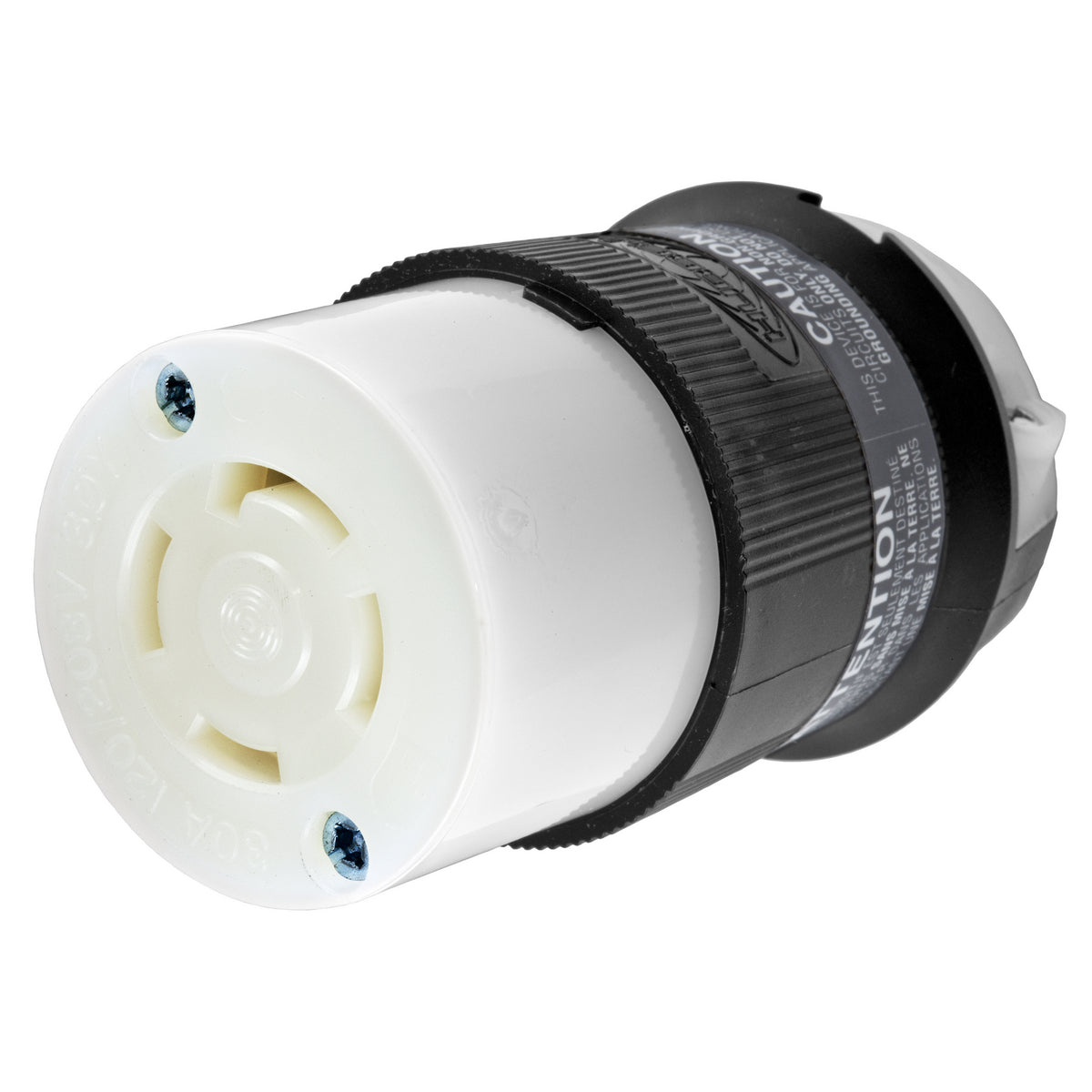

The Hubbell HBL2753 is a locking device that serves as a twist-lock industrial female connector body, rated for thirty amps and suitable for 120/208V AC systems. It features a robust design ideal for heavy-duty applications.

• Compatible with 3-phase electrical systems.
• Constructed with nylon for durability and chemical resistance.
• Easy installation with screw terminal connections.

Product Highlights

This connector provides reliable power connections in demanding environments.

Product Information

Standard Information

• Catalog Number: HBL2753
• Manufacturer: Hubbell Wiring Device-Kellems

Technical Specifications

• Amperage Rating: 30
• Voltage Rating: 120/208 Volt
• Number of Poles: 4
• Number of Wires: 4-Wire Non-Grounding
• Material: Nylon

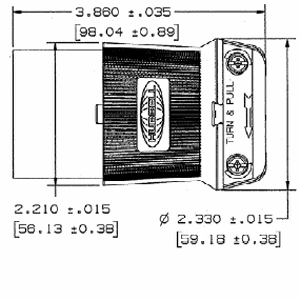

• Size: 2.33 inches x 2.33 inches x 3.86 inches
• Color: Black; White
• Temperature Rating: -40 to 75 degrees Fahrenheit
• Grounding: Grounding
• Application: Heavy Duty Industrial
• Mounting Type: Cord
• Cross Reference Products: L1830C
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
