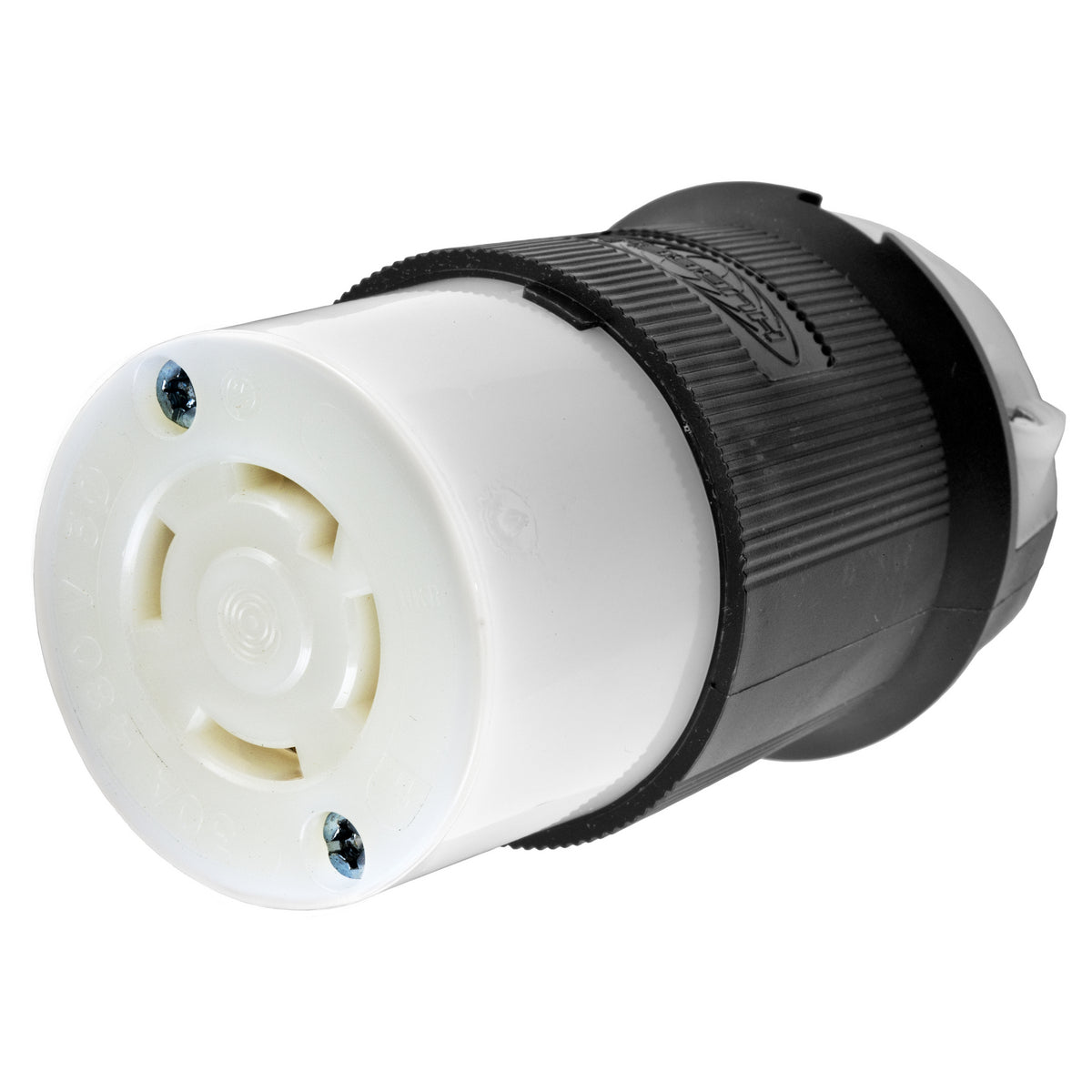

Hubbell HBL2733 HUB GRD TL CONN BODY 6534AH

Product Description

The Hubbell HBL2733 is a heavy-duty grounding cord mount locking connector. This device supports a voltage rating of four hundred eighty volts alternating current (VAC) and can handle an amperage of thirty amps. It features a robust design suitable for industrial environments where reliability is crucial.

• Pressure screw terminal for secure connections.
• NEMA L16-30R rating ensures compatibility with various applications.
• Temperature rating from negative forty to seventy-five degrees Celsius.

Product Highlights

The Hubbell HBL2733 is ideal for industrial wiring applications. Its durable construction and design allow for safe and effective use in demanding conditions.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78358503933

Technical Specifications

• Amperage Rating: 30 A
• Color: Black/White
• Cord Diameter: 0.63 to 1.2 inches
• Dimensions: 2.33 x 2.33 x 3.86 inches
• Enclosure: IP20
• Grade: Industrial
• Horsepower: 10 hp
• Material: Nylon
• NEMA Rating: L16-30R
• Number of Poles: 3
• Number of Wires: 4
• Series: HBL®
• Standards/Approvals: UL 498|Federal Specification W-C-596|CSA C22.2 No. 42|NEMA WD1/WD5|RoHS Compliant
• Temperature Rating: -40 to 75 degrees Celsius
• Terminal Type: Pressure Screw
• Type: Heavy Duty Grounding Cord Mount
• Voltage Rating: 480 VAC
