Product Description

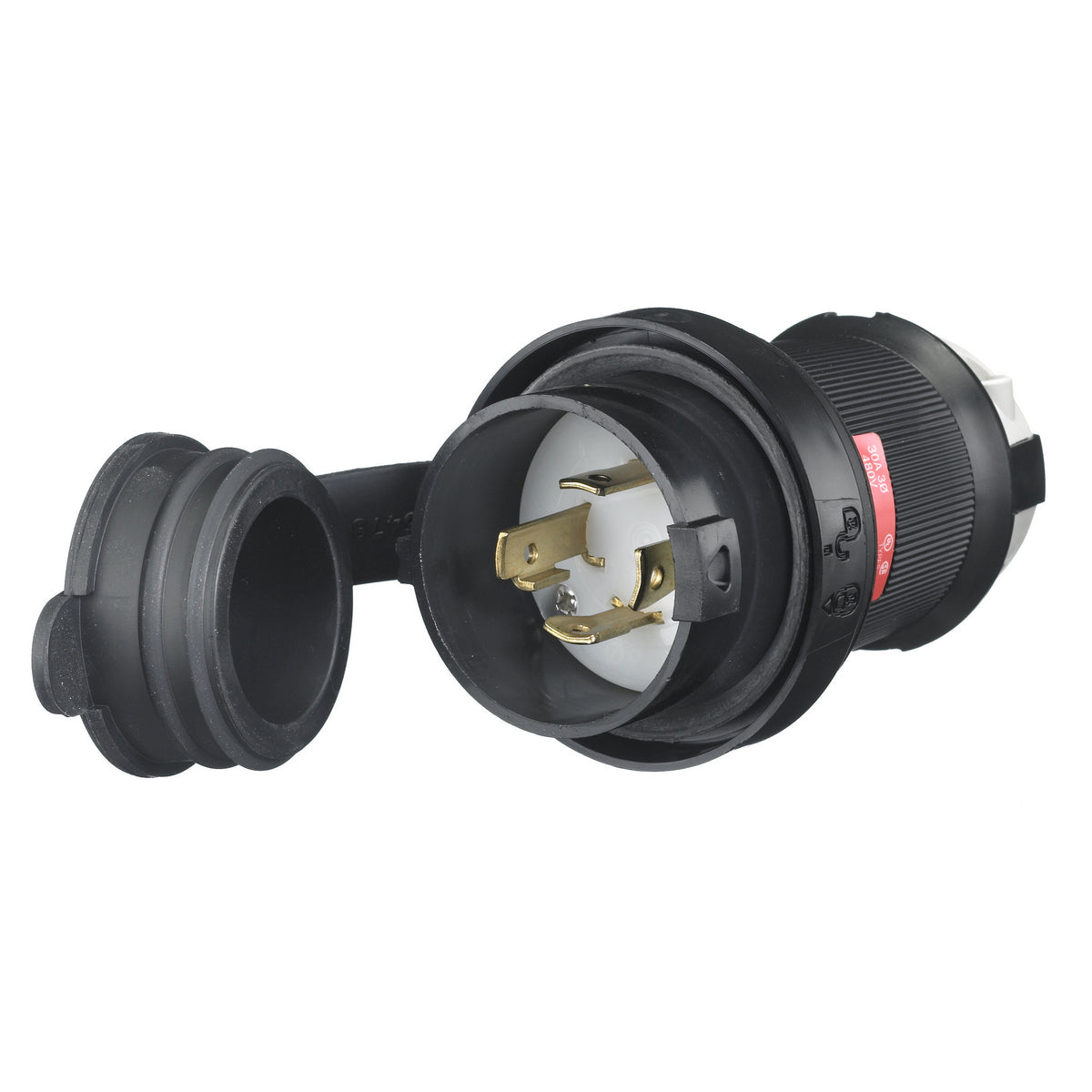

The Hubbel HBL2731SW is a locking plug designed for three-phase grounding applications. This watertight cord mount operates at four hundred eighty volts and thirty amps. It features three poles and four wires with a durable construction suitable for industrial environments.
- Temperature range of negative forty to seventy-five degrees Celsius
- Impact-resistant design to protect against bending and breaking
- Neoprene sealing gland for secure connections
Product Highlights
The locking plug offers robust features including a UL type 4X rating for environmental protection, ensuring reliable operation in demanding conditions.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
UPC: 78358523192
Technical Specifications
-
Amperage Rating: 30 A
-
Application: Power Connection Applications
-
Color: Black/White
-
Cord Diameter: 0.35 to 1.15 inches
-
Dimensions: 2.94 x 2.94 x 4.40 inches
-
Enclosure: NEMA 4/4X/12/IP66
-
Grade: Industrial
-
Horsepower: 10 hp
-
Material: Composite
-
NEMA Rating: L16-30P
-
Number of Poles: 3
-
Number of Wires: 4
-
Series: HBL®
-
Standards/Approvals: RoHS Compliant, UL 498, CSA C22.2 No. 42/0.17, UL94 V-0 Flammability Rating, Federal Specification W-C-596, NEMA WD1/WD5
-
Temperature Rating: -40 to 75 degrees Celsius
-
Terminal Type: Screw
-
Type: 3-Phase Grounding Male Standard Watertight Cord Mount
-
Voltage Rating: 480 VAC
