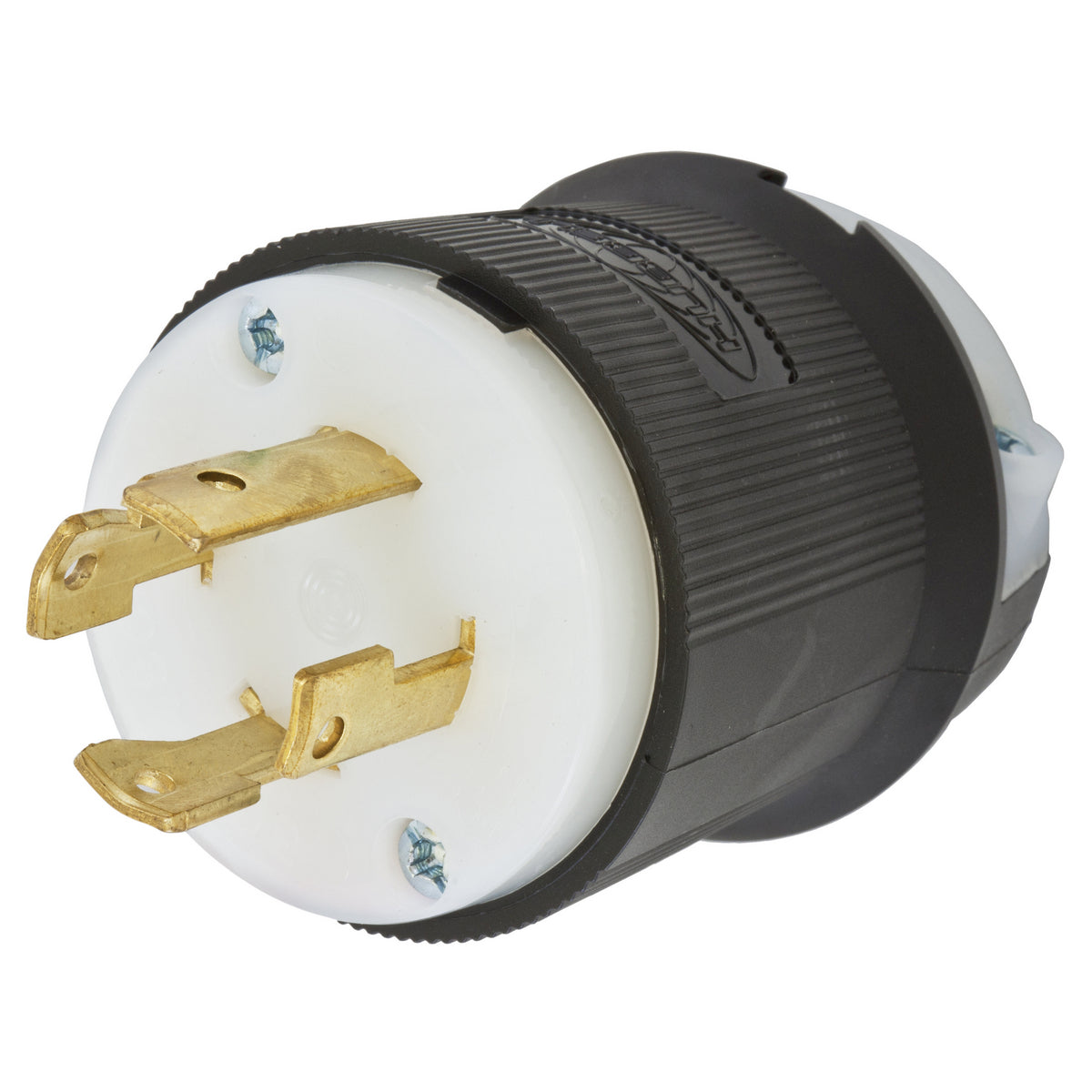

Hubbell HBL2731 30A 3Ph 480V AC Twist-Lock INSULGRIP Black Nylon Plug, Straight

Product Description

The Hubbell HBL2731 is a 30 Amp, three-phase, 480 Volt AC twist-lock plug. This locking device features a resin nylon construction for enhanced durability and longevity. The plug is designed with a ribbed nylon housing that offers a secure grip and resistance to impact and chemicals. It's compatible with L16-30P connections and is ideal for industrial applications.

• Current rating: 30 Amps
• Voltage rating: 480 Volts AC
• Wire size: 16 to 8 AWG

Product Highlights

This industrial-grade plug is suitable for use in heavy-duty environments, ensuring secure and reliable connections. It offers quick and easy installation with pressure screw terminals for electrical connections.

Product Information

Standard Information

• Material: Composite
• Grounding: Yes

Technical Specifications

• NEMA: L16-30P
• Number of Poles: 3 Pole
• Number of Wires: 4 Wire
• Environmental Conditions: Indoor Dry Unless Protected
• Applications: Extra Heavy Duty Industrial Application
• Operating Temperature: -40 degrees C
• Weight: 0.30 lbs
• Width: 2.5 inches
• Height: 2.75 inches
• Length: 2.33 inches
