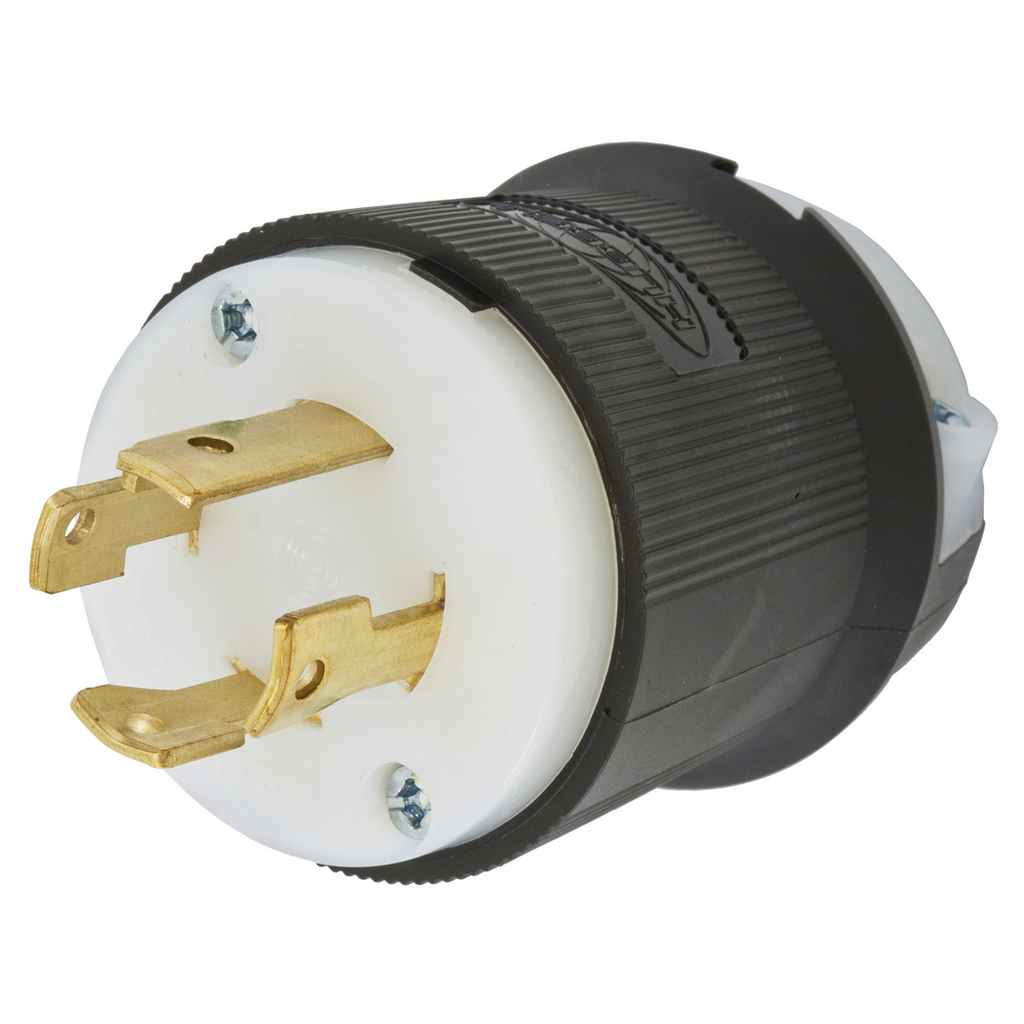

Hubbell HBL2721 30A 3Ph 250V AC Twist-Lock Insulgrip Black Nylon Plug

Product Description

The Hubbell HBL2721 is a 30 Amp, three-phase, 250 Volt AC twist-lock plug designed for industrial applications. This male plug offers a robust solution for heavy-duty electrical connections in various settings. It features a three-pole, four-wire grounding configuration and connects securely using a screw terminal. The plug is constructed from nylon and comes in black and white colors to blend well in any environment.

• 30 Amp current rating suitable for heavy-duty applications.
• Twist-lock mechanism ensures a secure connection.
• Compatible with wire sizes from sixteen to eight AWG.

Product Highlights

This product is reliable for industrial use, ensuring safety and efficiency in electrical connections.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Manufacturer: Hubbell Wiring Device

Technical Specifications

• Catalog Number: HBL2721
• Current Rating: 30 Amps
• Voltage Rating: 250 Volts
• Wattage: 7500 Watts
• Phase: Three Phase
• Poles: 3 Pole
• Wires: 4 Wire
• Wire Size: 16-8 AWG
• Material: Composite
• Weight: 0.25 pounds
• Color: Black, White
• Environmental Conditions: Indoor Dry Unless Protected
