Hubbell HBL2720AR Safety-Shroud Twist-Lock Locking Receptacle 3 hp (Angled)

Product Description

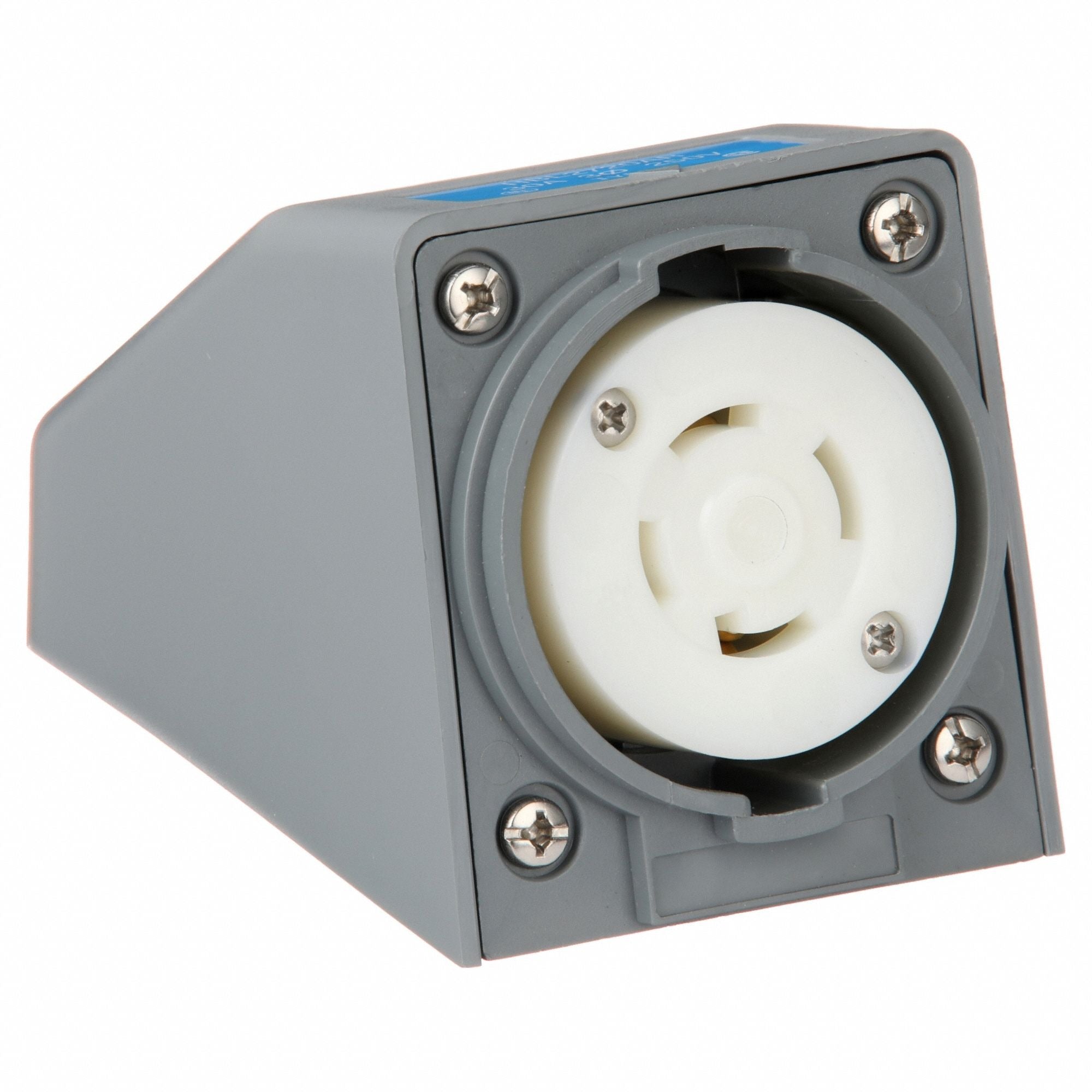

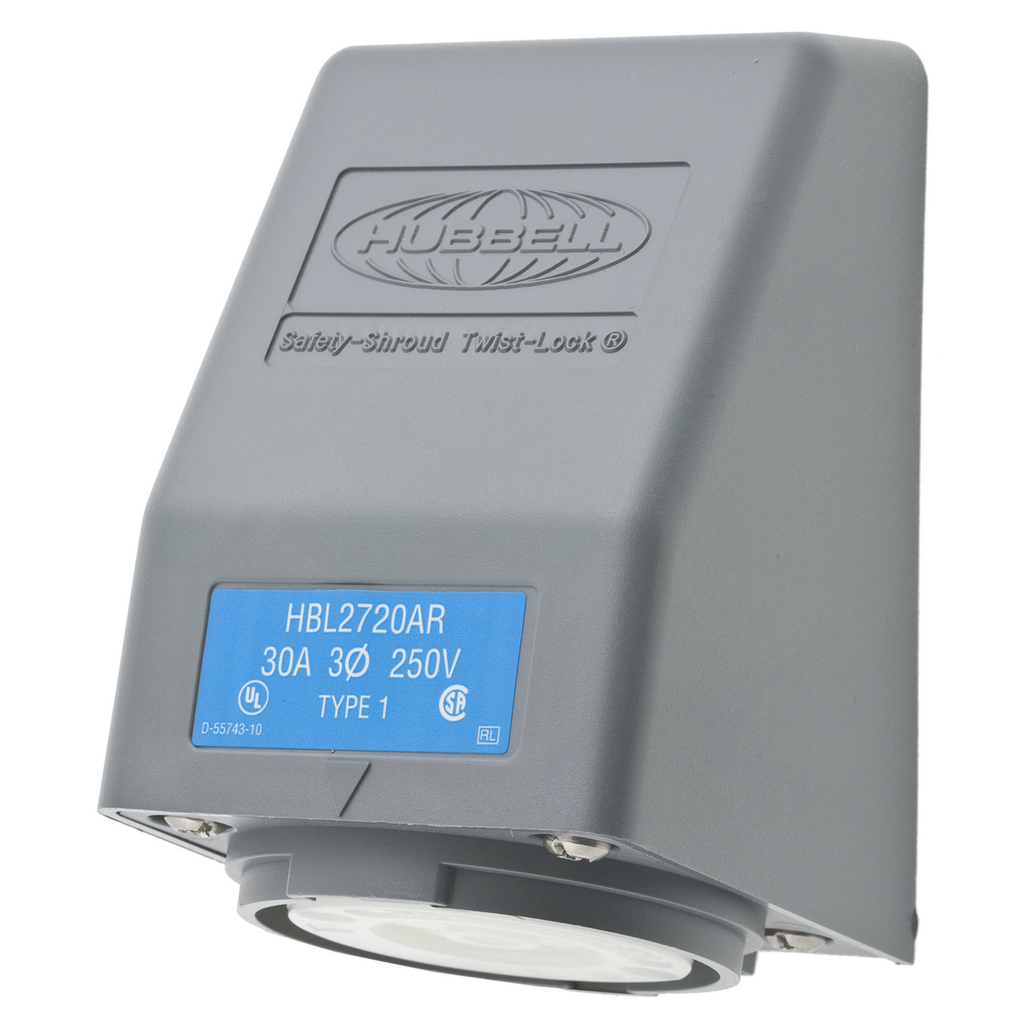

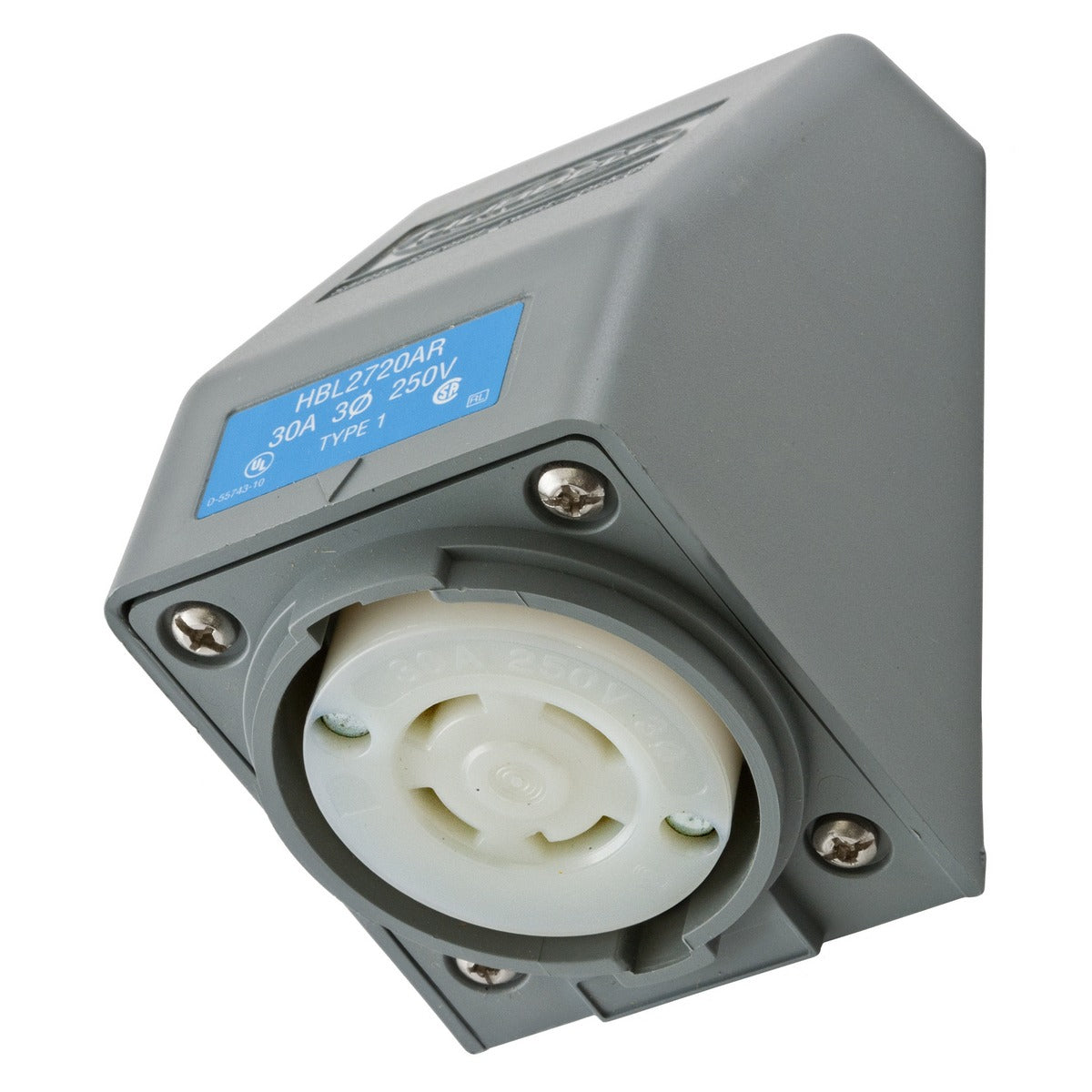

Hubbell HBL2720AR is a safety-shroud, angled twist-lock locking receptacle designed for three-phase power distribution. It is NEMA L15-30R rated for 250 VAC and 30 A, providing a 3-pole, 4-wire grounded connection for industrial indoor applications. The Valox thermoplastic housing is impact- and corrosion-resistant, and the device uses screw terminals for back wiring, accommodates #16 AWG to #8 AWG, and is rated for -40 to 75 deg C operation.

• NEMA L15-30R configuration: 250 VAC, 30 A, 3-pole 4-wire, grounded
• Shrouded angled Valox thermoplastic housing with alignment arrows and industrial IP20 suitability
• Screw terminal back wiring, brass contacts, accepts #16 AWG to #8 AWG, 2000 V dielectric withstand

Product Highlights

30 A, 250 VAC shrouded angled locking receptacle (L15-30R) with screw terminals and industrial Valox housing

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: HBL2720AR
• Country of Origin: United States
