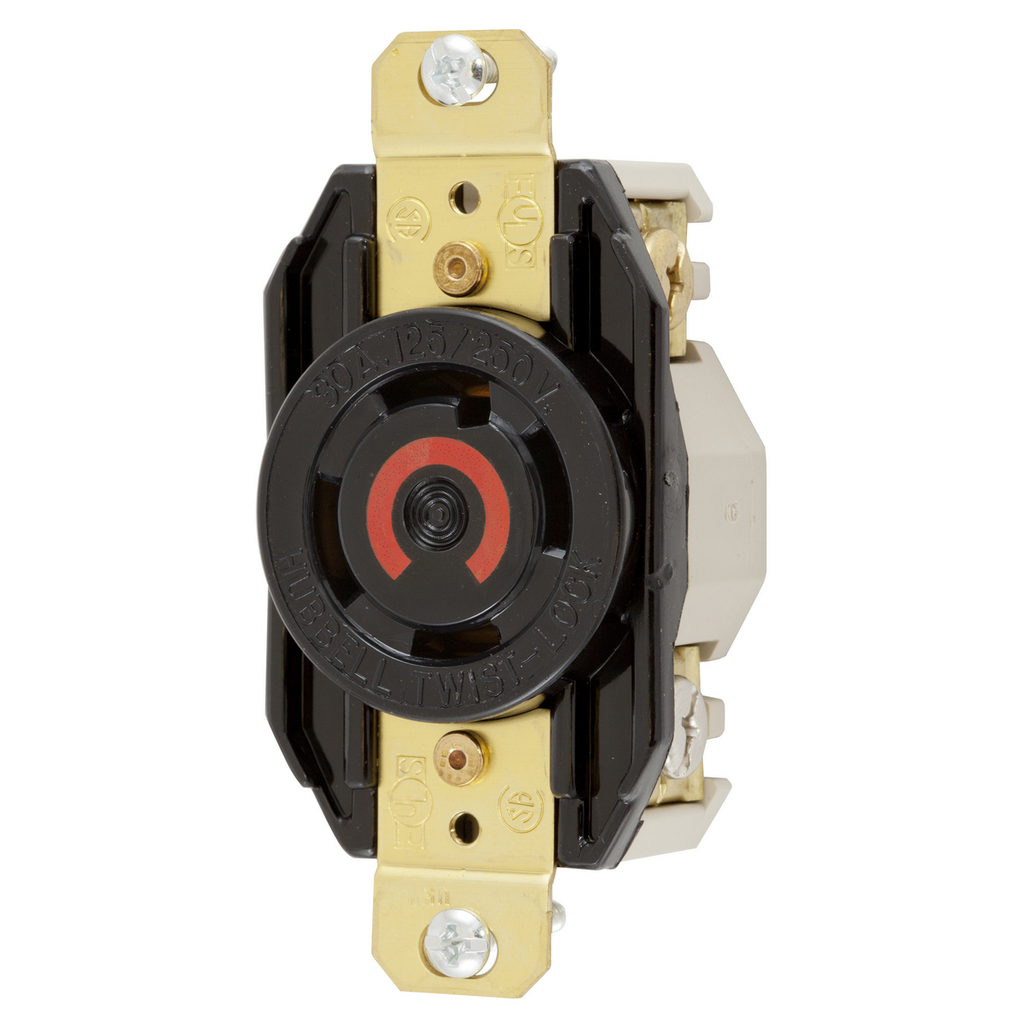

Hubbell HBL2710 30A 125/250V AC Twist-Lock Black Single Flush Receptacle

Product Description

The Hubbell HBL2710 is a twist-lock, black, single flush receptacle designed for industrial use. This receptacle supports a current of thirty amps at a voltage of one hundred twenty-five to two hundred fifty volts. It has a three-pole and four-wire grounding configuration, adhering to the NEMA L14-30R standard. It's suitable for use in heavy-duty applications and is made from durable thermoplastic materials.

• Design complies with CSA C22.2 No.42 and UL 498 standards.
• Features a wire restraint recess for both back and side wiring.
• Color coding by voltage simplifies device mating.

Product Highlights

The HBL2710 ensures reliable connections and reduces the risk of loosening over time. Its durable construction provides a lower resistance ground path, enhancing overall performance and safety in industrial settings.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Manufacturer: Hubbell Wiring Device

Technical Specifications

• Current: 30 Amp
• Voltage: 125/250 Volt
• Wattage: 7500 Watt
• Material: Nylon
• Dimensions: 3.28 x 1.9 x 1.31 inches
• Weight: 0.3 lb
• NEMA Rating: L14-30R
• Dielectric Strength: Withstands 2000V minimum
• Operating Temperature: -40 degrees C
• Environmental Conditions: Indoor Dry Unless Protected by Additional Means
• Wire Size: 16-8 AWG
