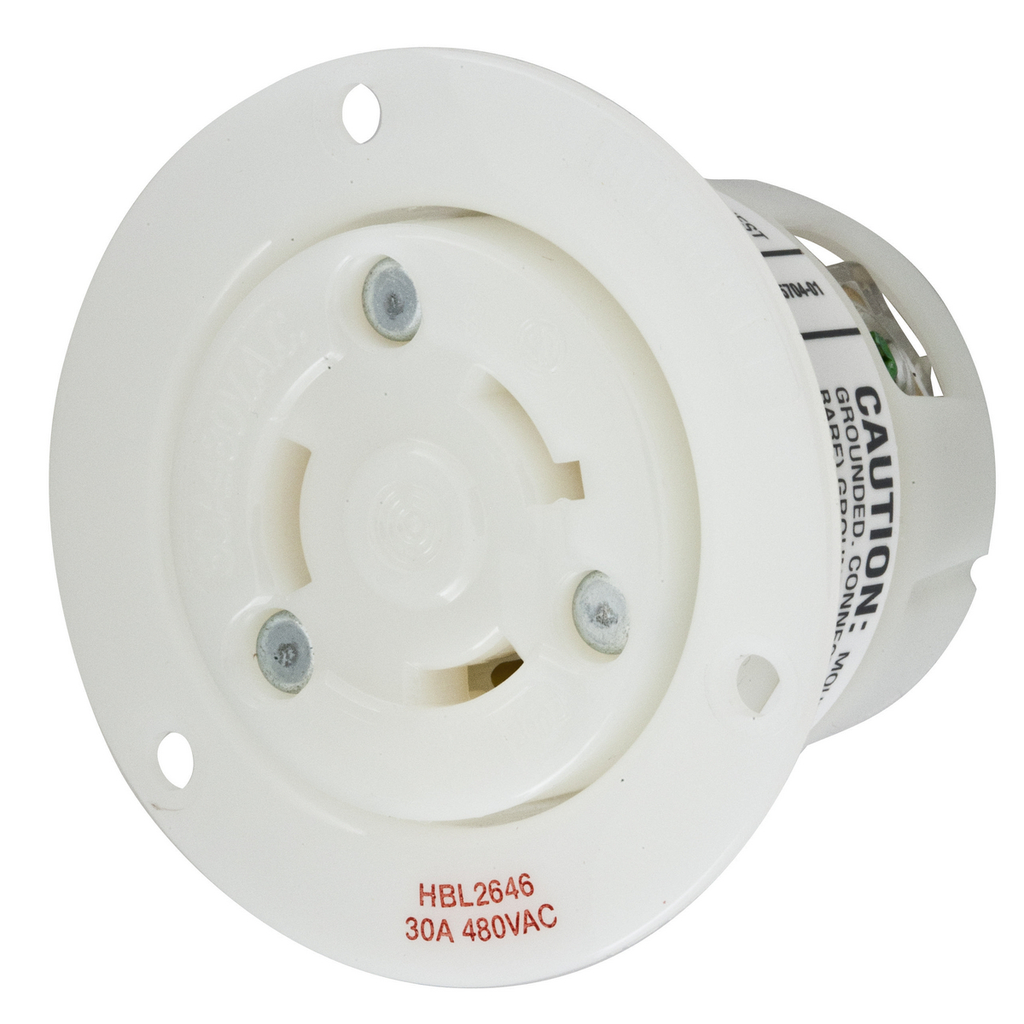

Hubbell HBL2646 30 Amp 480 Volt 2-Pole 3-Wire NEMA L8-30R White Locking Flanged Receptacle

Product Description

The Hubbell Wiring Device HBL2646 is a 30 Amp, 480 Volt flanged receptacle designed for locking connections. This device features a 2-pole, 3-wire configuration and is compliant with NEMA L8-30R standards. Ideal for industrial applications, it offers screw terminal connections that ensure reliable performance in demanding environments.

• Backwired terminations facilitate easy installation.
• Includes standard mounting screws for quick setup.
• Compatible with wire sizes from 16 to 8 AWG.

Product Highlights

Designed for use in harsh conditions, this receptacle has a dielectric strength that withstands up to 2,000 volts. It operates effectively between -40 degrees Celsius and higher temperatures, making it suitable for various indoor installations.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Manufacturer: Hubbell Wiring Device

Technical Specifications

• Current: 30 Amp
• Voltage: 480 Volt
• Wattage: 14400 Watt
• Material: Thermoplastic
• Number of Poles: 2 Pole
• Number of Wires: 3 Wire
• Size: Standard Sized
• Country of Origin: Puerto Rico
