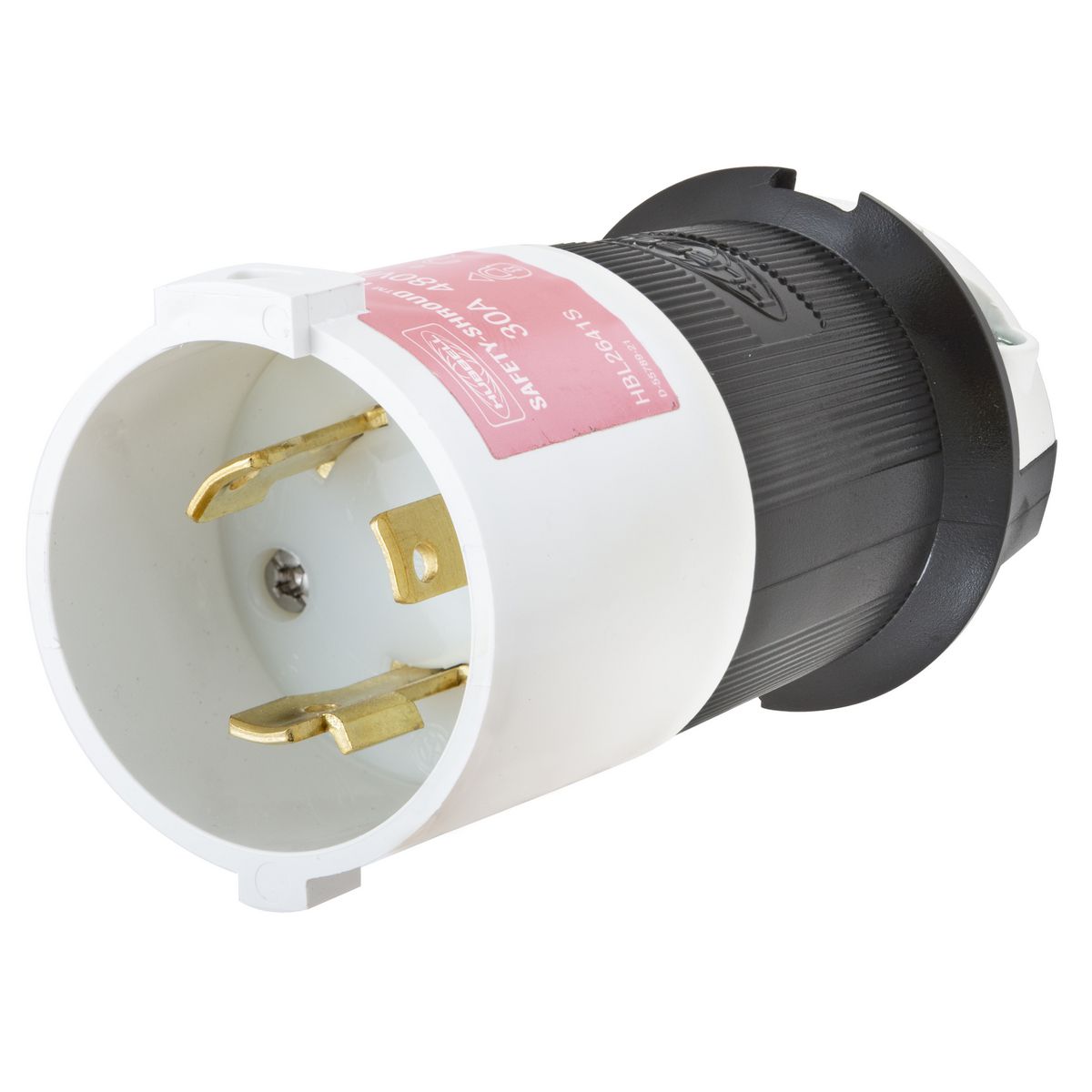

Hubbell HBL2641S LKG S/SHRD PLUG 30A 480V L8-30P

Product Description

The Hubbell HBL2641S is a wiring device designed for secure electrical connections. This locking plug is suitable for indoor environments, featuring a NEMA L8-30P rating. It operates at 480 VAC with a 30 amp current. The plug is made from composite materials and has a screw terminal for easy connections.

• Compatible with 10 to 8 AWG wire
• Locking design enhances safety
• Industrial grade durability

Product Highlights

This locking plug offers robustness and reliability in various applications.

Product Information

Standard Information

• Manufacturer: Hubbell
• Part Number: HBL2641S

Technical Specifications

• Voltage Rating: 480 VAC
• Amperage Rating: 30 A
• Application: Indoor Environment
• Color: Black/White
• Cord Diameter: 0.36 to 0.93 inches
• Dimensions: 2.04 inches Diameter x 4.21 inches Length
• Grade: Industrial
• Material: Composite
• NEMA Rating: L8-30P
• Number of Poles: 2
• Number of Wires: 3
• Standards/Approvals: CSA Certified, RoHS Compliant, UL Listed
• Terminal Type: Screw
• Type: 1-Phase Grounding Male Standard Cord Mount
