Hubbell HBL26410 60 Amp 600 Volt 3-Pole 4-Wire Locking Receptacle

Product Description

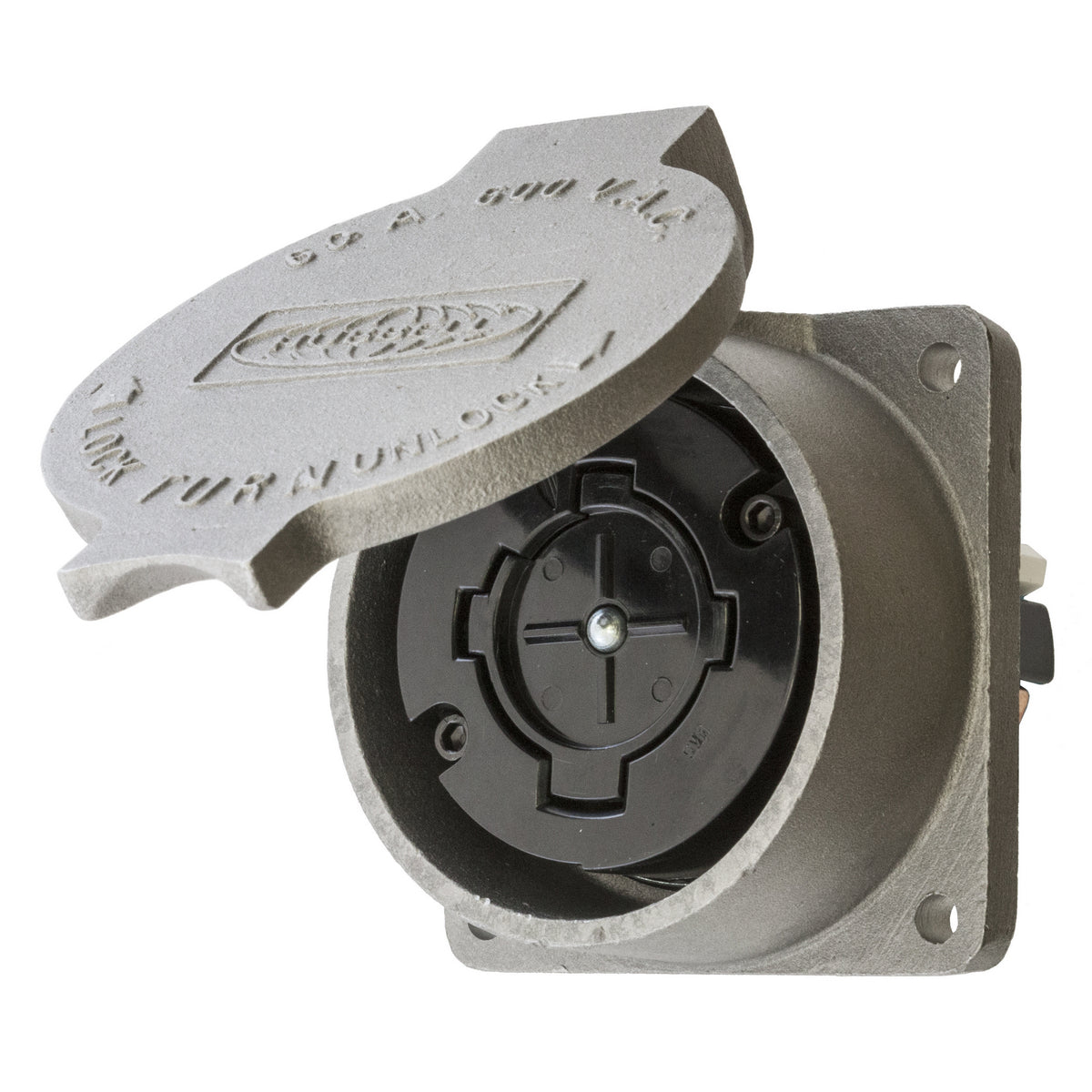

The Hubbell HBL26410 is a 60 Amp, 600 Volt locking receptacle. It is designed for heavy-duty industrial applications. This 3-pole, 4-wire receptacle features a black phenolic interior and a short aluminum housing with a lift cover. It is suitable for ground connections and uses screw terminals for secure wiring. The Hubbell lock design enhances safety in various environments.

• Spring-loaded safety shutter prevents arcing during connection.
• Retains power mechanical cord grips for enhanced strain relief.
• Meets CSA and UL standards for electrical safety.

Product Highlights

Ideal for harsh conditions, the Hubbellock design ensures reliable performance and safety.

Product Information

Standard Information

• Catalog Number: HBL26410
• Manufacturer: Hubbell Wiring Device-Kellems

Technical Specifications

• Amperage Rating: 60 Amp
• Voltage Rating: 600 Volt
• Wattage: 36000 Watt
• Current: 60 Amp
• Material: Aluminum, Composite
• Grounding: Grounding
• Wire Size: 8-4 AWG
• Number of Wires: 4 Wire
• Number of Poles: 3 Pole
• Environmental Conditions: Indoor Dry Unless Protected by Additional Means
