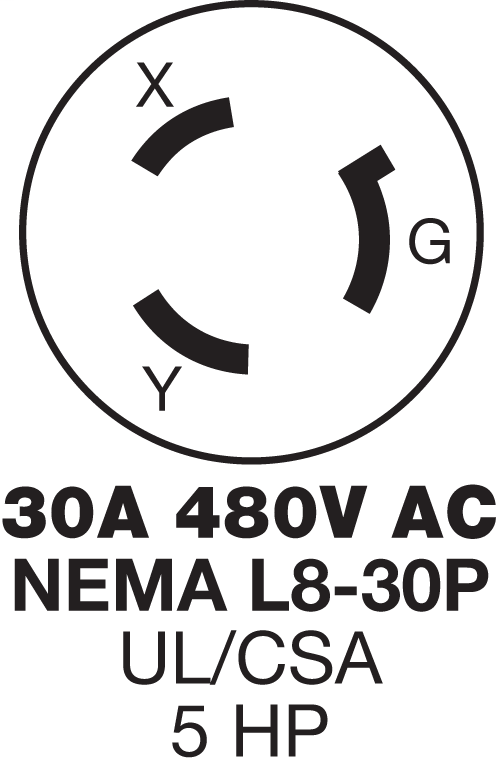

Hubbell HBL2641 HWD 30 Amp 480 Volt 2-Pole 3-Wire NEMA L8-30P

Product Description

The Hubbell Wiring Device-Kellems HBL2641 is a twist-lock plug designed for use in various industrial applications. This device features a one-phase grounding cord mount configuration with a voltage rating of four hundred eighty VAC and an amperage rating of thirty A. It is equipped with two poles and three wires, making it suitable for heavy-duty power connection tasks.

• Durable nylon construction for industrial use.
• IP20 enclosure for enhanced protection.
• Cord diameter capability ranges from zero point thirty-six inches to zero point ninety-three inches.

Product Highlights

Designed for easy installation, the HBL2641 offers superior strain protection through its cord grip design. The dust shield keeps the wiring chamber safe from contaminants and aids in maintaining performance.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Type: 1-Phase Grounding Cord Mount

Technical Specifications

• MPN: HBL2641
• Voltage Rating: 480 VAC
• Amperage Rating: 30 A
• Number of Poles: 2
• Number of Wires: 3
• Temperature Rating: -40 to 75 degrees Celsius
• Cord Diameter: 0.36 to 0.93 inches

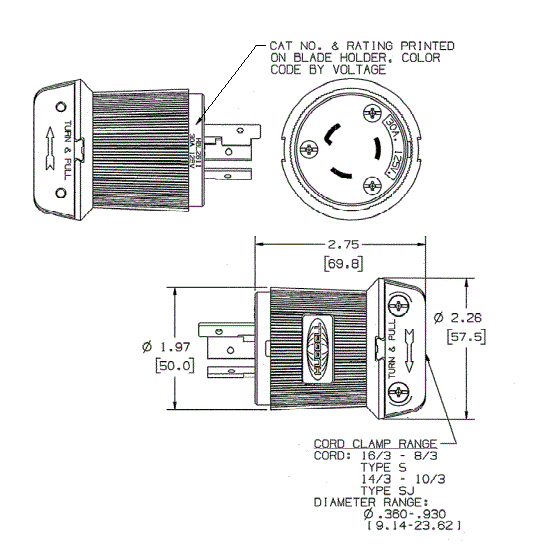

• Dimensions: 2.26 in L x 2.26 in W x 2.75 in H
