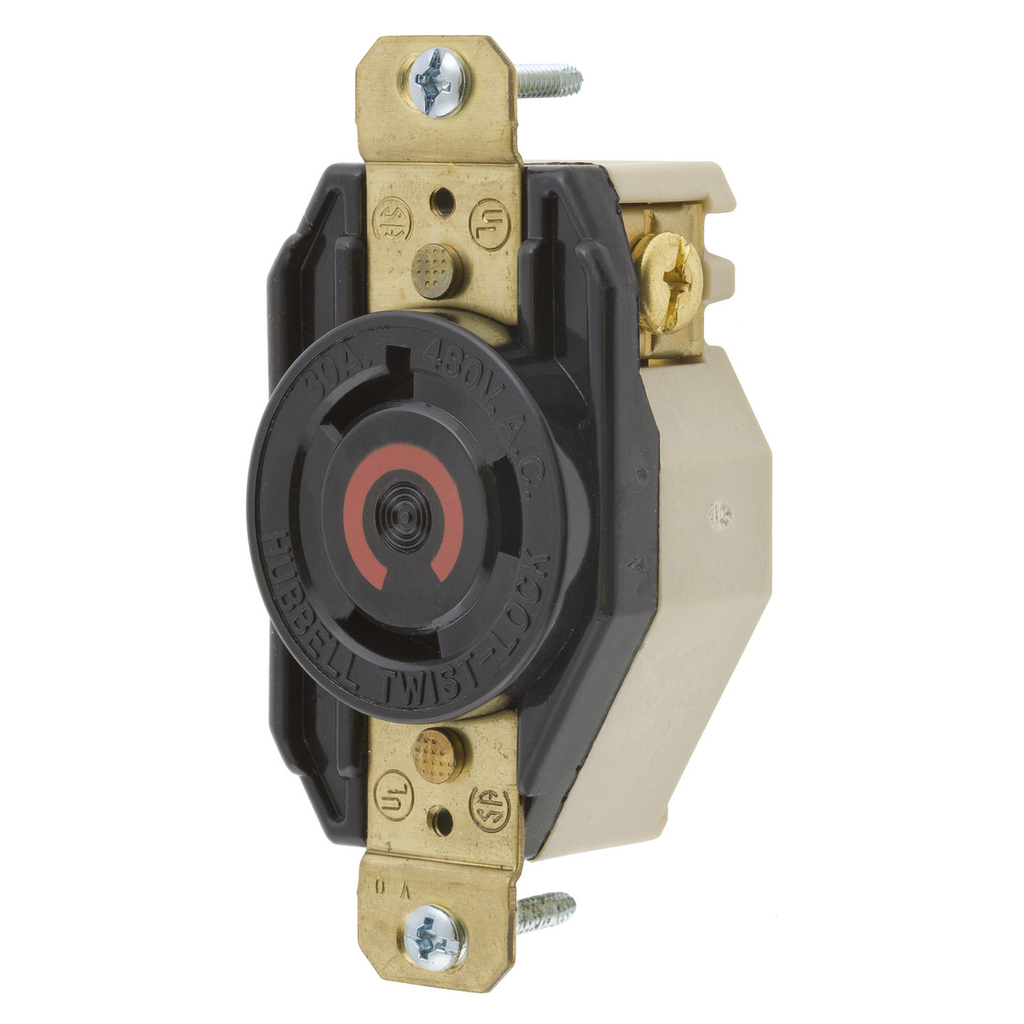

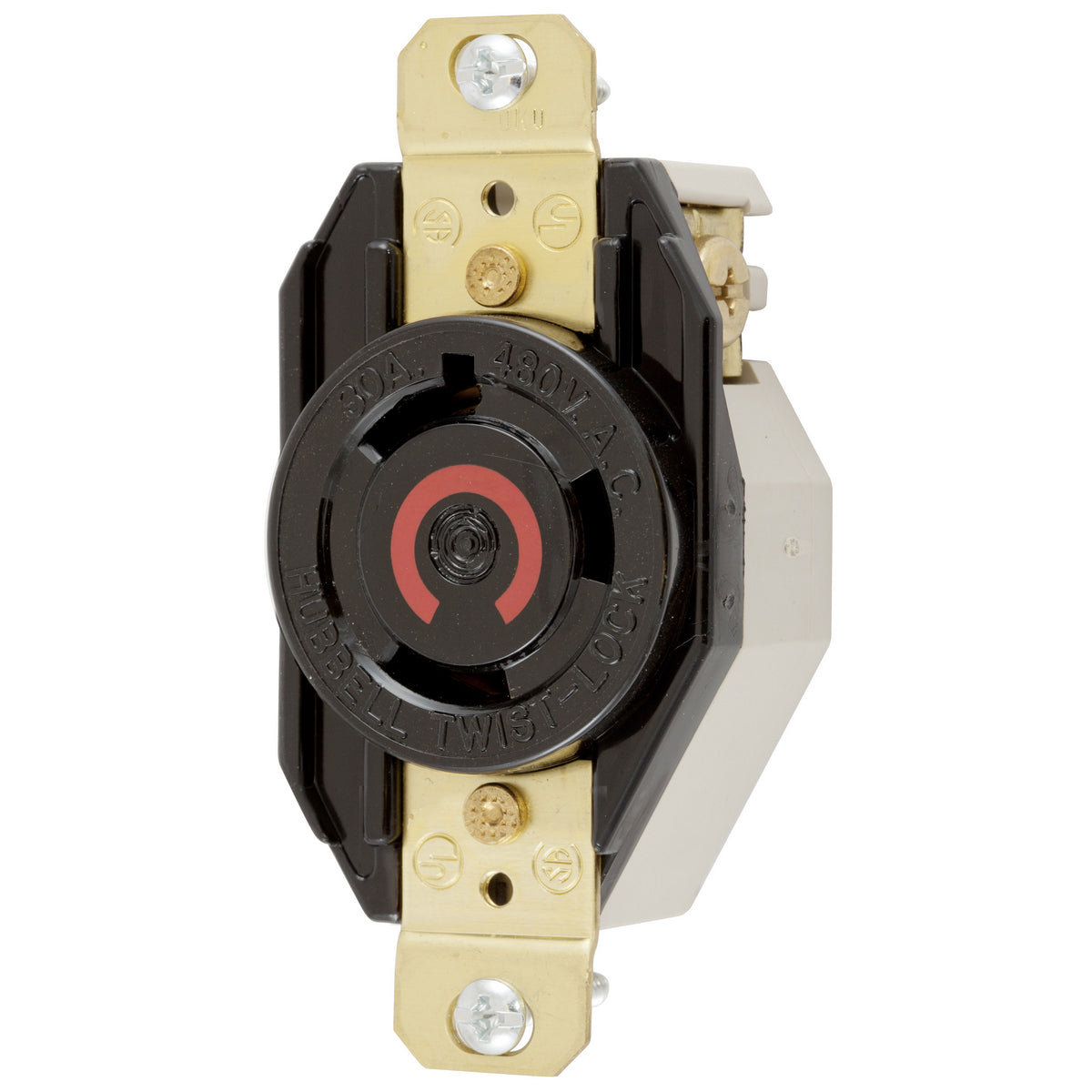

Hubbell HBL2640 30 Amp 480 Volt 2-Pole 3-Wire NEMA L8-30R Black Single Flush Locking Receptacle

Product Description

The Hubbell HBL2640 is a reliable 30 Amp and 480 Volt receptacle. It features a twist-lock design and is engineered for heavy-duty use. This single flush locking receptacle is ideal for industrial applications requiring a secure connection.

• Designed for 30 Amp and 480 Volt operations
• Constructed with thermoplastic material for durability
• Meets CSA and UL standards for safety

Product Highlights

This product is built to withstand challenging conditions. It supports back and side wiring, ensuring secure terminal connections.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Type: Twist-Lock

Technical Specifications

• Amperage: 30 Amp
• Voltage: 480 Volt
• Weight: 0.25 lb
• Length: 3.28 inches
• Width: 1.9 inches
• Height: 1.31 inches
• Material: Thermoplastic
• NEMA Rating: L8-30R
• Environmental Conditions: Indoor Dry Unless Protected by Additional Means
• Operating Temperature: -40 degrees C
• Dielectric Strength: Withstands 2,000V minimum
• Number of Poles: 2 Pole
• Number of Wires: 3 Wire Grounding
