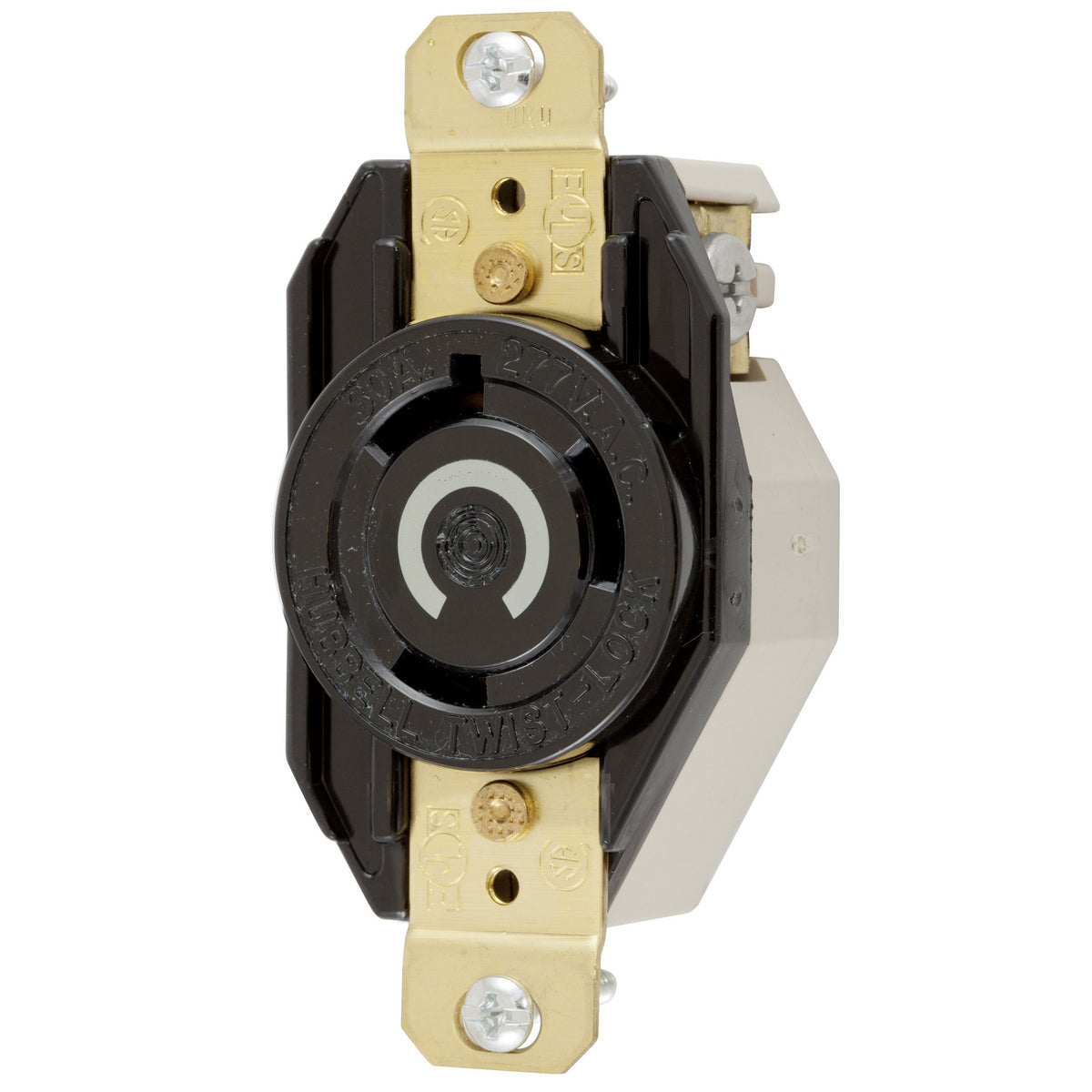

Hubbell HBL2630 HUB LKG RECPT 2P3W L7-30R

Product Description

The Hubbell HBL2630 is a locking receptacle designed for industrial applications. It is a 1-phase flush mount grounding heavy-duty single screw mount locking receptacle rated at two hundred seventy-seven volts AC and thirty amperes. This device features NEMA L7-30R rating, making it suitable for both residential and commercial use.

• Temperature rating from negative forty to seventy-five degrees Celsius.
• Industrial-grade materials and build.
• Rated for three horsepower.

Product Highlights

This receptacle is designed for reliable performance in heavy-duty applications, ensuring safety and efficiency in electrical systems.

Product Information

Standard Information

• Manufacturer: Hubbell
• MPN: HBL2630

Technical Specifications

• Amperage Rating: 30 A
• Voltage Rating: 277 VAC
• Horsepower: 3 hp
• Number of Poles: 2
• Number of Wires: 3
• Enclosure: NEMA 4X/12/IP20
• Material: Nylon
• Dimensions: 3.28 x 1.7 x 1.31 inches
• Temperature Rating: -40 to 75 degrees Celsius
• Standards/Approvals: UL 498, Federal Specification W-C-596, CSA C22.2 No. 42, NEMA WD1/WD5, RoHS Compliant
