Hubbell hbl2620sw 30A 250V Nema L6-30R Locking Receptacle

Product Description

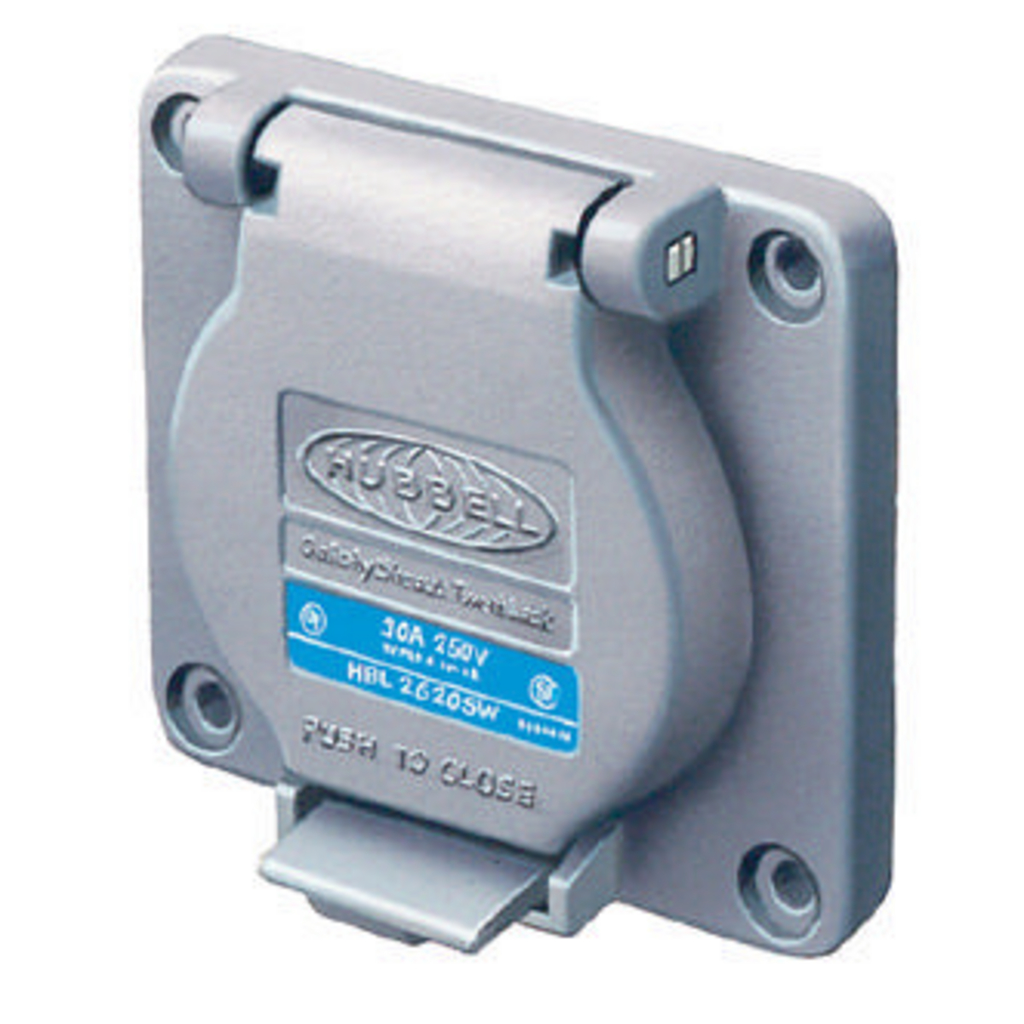

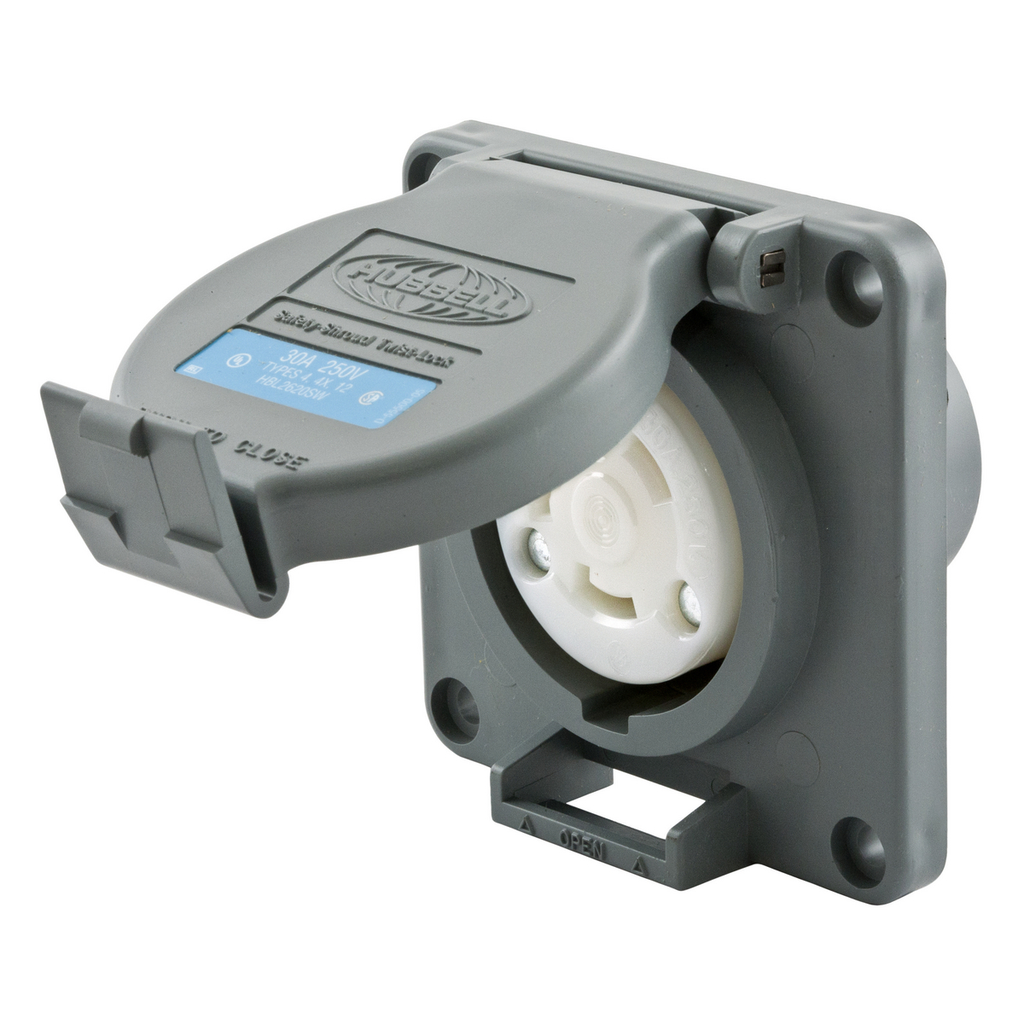

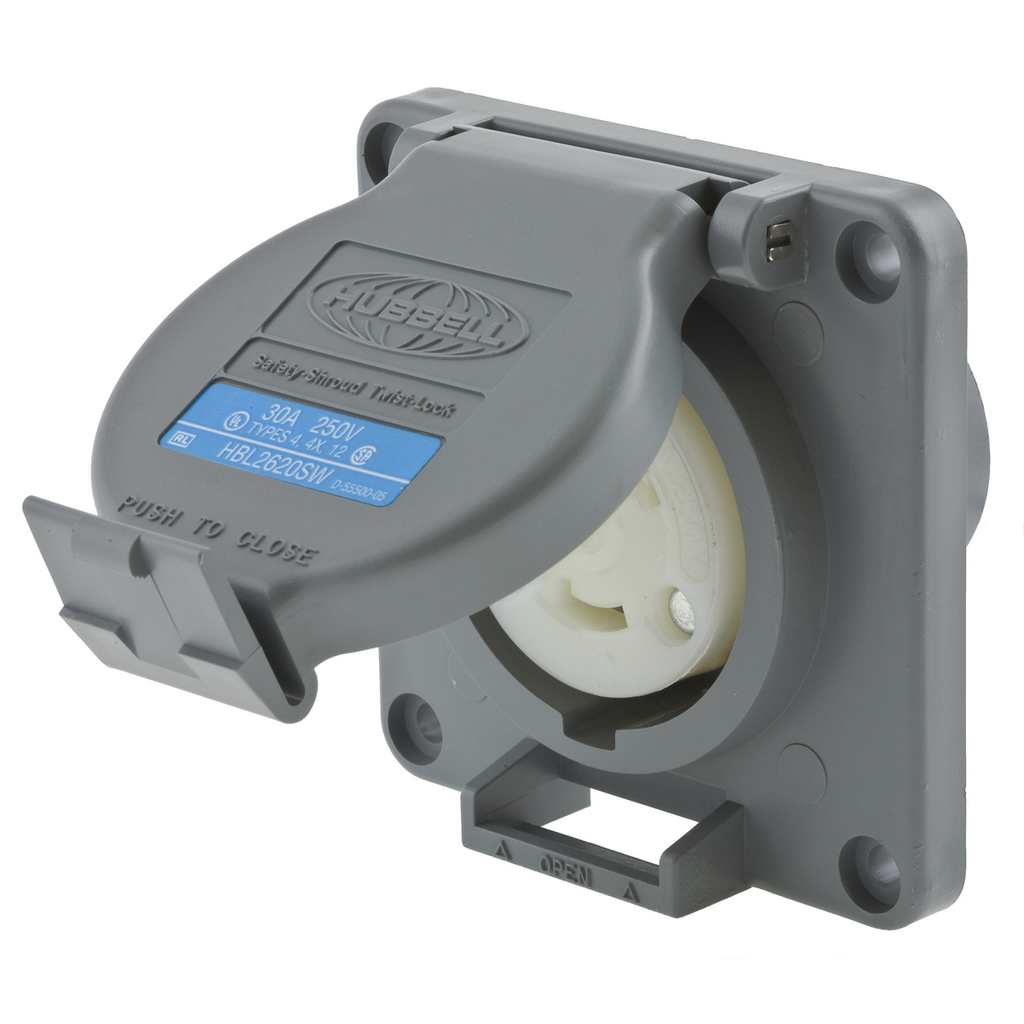

The HUBBELL hbl2620sw is a heavy-duty, watertight twist-lock receptacle rated at 30 amps and 250 volts AC. It carries a NEMA L6-30R configuration with a 2-pole, 3-wire grounding design and connects via screw terminals accepting 12 to 8 AWG conductors. The housing and flange are constructed from PBT thermoplastic, providing resistance to moisture and impact in demanding environments. A safety-shroud design adds mechanical protection against accidental contact and water intrusion. Licensed electricians install this receptacle in industrial and commercial applications where a secure, vibration-resistant locking connection is required. The unit is rated for 7,500 watts and 2 horsepower at single-phase, 250-volt service.

The hbl2620sw is intended for heavy-duty industrial and commercial environments where watertight integrity is critical. Typical installations include portable generator hookups, industrial machinery, outdoor power distribution panels, and job-site power stations operating on 250-volt single-phase circuits. Its shrouded construction is suited for wet or damp locations where standard straight-blade receptacles are not appropriate. Surface-mount screw installation makes it compatible with standard industrial enclosures and weatherproof outlet boxes.

Key Features

• NEMA L6-30R twist-lock configuration prevents accidental disconnection under vibration or load
• Watertight safety-shroud housing protects against moisture ingress in wet and damp locations
• PBT thermoplastic construction provides impact resistance and long service life in industrial environments
• Screw terminal connections accept 12 to 8 AWG conductors for secure, code-compliant wiring
• Rated to withstand 2,000 volts minimum dielectric strength
• Operating temperature rated to -40 degrees C for cold-environment installations

Compatibility

Designed as an OEM-style industrial replacement or new-installation receptacle for 2-pole, 3-wire NEMA L6-30R locking receptacle applications on 250-volt single-phase circuits.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the circuit at the breaker panel and verify zero voltage with a meter before beginning work. Use the correct conduit fittings and gaskets to maintain the watertight rating of the enclosure. Do not exceed the 30-amp circuit rating or the 8 AWG minimum conductor size specified for this receptacle.

Technical Specifications

• Amperage: 30 amps
• Voltage: 250 volts AC
• Wattage: 7,500 watts
• Horsepower Rating: 2 hp
• NEMA Configuration: L6-30R
• Number of Poles: 2-pole
• Number of Wires: 3-wire grounding
• Number of Phases: 1-phase
• Conductor Size: 12 to 8 AWG
• Terminal Type: Screw terminal
• Mounting Type: Screw, surface
• Material: Thermoplastic (PBT)
• Dielectric Strength: Withstands 2,000 volts minimum
• Operating Temperature: -40 degrees C
• Grade: Industrial
• Color: Gray

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: hbl2620sw
