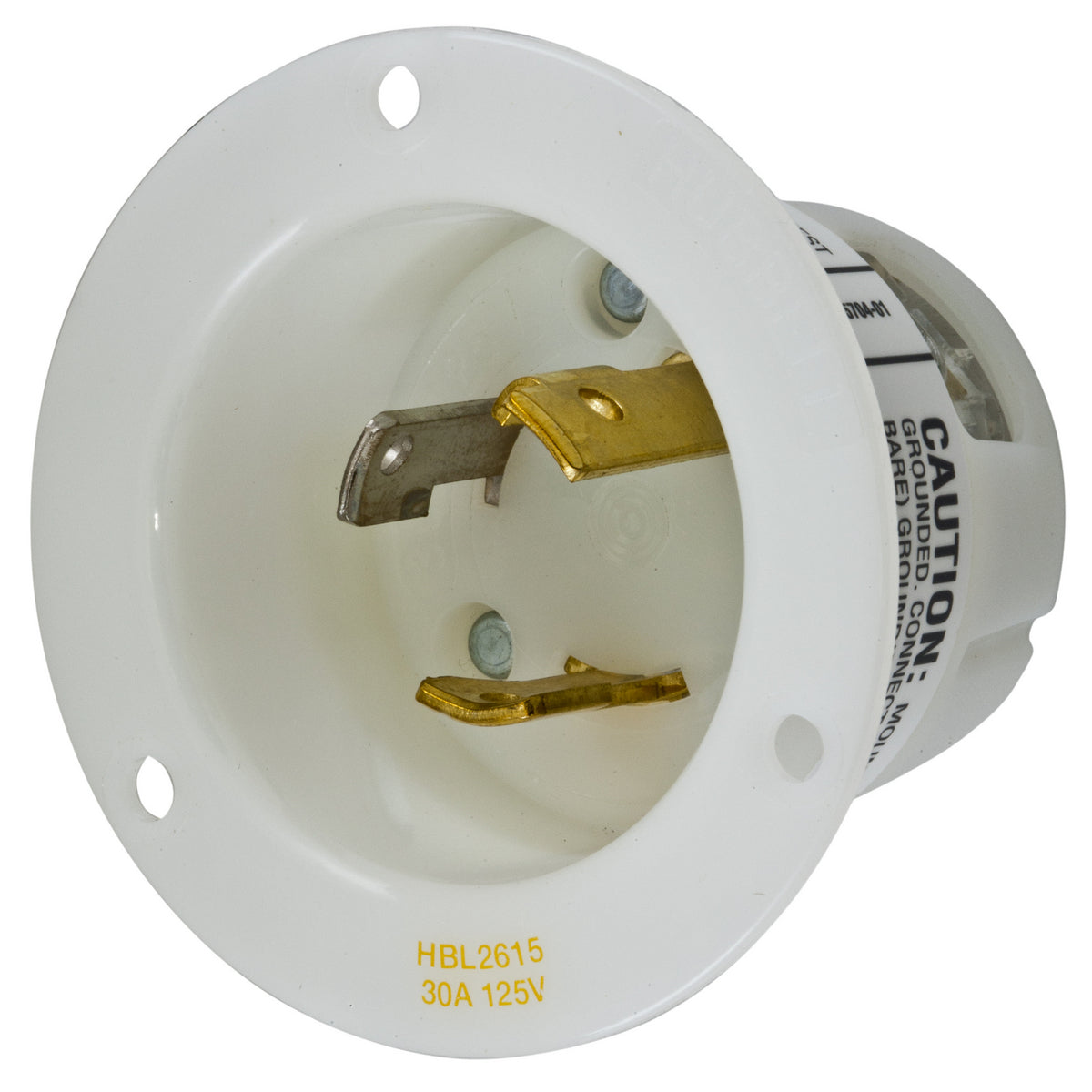

Hubbell HBL2615 HUB 3W 30A-125V Flanged Inlet

Product Description

The Hubbell HBL2615 is a locking flanged inlet designed for high-demand applications. It operates at 125 VAC and supports up to thirty amps. This unit is suitable for industrial environments and provides a reliable connection for electrical devices.

• Heavy duty construction for industrial applications.
• Meets L5-30P NEMA rating standard.
• Rated for use in temperatures from negative forty to seventy-five degrees Celsius.

Product Highlights

This flanged inlet enhances safety and performance in demanding tasks. It features an IP20 enclosure and durable nylon construction.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78358503879

Technical Specifications

• MPN: HBL2615
• Amperage Rating: 30 A
• Voltage Rating: 125 VAC
• Horsepower: 2 hp
• Dimensions: 2.88 x 2.88 x 2.09 inches
• Enclosure: IP20
• Material: Nylon
• Number of Poles: 2
• Number of Wires: 3
• Temperature Rating: -40 to 75 degrees Celsius
• NEMA Rating: L5-30P
• Application: Extra Heavy Duty Industrial Applications
• Series: HBL®
• Standards: UL 498 Listed, Federal Specification W-C-596, CSA C22.2 No. 42 Certified, NEMA WD1/WD5, RoHS Compliant
