Product Description

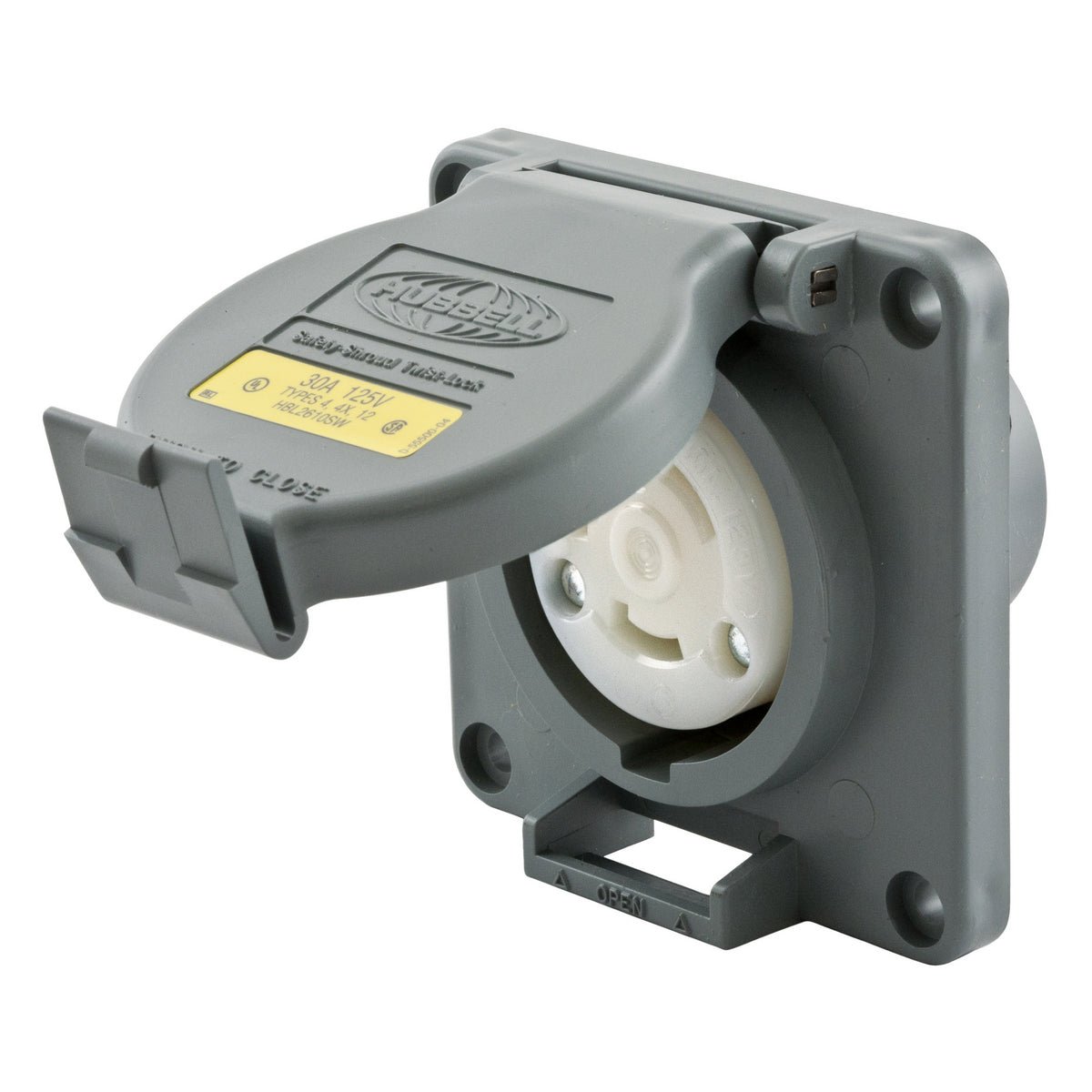

The Hubbell HBL2610SW is a locking receptacle designed for heavy-duty applications. It features a one-phase heavy-duty flanged grounding standard design. This locking receptacle operates at a voltage of 125 VAC and a current of 30 A. It is suitable for indoor dry environments and is rated for industrial use. Its robust construction includes a shrouded watertight design ensuring durability and safety in various settings.
- Designed for heavy-duty industrial environments
- IP20 enclosure protecting against dust and moisture
- Temperature rating of -40 to 75 degrees Celsius
Product Highlights
The HBL2610SW features an alignment arrow system that indicates proper connection. It also has a catalog number and voltage rating that remain visible even in use. The receptacle's thermoplastic housing ensures high impact resistance.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
UPC: 78358523158
Technical Specifications
-
Amperage Rating: 30 A
-
Application: Indoor Dry Environment
-
Color: Gray/White
-
Dimensions: 3.75 inches x 3.75 inches x 2.69 inches
-
Enclosure: IP20
-
Grade: Industrial
-
Horsepower: 2 hp
-
Manufacturer Part Number: HBL2610SW
-
Material: Valox
-
NEMA Rating: L5-30R
-
Number of Poles: 2
-
Number of Wires: 3
-
Standards/Approvals: UL 498, CSA C22.2 No. 42, Federal Specification W-C-596, NEMA WD1/WD5, RoHS Compliant, UL94 V-2 Flammability Rating
-
Temperature Rating: -40 to 75 degrees Celsius
-
Terminal Type: Screw
-
Type: 1-Phase Heavy Duty Flanged Grounding Standard Single Watertight Screw Mount
-
Voltage Rating: 125 VAC
