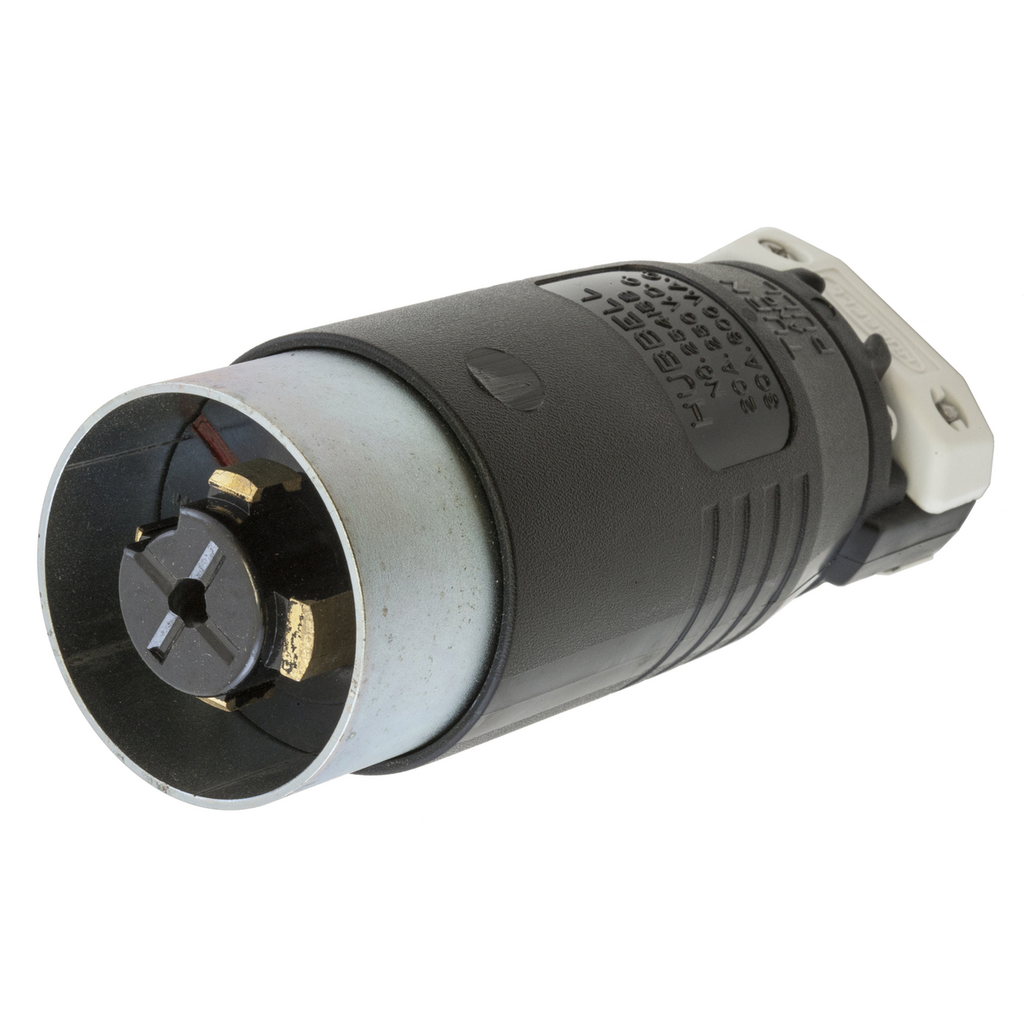

Hubbell HBL25415B 3-Phase Heavy Duty Grounding Cord Mount Locking Plug 30 A 600 VAC/250 VDC

Product Description

The Hubbell Wiring Device-Kellems HBL25415B is a 3-phase heavy duty grounding cord mount locking plug. This plug is rated for 600 VAC and 250 VDC with a current capacity of 30 A. It features five poles and five wires, designed for industrial use.

• Complies with UL 498 and CSA standards
• IP30 rated for reliable performance
• Wire size range of ten to six AWG

Product Highlights

This locking plug ensures a secure connection and includes pressure screw terminals for dependable wire termination.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Type: 3-Phase Heavy Duty Grounding Cord Mount

Technical Specifications

• Voltage Rating: 600 VAC/250 VDC
• Amperage Rating: 30 A
• Number of Poles: 5
• Number of Wires: 5
• Temperature Rating: -40 to 75 degrees C
• Material: Nylon
• Enclosure: IP30
• Dimensions: 2.5 x 2.5 x 6.56 inches
