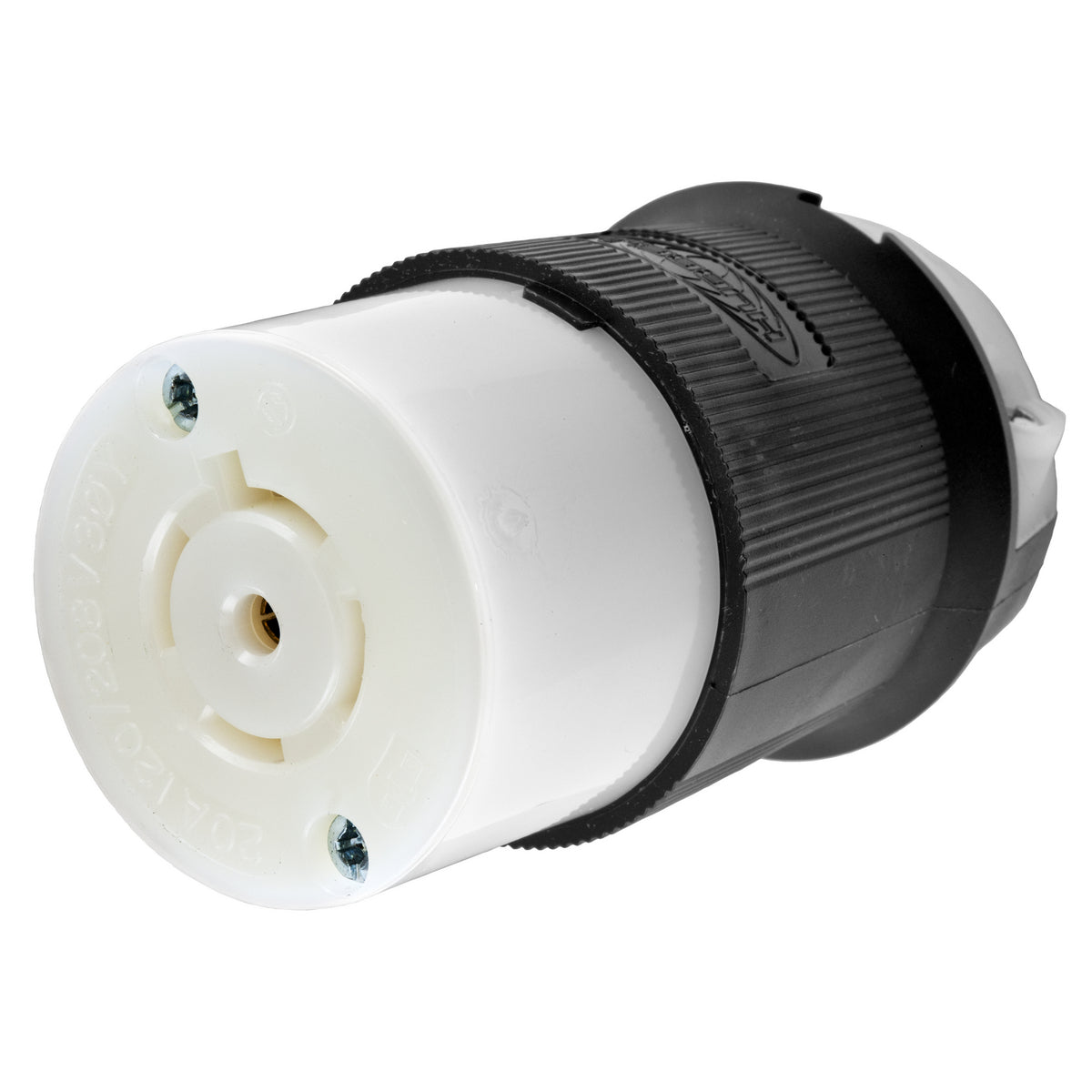

Hubbell HBL2513 20A 3PhY 120/208V AC Twist-Lock INSULGRIP Black Nylon Connector Body

Product Description

The Hubbell Wiring Device HBL2513 is a 20 amp twist-lock connector used in three-phase systems. This connector operates at 120/208 volts AC and features a durable nylon body. The design includes four poles and five wires with a grounding feature. This connector is ideal for heavy-duty industrial applications.

• Meets NEMA L21-20R standards.
• Constructed with a screw terminal for secure connections.
• Compatible with wire sizes from 16 to 8 AWG.

Product Highlights

Designed for rugged environments, this connector provides reliable performance for industrial applications.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• MPN: HBL2513

Technical Specifications

• Current Rating: 20 A
• Voltage Rating: 120/208 V
• Material: Composite Nylon

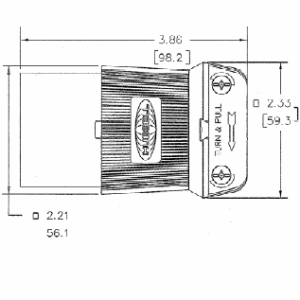

• Width: 2.500 in
• Height: 3.86 in
• Length: 2.33 in
• Weight: 0.40 lb

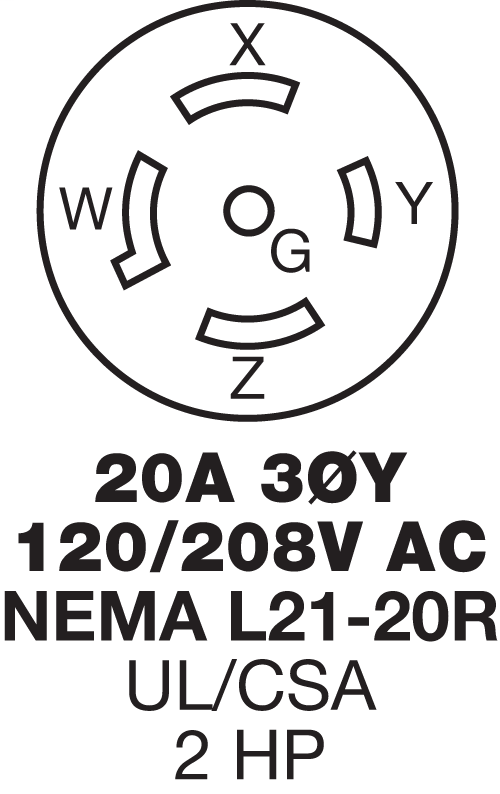

• NEMA Rating: L21-20R
• Number of Poles: 4
• Number of Wires: 5
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
