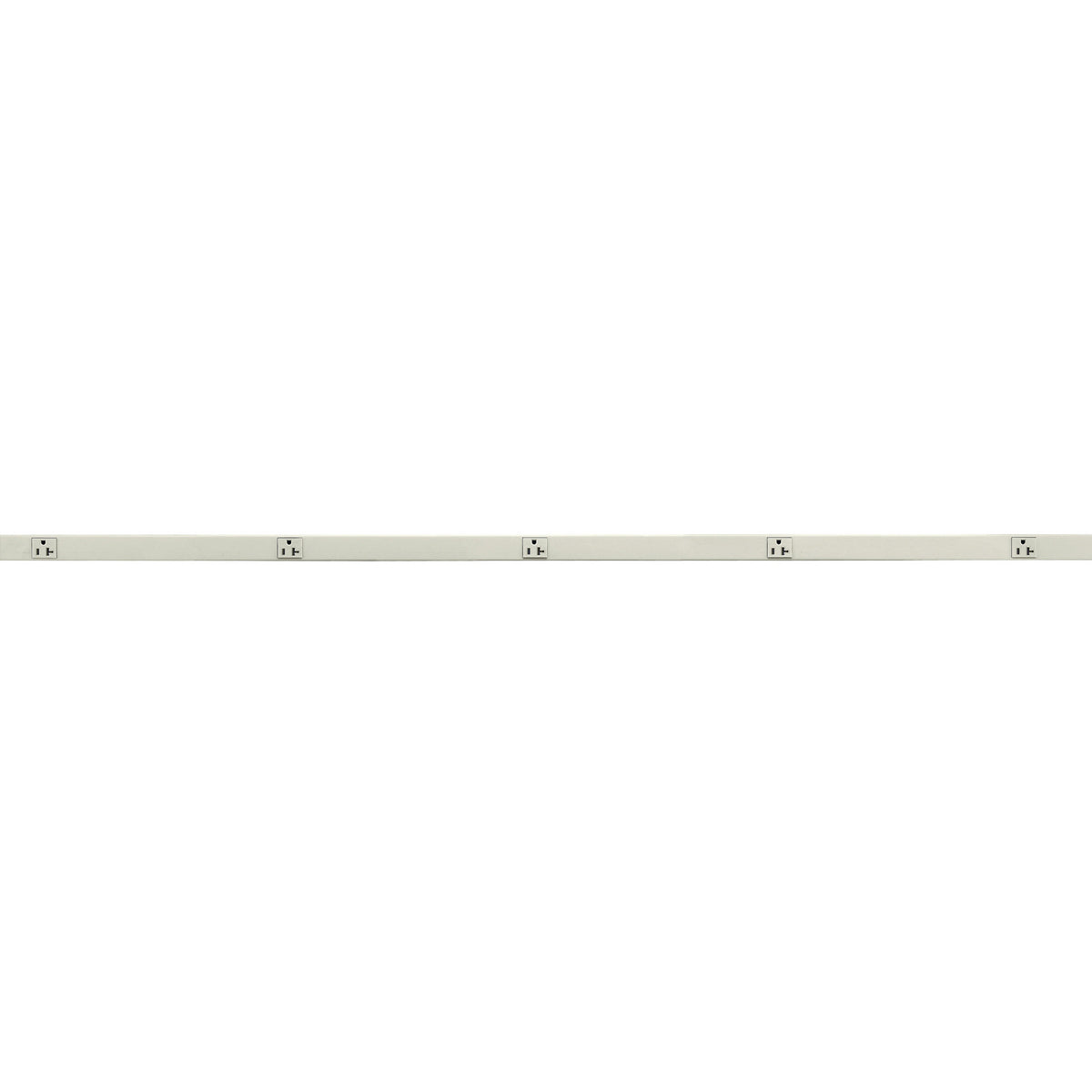

Hubbell HBL24GB612IV Metal PlugTrak, 20A 125V, 1 Circuit, 6 Receptacle, 6 feet Length

Product Description

The HUBBELL HBL24GB612IV Metal PlugTrak is a pre-wired raceway with 6 receptacles, designed for perimeter wiring. Operating at 125V and 20A, it features insulation displacement wiring for superior wire retention. Ideal for indoor use, this PlugTrak offers a convenient solution for power distribution with multiple spacing configurations.

• Multiple spacing configurations
• Gray or ivory scratch resistant finish
• Insulation displacement wiring provides superior wire retention

Product Highlights

Pre-wired PlugTrak with 6 receptacles, 20A, 125V, 6' length, suitable for various indoor applications.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: HBL24GB612IV
• Country of Origin: US - United States

Technical Specifications

• Catalog Number: HBL24GB612IV
• Item Type: Pre-Wired PlugTrak
• Number of Receptacles: 6
• Performance: Electrical - Receptacle Rating - NEMA 5-15R and NEMA 5-20R Mechanical - Wire - #12 AWG Stranded Copper
• Series: Metal
• PlugTrak Amperage: 20A
• PlugTrak Length: 6 Foot
• Receptacle Face: Thermoplastic
• Spacing: 12 Inch OC
• Wiring Type: Hard Wired
• Style: Standard
• Type: Single Circuit
• Current / Amperage Rating: 20 A
• Wire Size: #12 AWG THHN
• Industry Standard(s): CSA Standard C22.2 no. 62 E253976 /E253830 /E253833 UL Standard UL 5
• Brand: PlugTrak
• Application: Indoor Applications
• Material: Steel
• Amperage Rating: 20A
• Frequency Rating: 60 Hz
• Rated Voltage: 125V
• Height: 1 in.
• Width: 2 in.
• Cable Size: #12AWG
• Enclosure: NEMA 1
• Environmental Conditions: Indoor Use Only
• EU RoHS Indicator: Y
• Mounting: Screw Mount
• Mounting Type: Threaded
• Number of Outlets: 12
• Outlet Center Distance: 12 in
• Outlet Configuration: 1-Circuit
• Outlet Rating: 20 A, NEMA 5-15R/5-20R
• Outlet Type: Single
• Phase: 1
• Receptacle: Pre-Wired
• Standard: CSA Standard C22.2 no. 62;E253976 /E253830 /E253833;UL Standard UL 5
• Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantUL 5 File No. E253976/E253830/E253833CSA C22.2 No. 63 File No. LR87514NEC Article 381TIA ApprovedEIA-569BNEMA 1
• Sub Brand: Metal Raceway
• Voltage Rating: 125 V
• Wattage: 2,500 W
• Manufacturer: Hubbell
• Standard & Approvals: UL 5, File No. E253976, E253830, E253833, CSA C22.2 No. 63 File No. LR87514, NEC Article 381, TIA, EIA-569B, ARRA, Buy American Act, RoHS Compliant, NEMA 1
