Hubbell HBL24GB512IV Metal PlugTrak 20A 125V 5 feet Length

Product Description

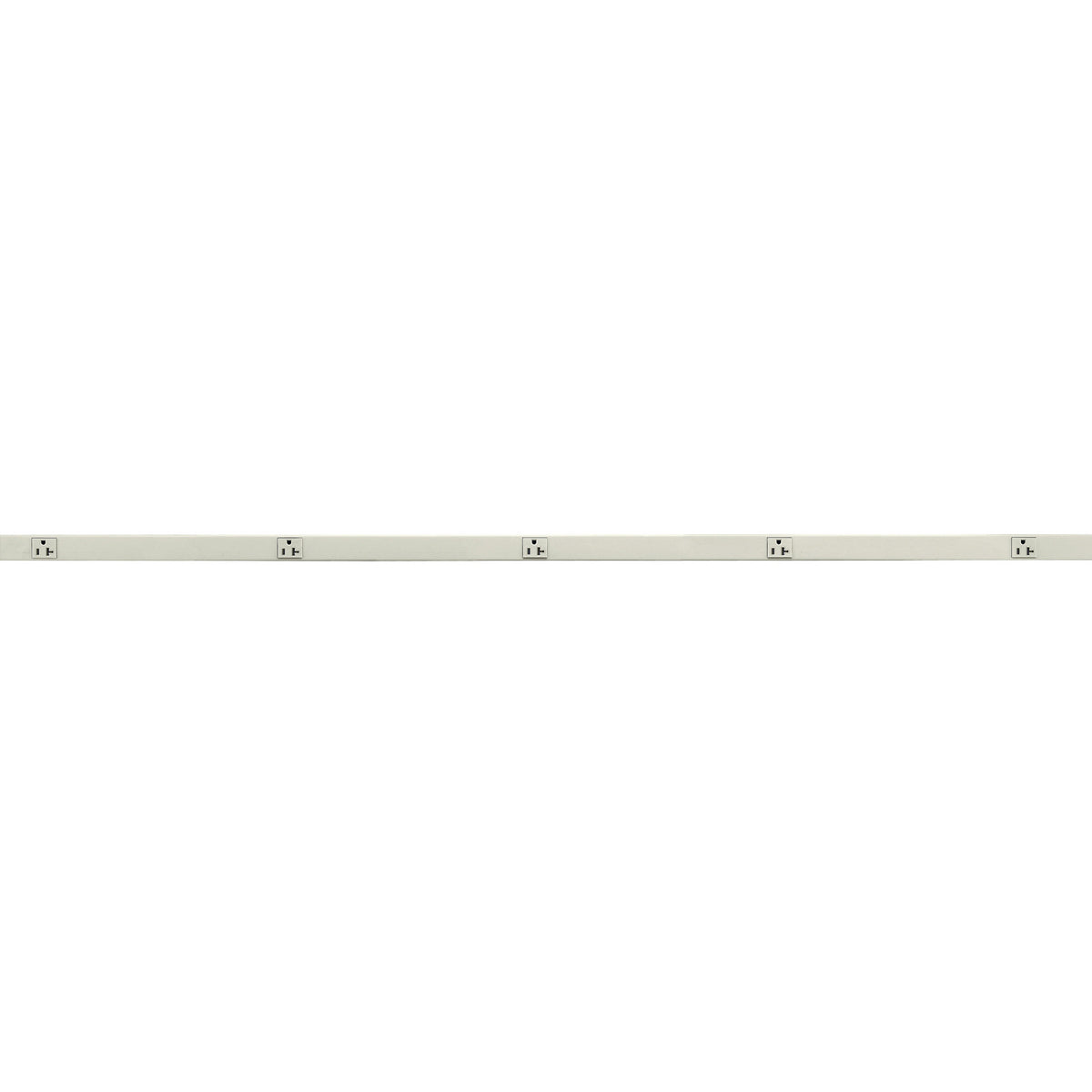

The HUBBELL HBL24GB512IV Metal PlugTrak is a pre-wired raceway designed for perimeter wiring. Rated at 20A and 125V, this single-circuit PlugTrak features 5 receptacles and a 5-foot length. It offers insulation displacement wiring for superior wire retention and a scratch-resistant finish.

• Multiple spacing configurations
• Scratch resistant finish
• Insulation displacement wiring provides superior wire retention

Product Highlights

The HBL24GB512IV PlugTrak is ideal for indoor applications requiring a convenient and reliable power distribution solution.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: HBL24GB512IV
• Country of Origin: US - United States

Technical Specifications

• Catalog Number: HBL24GB512IV
• Color: Ivory
• Item Type: Pre-Wired PlugTrak
• Number of Receptacles: 5
• Performance: Electrical - Receptacle Rating - NEMA 5-15R and NEMA 5-20R Mechanical - Wire - #12 AWG Stranded Copper
• Series: Metal
• Specifications: Number of Receptacles - 5 Singles PlugTrak Amperage - 20A PlugTrak Length - 5 Foot Receptacle Face - Thermoplastic Spacing - 12 Inch OC Wiring Type - Hard Wired
• Style: Standard
• Type: Single Circuit
• Length: 5 ft
• Current / Amperage Rating: 20 A
• Wire Size: #12 AWG THHN
• Industry Standard(s): CSA Standard C22.2 no. 62 E253976 /E253830 /E253833 UL Standard UL 5
• Brand: PlugTrak
• Application: Perimeter Wiring
• Material: Steel
• Frequency Rating: 60 Hz
• Rated Voltage: 125V
• Height: 1 in.
• Width: 0.75 in.
• Cable Type: THHN/Stranded Copper
• Number of Outlets: 12
• Outlet Center Distance: 12 in
• Outlet Rating: 20 A, 60 Hz
• Outlet Type: Single Receptacle
• Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantUL 5CSA C22.2 No. 62E253976E253830E253833
• Voltage Rating: 125 V
• Manufacturer: Hubbell
• Amperage: 20 Amp
• Applications: For Perimeter Wiring, Indoor Applications
• Cable Size: #12AWG
• Conductor Size: 12 AWG
• Current: 20 Amp
• Enclosure: NEMA 1
• NEMA: 5-15R, 5-20R
• Power Rating: 2500 W
• Wattage: 2500 Watt
• Sub Brand: PlugTrak
• Environmental Conditions: Indoor Use Only
• Model: HBL24GB512IV
• UPC: 783585214894
