Hubbell HBL2433SW HUB 3P 4W 3PH 480V 20A Shrouded Conn

Product Description

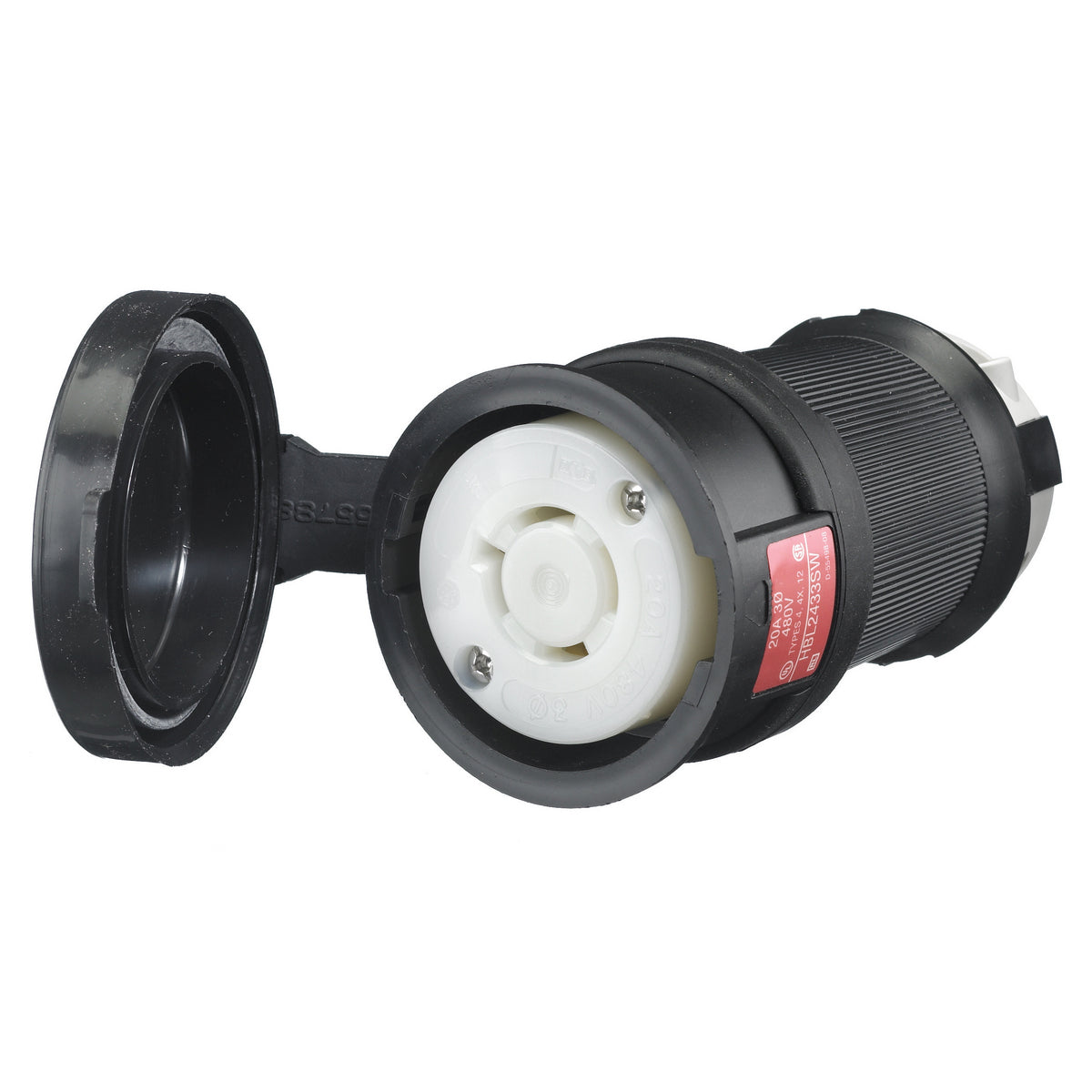

The Hubbell HBL2433SW is a three-phase female grounding shrouded standard watertight cord mount connector. It operates at a voltage of four hundred eighty VAC and handles a maximum current of twenty A. This connector is suitable for heavy-duty industrial applications.

• UL type 4X environmental seal protects the connection during use.
• Engineered thermoplastic housing is impact resistant for demanding environments.
• Includes a closure cap for protection when the device is not in use.

Product Highlights

Designed for tough conditions, this connector features superior cord grip design to prevent excess strain on terminations.

Product Information

Standard Information

• Manufacturer: Hubbell
• MPN: HBL2433SW

Technical Specifications

• Amperage Rating: 20 A
• Application: Heavy Duty Industrial Applications
• Color: Black/White
• Cord Diameter: 0.35 to 1.15 inches
• Dimensions: 2.75 x 2.75 x 4.4 inches
• Enclosure: IP66
• Horsepower: 5 hp
• Material: Composite
• NEMA Rating: L16-20R
• Number of Poles: 3
• Number of Wires: 4
• Standards/Approvals: RoHS Compliant, CSA C22.2 No. 42/0.6, Federal Specification W-C-596, NEMA WD1/WD5, UL 498
• Temperature Rating: -40 to 75 degrees C
• Terminal Type: Pressure Screw
• Type: 3-Phase Female Grounding Shrouded Standard Watertight Cord Mount
• Voltage Rating: 480 VAC
