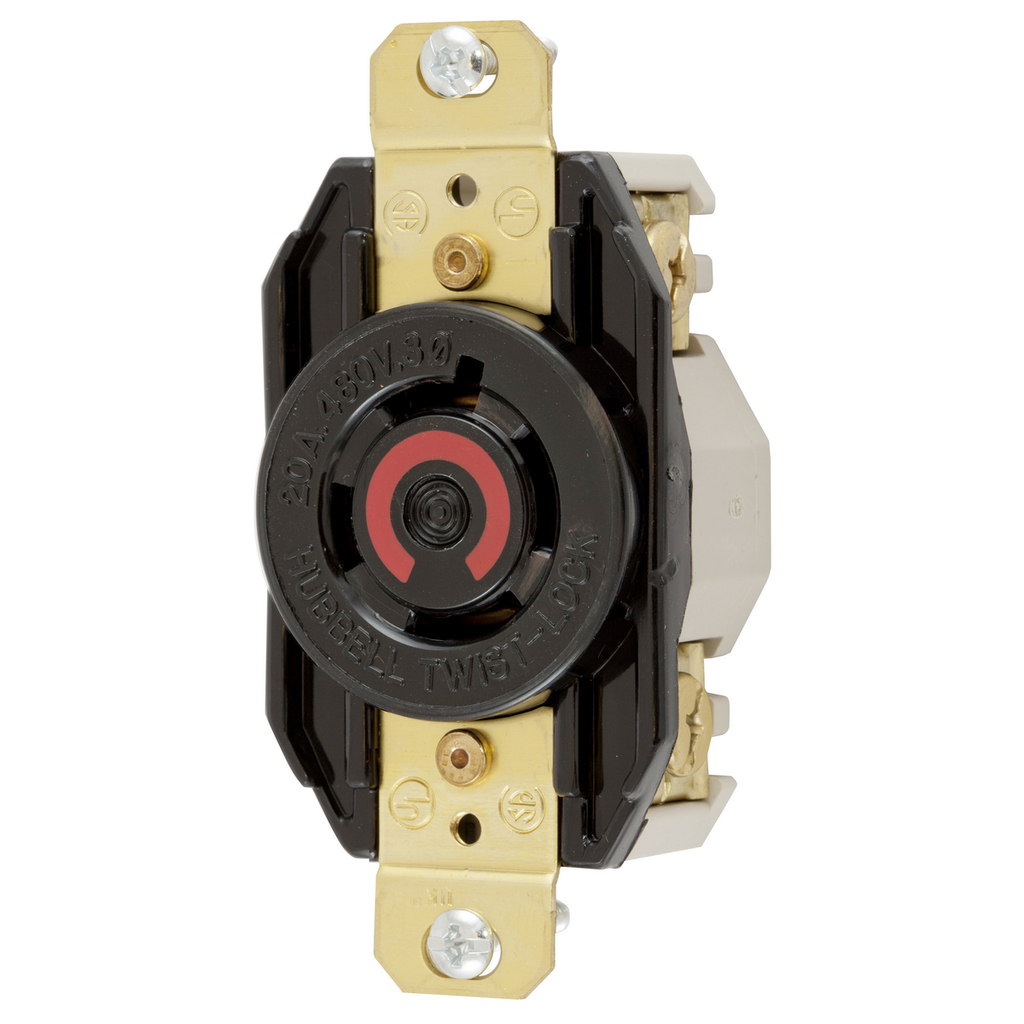

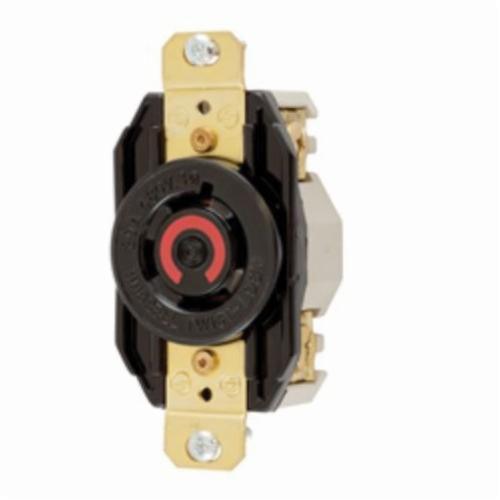

Hubbell HBL2430 HWD Twist Lock Receptacle 3-Phase 20A 480 VAC

Product Description

The Hubbell Wiring Device-Kellems HBL2430 is a Twist-Lock receptacle designed for reliable use in heavy duty applications. This 3-phase locking receptacle operates at 480 VAC and handles up to 20 A.

• Constructed for industrial use with a robust black nylon face.
• Compatible with NEMA L16-20R rating for secure connections.
• Suitable for back and side wiring via screw terminals.

Product Highlights

This receptacle is ideal for connecting motors, generators, and other high-demand devices in industrial settings.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• MPN: HBL2430

Technical Specifications

• Type: 3-Phase Heavy Duty Single Screw Mount
• Voltage Rating: 480 VAC
• Amperage Rating: 20 A
• Horsepower: 5 hp
• Number of Poles: 3
• Number of Wires: 4
• Material: Composite/Thermoplastic
• Enclosure Rating: IP20
• Operating Temperature: -40 to 75 degrees C
• Dimensions: 3.28 in H x 1.7 in W x 1.23 in D
