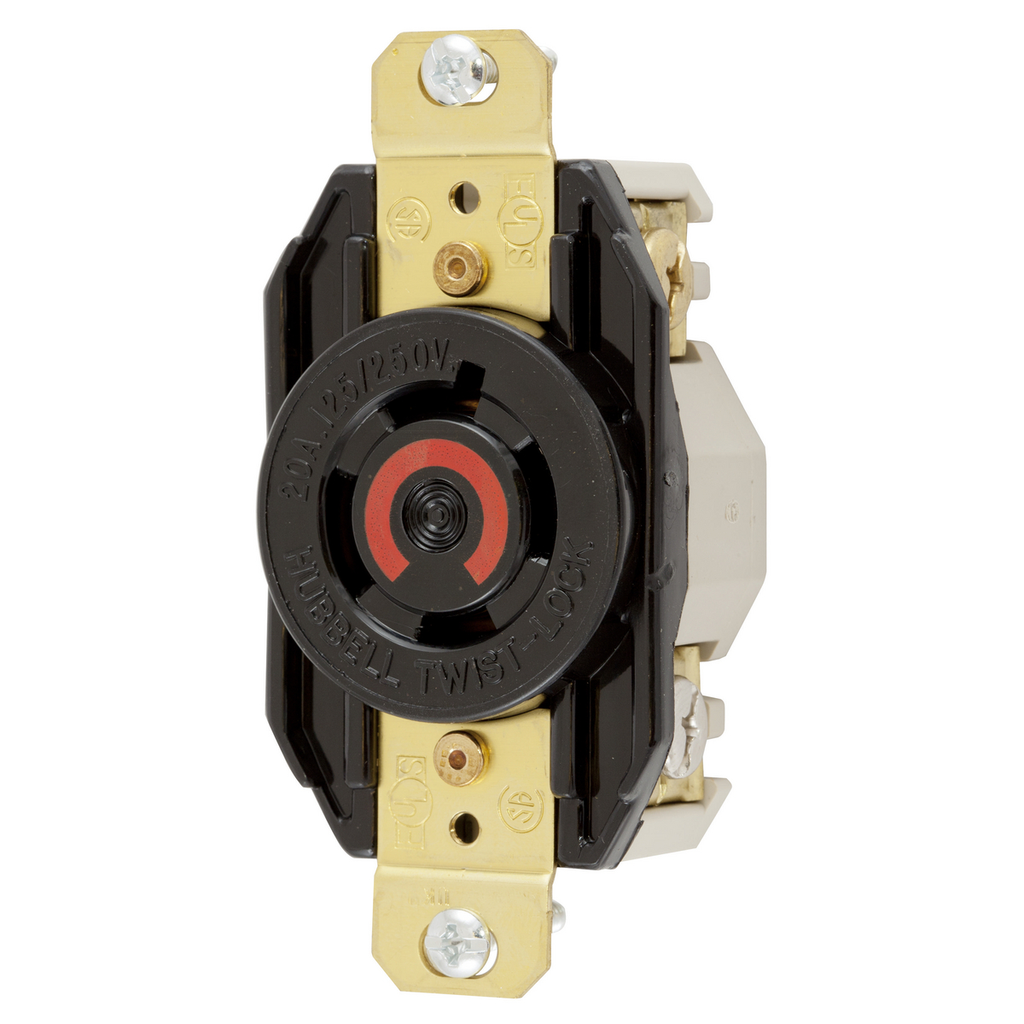

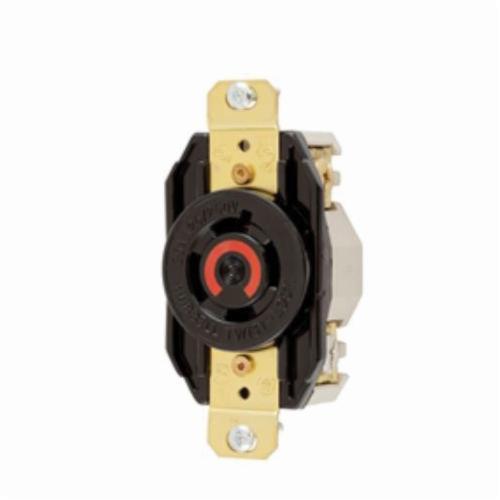

Hubbell HBL2410 20A 125/250V AC Twist-Lock Black Nylon Single Flush Receptacle

Product Description

The Hubbell HBL2410 is a 20 Amp, 125/250 Volt AC twist-lock receptacle designed for industrial use. It includes a three-pole, four-wire grounding configuration and complies with the NEMA L14-20R standard. This receptacle features a nylon face that provides durability and back and side wiring options for installation flexibility.

• Capacity of 20 Amp and supports voltage of 125/250 Volt.
• Constructed with a thermoplastic body offering robust performance.
• Facilitates quick connections with screw terminals.

Product Highlights

This receptacle is suitable for heavy-duty industrial applications, making it ideal for use in manufacturing and commercial settings.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Manufacturer: Hubbell Wiring Device

Technical Specifications

• GTiN: 00783585235738

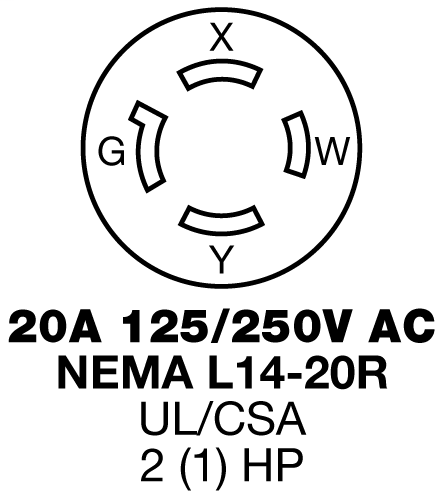

• NEMA Rating: L14-20R
• Weight: 0.25 lb

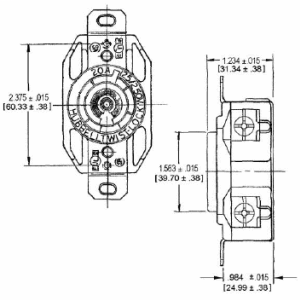

• Width: 2 inches
• Height: 1.23 inches
• Length: 3.28 inches
• Material: Thermoplastic
• Current Rating: 20 Amp
• Voltage Rating: 125/250 Volt
• Wattage: 5000 Watt
• Number of Wires: 4-Wire Grounding
• Number of Poles: 3 Pole
• Operating Temperature: -40 degrees C
• Environmental Conditions: Indoor Dry Unless Protected by Additional Means
