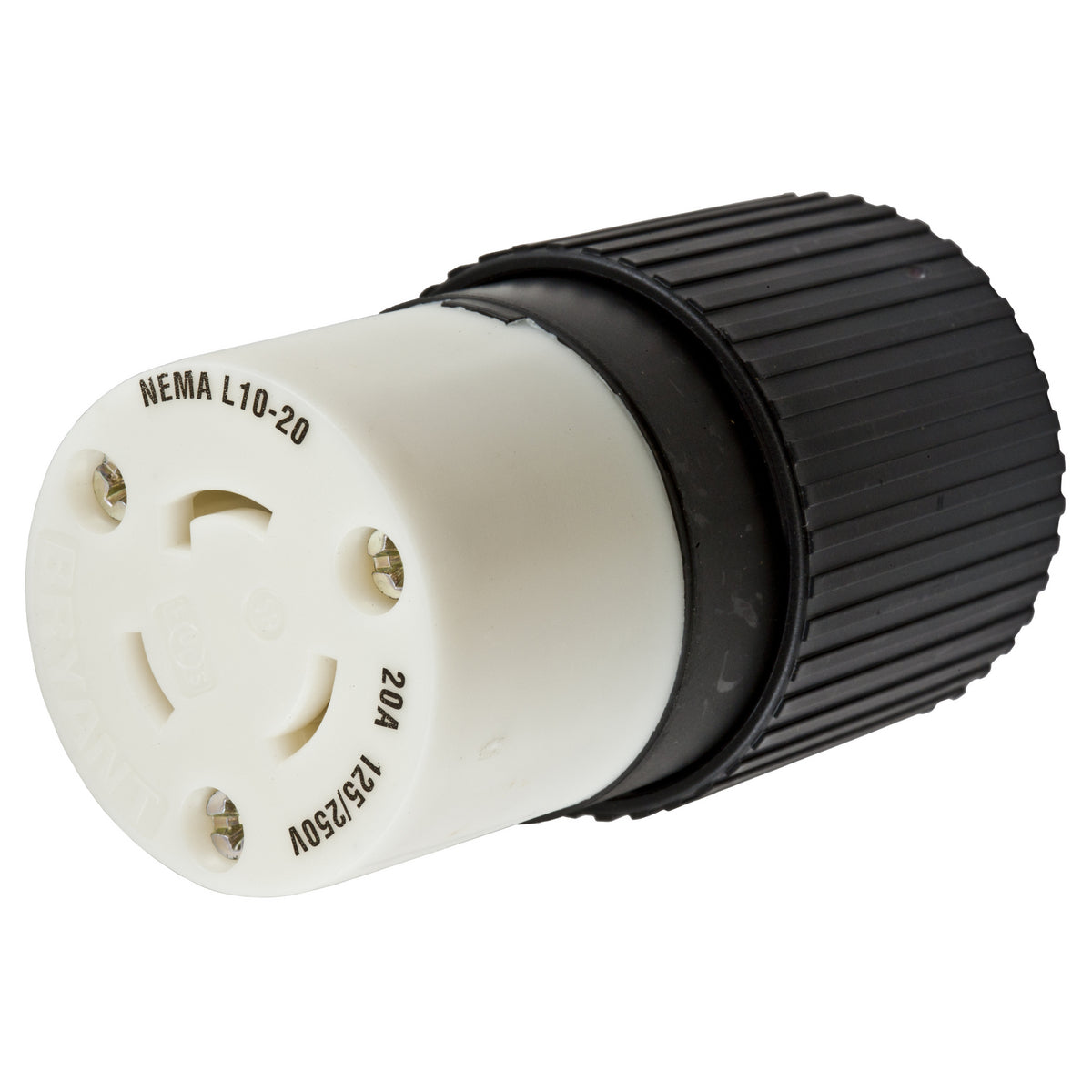

Hubbell HBL2363 Hubbl LKG Conn, 20A 125/250V, L10-20R, B/W 78358512895

Product Description

The Hubbell HBL2363 is a locking connector rated for 20 Amps and designed for applications requiring heavy duty electrical connections. This model operates at 125/250 volts, making it suitable for various industrial and commercial settings. Its imperative features include a three-pole design and insulation designed to withstand demanding environments.

• Compatible with cords ranging from 0.3 inches to 1.05 inches in diameter.
• Suitable for use in indoor environments unless additional protection is provided.
• Constructed with nylon material for added durability.

Product Highlights

The HBL2363 features a superior cord grip design and a clear wire entry for easy installation. The integral dust shield prevents contaminants from entering the wiring chamber.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78358512895

Technical Specifications

• Amperage Rating: 20 A
• Application: Heavy Duty Industrial Applications
• Color: Black/White
• Cord Diameter: 0.3 to 1.05 inches
• Enclosure: IP20
• Grade: Industrial
• Horsepower: 1 hp
• Material: Nylon
• NEMA Rating: L10-20R
• Number of Poles: 3
• Number of Wires: 3
• Standards/Approvals: RoHS Compliant, UL 498, CSA C22.2 No. 42/0.6, UL94HB Flammability Rating, Federal Specification WC596, NEMA WD1/WD5
• Temperature Rating: -40 to 75 degrees C
• Terminal Type: Pressure Screw
• Type: Heavy Duty Female Non-Grounding Insulated Standard Cord Mount
• Voltage Rating: 125/250 VAC
