Product Description

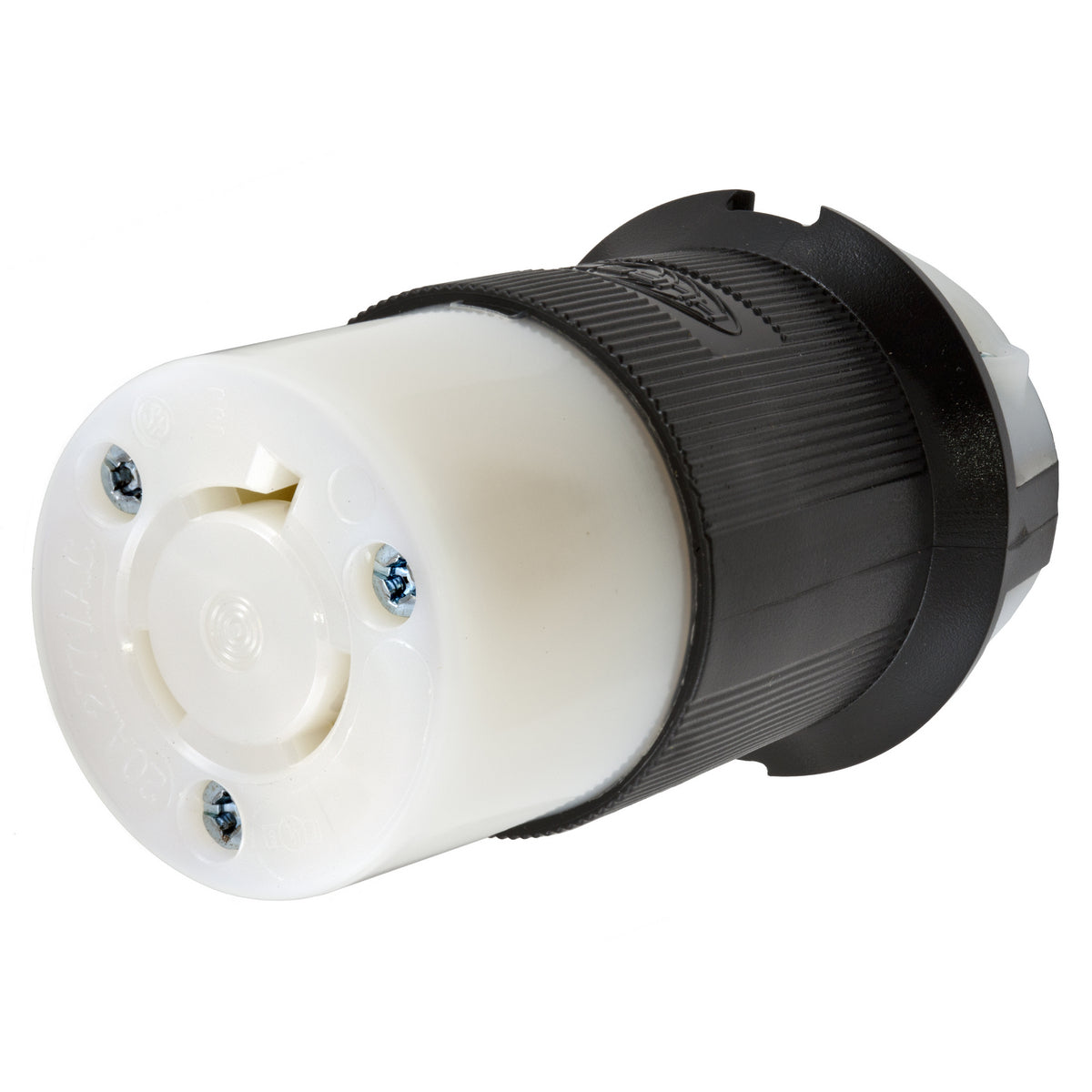

The Hubbell HBL2333 is a locking connector designed for heavy-duty applications. This grounding connector is shrouded and watertight, maintaining a secure connection in commercial and industrial setups. It features a voltage rating of two hundred seventy-seven VAC and can handle up to twenty amperes, making it suitable for various electrical tasks.
- Compatible with 2 poles and 3 wires
- Suitable for cord diameters between 0.36 to 0.93 inches
- Temperature rated from negative forty to seventy-five degrees Celsius
Product Highlights
This locking connector features a nylon body with a pressure screw terminal, ensuring durability and excellent performance.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
UPC: 78358503792
Technical Specifications
-
Voltage Rating: 277 VAC
-
Amperage Rating: 20 A
-
Horsepower: 2 hp
-
Number of Poles: 2
-
Number of Wires: 3
-
Material: Nylon
-
Color: Black/White
-
Dimensions: 2.26 x 2.26 x 3.86 in
-
Temperature Rating: -40 to 75 deg C
-
NEMA Rating: L7-20R
-
Enclosure: NEMA 4/4X/12/IP66
-
Standards/Approvals: UL 498, CSA Certified, RoHS Compliant
