Product Description

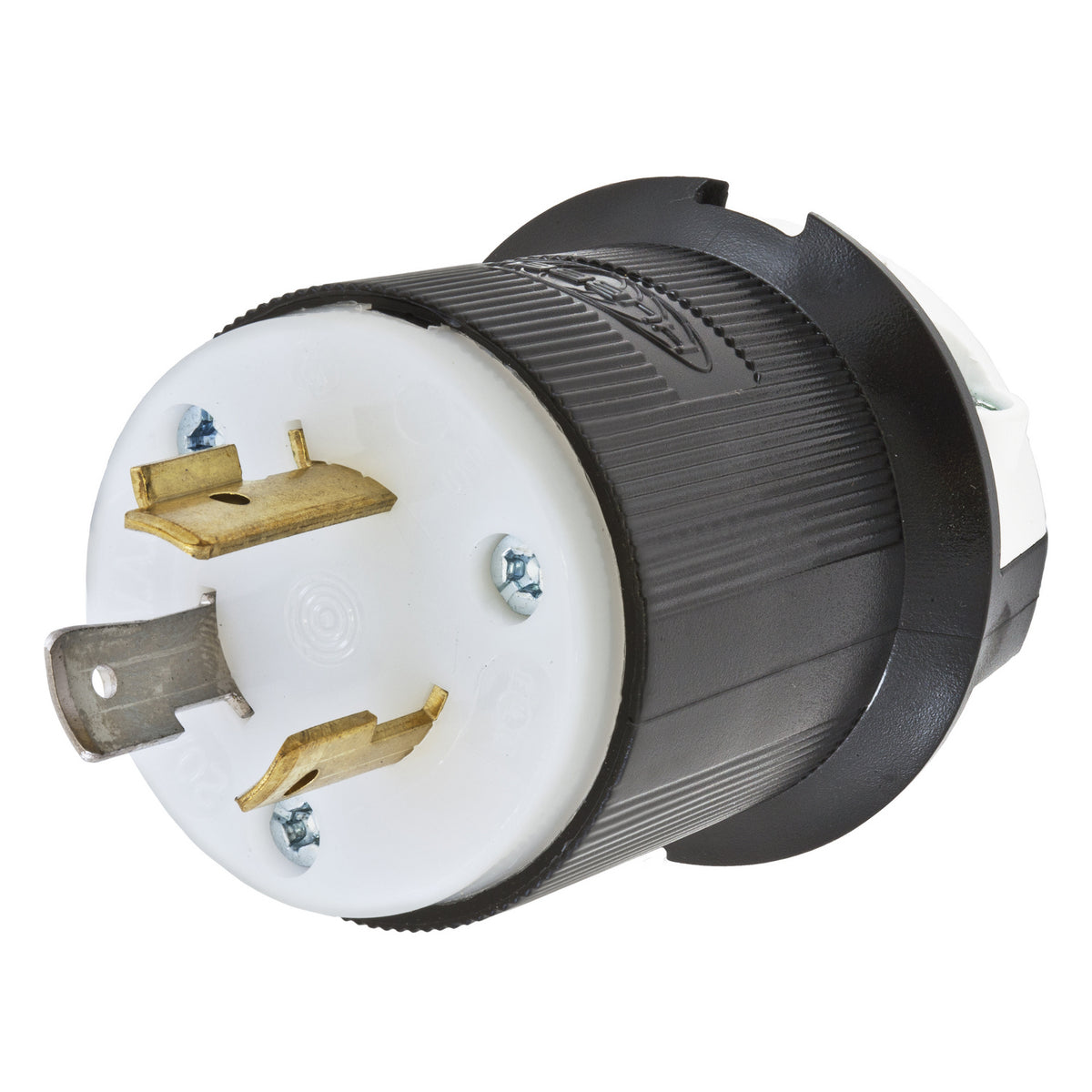

The Hubbell HBL2331 is a wiring device designed for power connection applications. It features a twist-lock design and is suitable for use in various industrial settings. This locking plug operates at 277 VAC and supports up to 20 A with two poles and three wires. With a temperature rating of negative forty to seventy-five degrees Celsius, it ensures reliable operation under demanding conditions.
- Durable nylon construction
- IP20 enclosure rating
- Compatible with cords ranging from 0.36 to 0.93 inches in diameter
Product Highlights
This device is an industrial-grade product that meets safety standards including UL 498 and RoHS compliance. The locking mechanism provides secure connectivity in applications requiring reliable power transfer.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
Manufacturer Part Number: HBL2331
Technical Specifications
-
Amperage Rating: 20 A
-
Application: Power Connection Applications
-
Color: Black/White
-
Cord Diameter: 0.36 to 0.93 inches
-
Dimensions: 2.26 x 2.26 x 2.75 inches
-
Enclosure: IP20
-
Grade: Industrial
-
Horsepower: 2 hp
-
NEMA Rating: L7-20P
-
Number of Poles: 2
-
Number of Wires: 3
-
Temperature Rating: -40 to 75 degrees Celsius
-
Terminal Type: Screw
-
Voltage Rating: 277 VAC
