Product Description

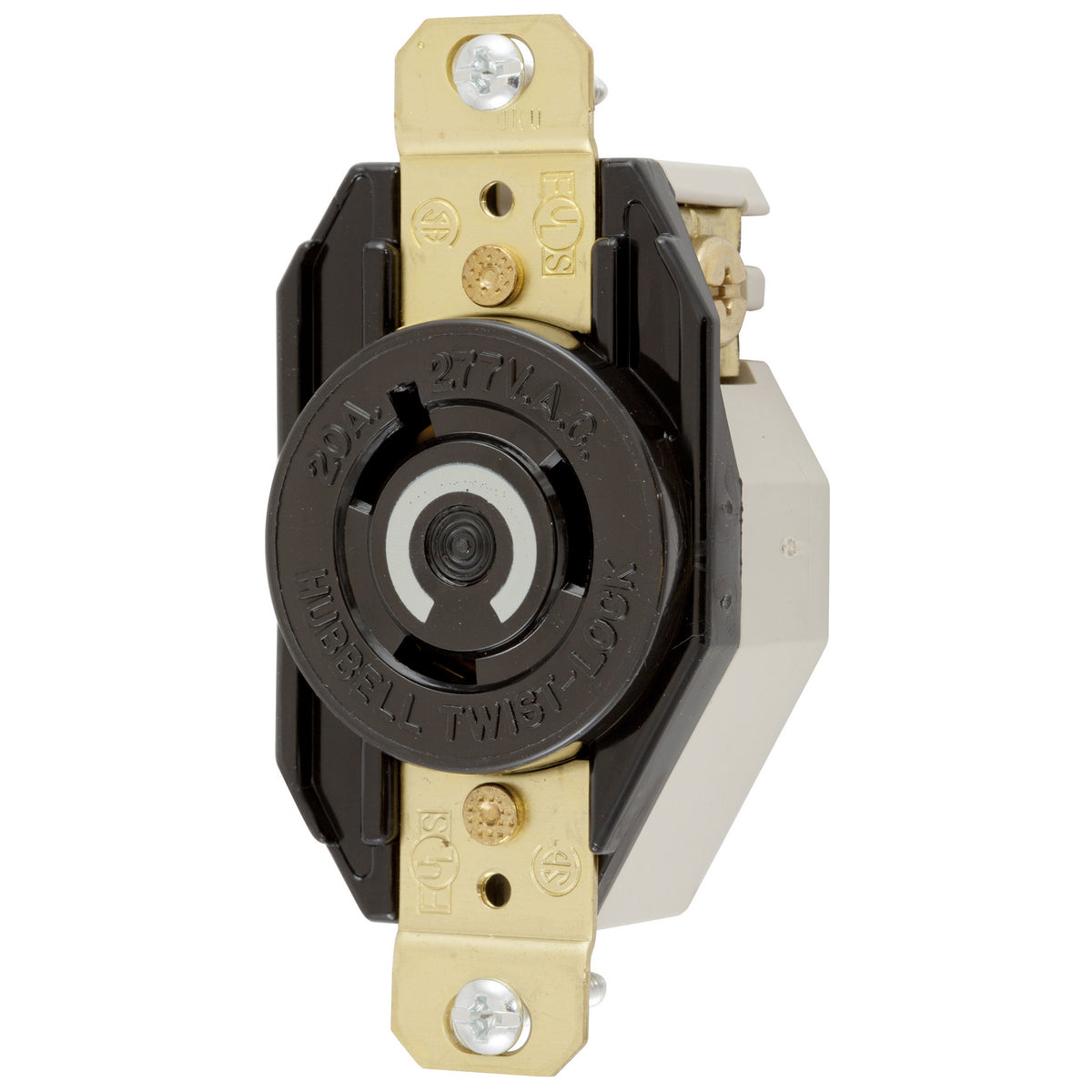

The Hubbell HBL2330 is a locking receptacle designed for secure electrical connections. This product features a two pole and three wire configuration. It operates at twenty amperes and can handle up to two horsepower at a voltage of two hundred seventy-seven volts AC.
- Rated for heavy-duty applications
- Compatible with 16 to 8 AWG stranded copper wire
- Includes a nylon polyester base for durability
Product Highlights
This receptacle is ideal for industrial environments and ensures a secure grounding connection. It meets NEMA 4/4X/12/IP20 standards and can operate in temperatures ranging from negative forty to seventy-five degrees Celsius.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
MPN: HBL2330
Technical Specifications
-
Amperage Rating: 20 A
-
Voltage Rating: 277 VAC
-
Horsepower: 2 hp
-
Number of Poles: 2
-
Number of Wires: 3
-
NEMA Rating: L7-20R
-
Enclosure: NEMA 4/4X/12/IP20
-
Material: Nylon
-
Temperature Rating: -40 to 75 deg C
-
Dimensions: 3.28 x 1.7 x 1.23 in
